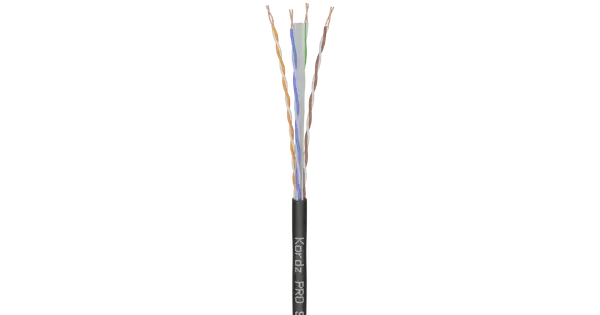

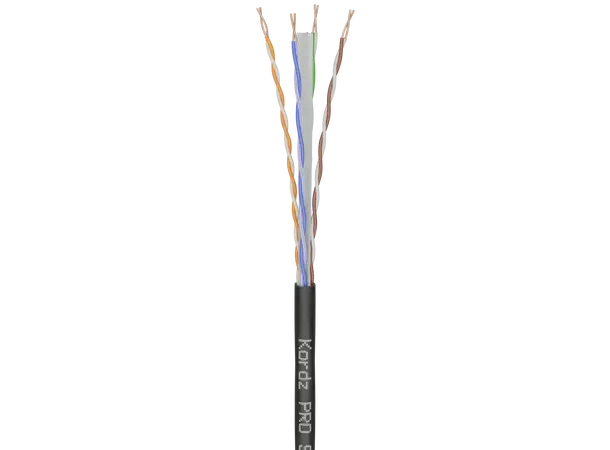

PRO SlimCat Cat6 U/UTP Outdoor Network Cable

Delivering all the power and performance of Cat6 outdoor cable in half the size, the Kordz PRO SlimCat Outdoor Cat6 Network Cable revolutionises outdoor connectivity and goes where other cables can’t. The slim and flexible, yet robust design supports PoE++ for high-performance power and data transmission, making it perfect for tight pathways and discrete installations.

Ideal for IP cameras, Wi-Fi access points, and smart doorbells, it features a black PE UV-stabilised jacket engineered to withstand harsh external conditions and complies with EU, UK, and Australian standards. It works seamlessly with existing PRO SlimCat system components and comes backed by Kordz’ 5-Year Warranty.

Product Outline

• UV-stabilised PE jacket compliant with EU, UK, and AU standards for outdoor use
• Fully compatible with existing PRO SlimCat system components
• Reduced bundle sizes that are half the cross-sectional area of 23/24 AWG network cable bundles
• Performs to industry standards and is fully featured, including PoE++ up to 50m
• Conveniently packaged on a 305m drum
• Slim, flexible design enabling discreet installations and dense cable pathways
• Engineered to meet the demands of modern outdoor PoE applications
• Kordz quality with 5-Year Warranty

Technical Info

Construction

• Conductor: 28AWG solid OFC 0.338 +0/-0.02mm
• Insulation: Polyethylene, 0.61±0.1 mm
• Twisting: 4 twisted pairs of conductors
• Twisted Pair Colour Code: 1: white-blue / blue 2: white-orange / orange 3: white-green / green 4: white-brown / brown
• Shielding: Unshielded (U/UTP)
• Cable Lay Up: Non-metallic cross separator
• Jacket Material: UV-resistant Polyethylene-based composite
• Outer Diameter: 3.9 ± 0.5 mm

Mechanical

• Minimum Bend Radius: Without load =16.0 mm; with load =32.0 mm
• Temperature Range: During operation -20°C to 60°C | During installation 0°C to 50°C

Electrical

• DC Resistance: Max. 23.6 O/100 m at 20°C
• Resistance Unbalance: Max. 5% at 20°C
• Insulation Resistance (500V): Min. 5000 MO/km at 20°C
• Mutual Capacitance: Max. 5.6 nf/100 m at 1 kHz
• Capacitance Unbalance (Pair to Ground): Max. 330 pf/100 m at 1 kHz
• Nominal Velocity of Propagation: Nom. 67%
• Test Voltage (DC, 1 min): 1 kV / 1 min
