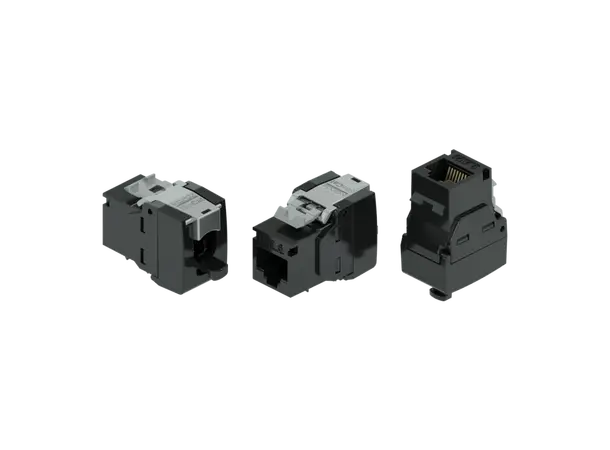

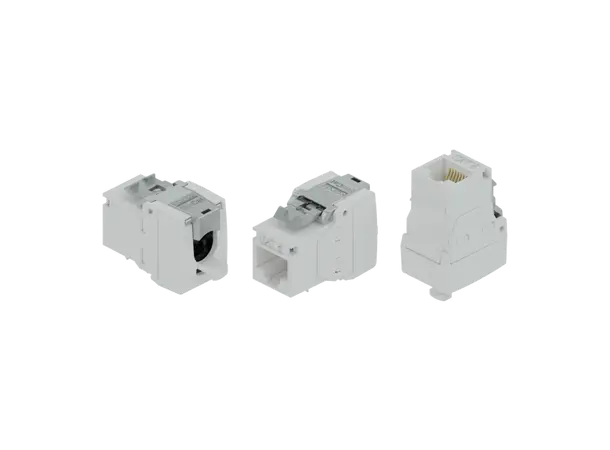

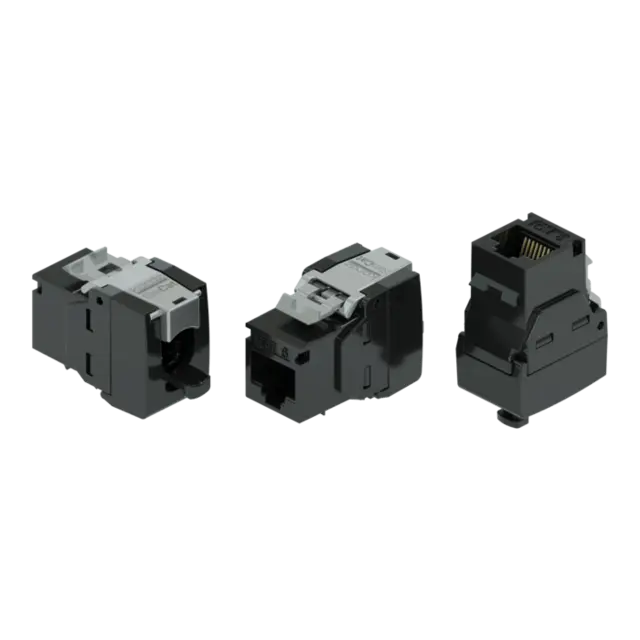

Kordz PRO SlimCat™ Cat6 Keystone RJ45 Socket

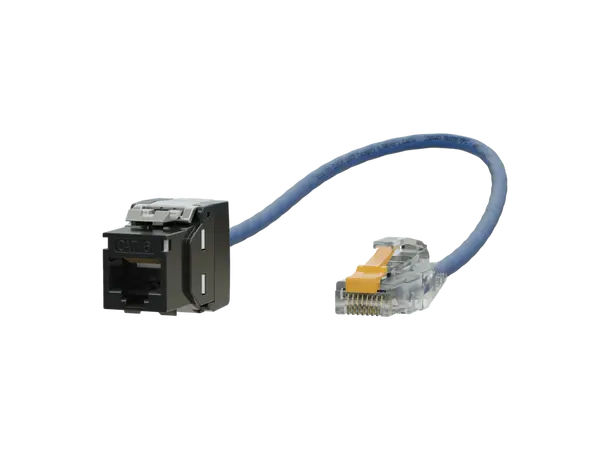

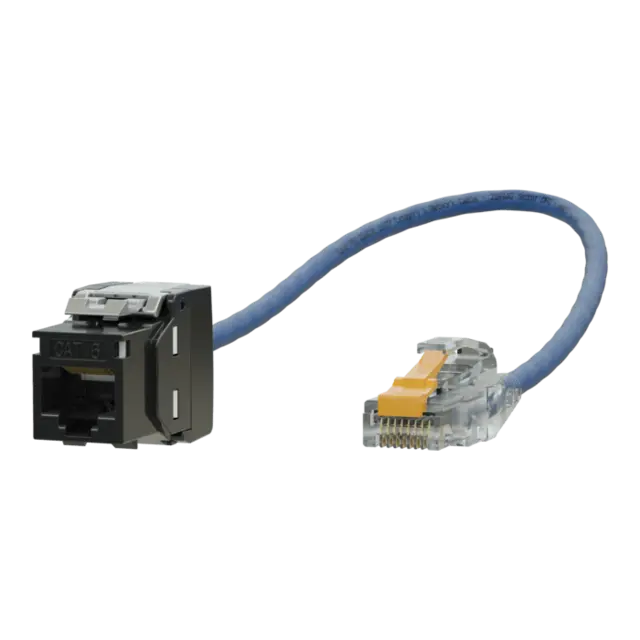

The Kordz PRO SlimCat™ Cat6 Keystone RJ45 Socket is designed specifically for use with the Kordz PRO SlimCat Network Cable, as part of the multi-award-winning PRO SlimCat™ Network Cable System. It enables professional integrators to deliver ANSI/TIA-568.2-D Cat6 permanent link performance up to 50 metres.

Featuring an ABS clamshell and metal latching mechanism, Kordz PRO SlimCat Keystones make installation easier, support PoE++ at 100W, and fit standard keystone panel cut-outs. Match with Kordz PRO SlimCat RJ45 Crimp Connectors and terminate it with the Kordz ONE Series Crimping Tool for a complete Kordz ecosystem that delivers ‘Connectivity Assured’.

Product Outline

• CE Pro Top New Technology Award
• Sound & Video Contractor’s Best of Show
• Enables delivery of ANSI/TIA-568.2-D Cat6 permanent link performance up to 50m when paired with Kordz PRO SlimCat™ Network Cables
• Contacts and wire manager customised for 28AWG conductors
• Easy to terminate with metal latching mechanism
• ABS clamshell design
• IEEE802.3bt 100W PoE++ capable
• UL94 V-0 fire-rated
• Eco-friendly packaging

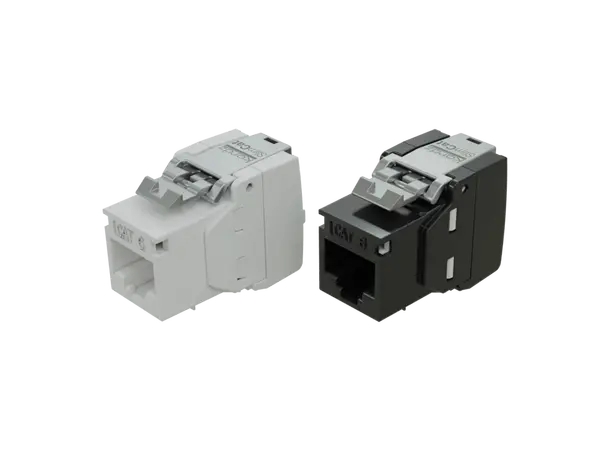

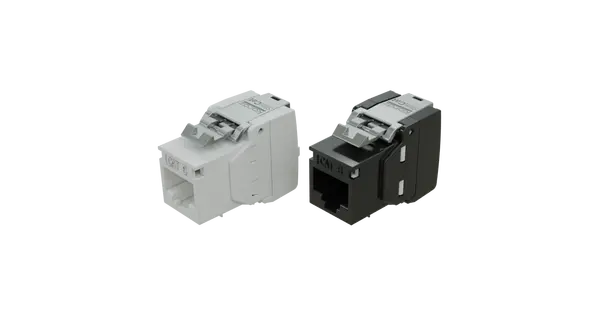

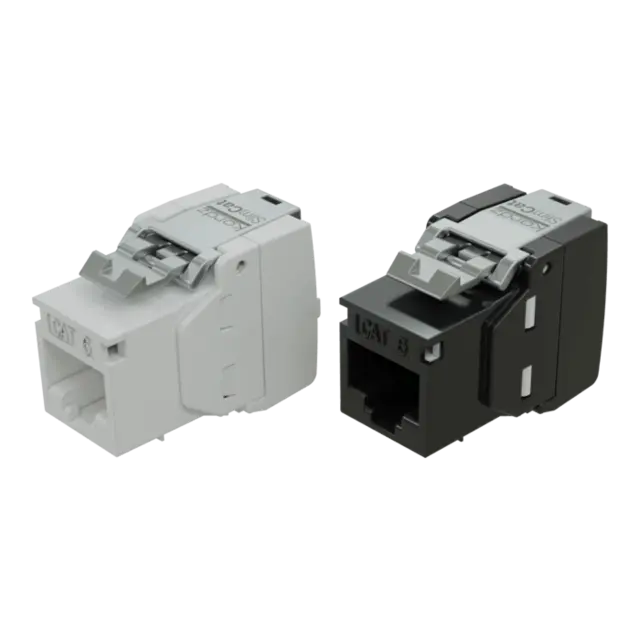

• Available in black and white
• Lifetime warranty

Technical Info

General Information

• Guaranteed Performance Category: Category 6
• Applicable Standards: ANSI/TIA-568-C.2
• Housing Material: Polycarbonate
• Flammability Rating: UL 94 V-0
• Contact Material: Copper
• Contact Plating IDC: Phosphor bronze, Tin Plated
• Contact Plating RJ45: Gold Plating 50µ” [1.27µm]
• Housing Colour: White / Black
• Shielding Type: Unshielded
• Operating Temperature: -40° to 66°C

Mechanical

• Keystone Body Length: 37.33mm | 14.7in
• Keystone Body Width: 17.10mm | 6.7in
• Keystone Body Height: 23.68mm | 9.3in
• Panel Mating Height: 16.10mm | 6.3in
• Panel Mating Width: 14.50mm | 5.7in

Electronic

• Voltage/Current rating UL Applications: 125 Volts AC / 1.5 Amps
• Dielectric Withstanding Voltage: 1500 Volts DC / AC Peak
• Contact Resistance: = 20mO
• Insulation Resistance: = 500MO
• RJ45 Cycle: 750 times
• Insertion IDC: 20 times
• Wire Gauge: 28AWG
• Conductor Diameter: Max: 8.5mm Ø
• Cable Jacket Diameter Max: 6.5mm Ø
