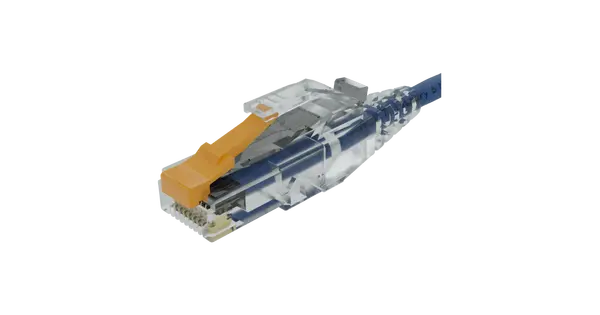

Kordz PRO SlimCat™ RJ45 Crimp Connector and Strain Relief

The Kordz PRO SlimCat™ RJ45 Crimp Connector is designed specifically for use with the Kordz PRO SlimCat™ Network Cable, as part of the multi-award-winning PRO SlimCat™ Network Cable System. It features an innovative composite construction that incorporates a transparent body and a durable snap-proof nylon latch.

The Strain Relief features an optional locking pin to prevent accidental disconnects. This connector is rated for IEEE802.3bt PoE++ at 100W. Match it with Kordz PRO SlimCat Keystone RJ45 Sockets and terminate it with Kordz ONE Series Crimping Tool for a complete Kordz ecosystem that delivers ‘Connectivity Assured’.

Product Outline

• CE Pro Top New Technology Award
• Sound & Video Contractor’s Best of Show
• Enables delivery of ANSI/TIA-568.2-D Cat6 performance up to 50m when paired with Kordz PRO SlimCat™ Network Cables
• Durable snap-proof nylon latch
• Transparent polycarbonate body for termination ease
• Tinted wire manager for handling ease and insertion verification
• Optional strain relief available featuring a removable locking pin
• IEEE802.3bt 100W PoE++ capable
• UL94 V-0 fire-rated
• Eco-friendly packaging
• Lifetime warranty

Technical Info

General

• Guaranteed Performance Category: Category 6
• Applicable Performance Standards: ANSI/TIA-568.2-D
• Power over Ethernet Performance: IEEE 802.3bt PoE++ (max 100W)
• Power over Ethernet Tested Standards: IEC 60512-99-002
• Shielding Type: Unshielded
• Wiring Method: T568A | T568B

Dimensions

• Body Length: 22.50mm | 14.7in
• Body Width: 11.68mm | 6.7in
• Body Height: 6.6mm | 9.3in

Mechanical

• Housing Material: Polycarbonate
• Flammability Rating: UL 94 V-0
• Housing Colour: Transparent
• Contact Type: 3 Prongs, Solid / Stranded
• Gold Plating: 50µ”
• Liner: No Liner
