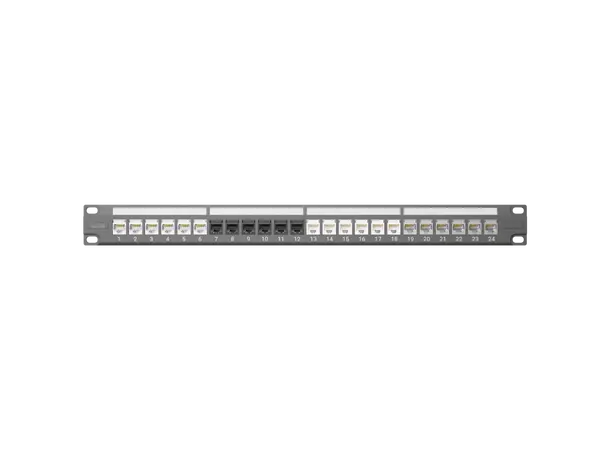

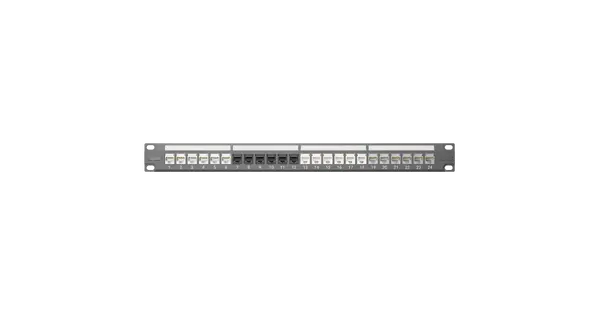

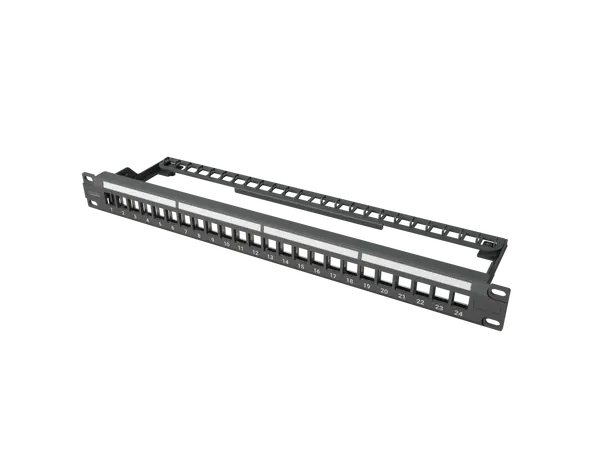

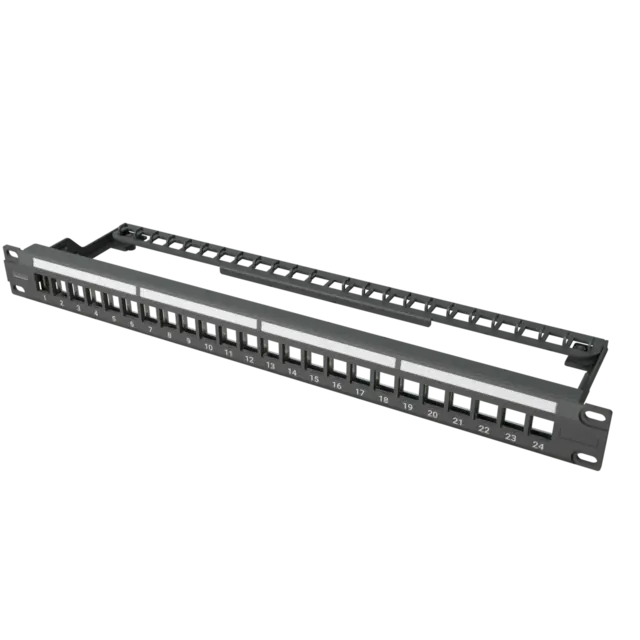

Kordz PRO Modular Keystone Patch Panel

The Kordz PRO Modular Keystone Patch Panel is a professional-grade, shielded 24-port modular panel engineered for seamless integration with Kordz keystones. Its powder-coated metal frame with a durable polycarbonate faceplate ensures long-lasting performance, while the optimised design enables hassle-free installation in professional rack environments.

Shielded for consistent signal integrity, this 1U panel minimises electromagnetic interference (EMI) for reliable connectivity. Supplied with all required screws, the PRO Patch Panel is the robust and convenient solution for structured cabling projects, completing a Kordz networking ecosystem that’s Connectivity Assured.

Product Outline

• Professional-grade 1U, 24-port modular keystone patch panel
• Powder-coated metal frame with durable polycarbonate faceplate
• Optimised for Kordz PRO and PRS keystones for seamless compatibility
• Shielded design with grounding wire included for consistent signal integrity
• Includes all required screws for quick and easy installation
• Ideal for high-density rack setups in residential and commercial environments
• Completes the Kordz networking ecosystem with Connectivity Assured

Technical Info

Features

• Ports Count: 24 ports
• Mounting Compatibility: 1 rack unit (1U), 482.6mm / 19in x 44.45mm / 1.75in
• Installation Environment: Indoors
• Suitable Keystone Form Factor: Any standard keystone (in accordance with EIA-310-D)
• Panel Shielding: Shielded (grounding wire must be attached)

Mechanical

• Panel Full Length: 44.2mm | 1.74in
• Panel Full Width: 482mm | 19in
• Panel Full Depth: 125.2mm | 4.93in
• Management Bar Length: 126mm | 4.96in
• Management Bar Width: 434.95mm | 17.12in
• Operating Temperature: -10° to 60°C
• Storage Temperature: -40° to 70°C
• Weight Panel: 0.51kg
• Weight Management Bar: 0.2kg
• Minimum Recommended Rack Depth: 126mm
• Grounding Wire: 18AWG stranded copper w/ PVC insulation, green/yellow, 440mm
• Patch Panel Material: SPCC with black powder coating, durable PC faceplate
• Keystone Mounting Plate Material: SPCC with zinc plating
• Management Bar Material: SPCC with black powder coating
