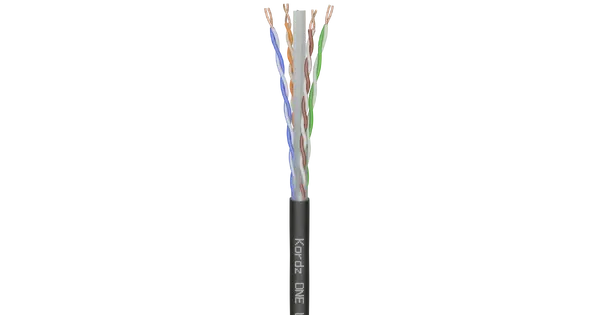

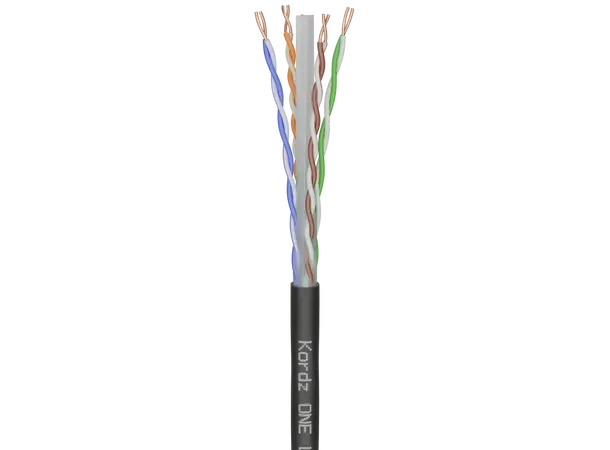

ONE Cat6 U/UTP Outdoor Network Cable

The professional-grade Cat 6 Outdoor Cable is designed and engineered for systems integrators. It’s robust, reliable, and easy to install, delivering ANSI/TIA-568.2-D compliant performance with durability. Featuring a UV-stabilised PE jacket, it withstands harsh weather conditions and meets EU, UK, and Australian standards.

Its compact 5.4mm diameter and solid OFC conductors ensure flexibility and easy handling. Supporting 1Gbps performance up to 100m and PoE++ up to 100W, this cable offers reliable connectivity for IP cameras, Wi-Fi access points, and other outdoor devices.

Product Outline

• UV-stabilised PE jacket compliant with EU, UK, and AU standards
• 24AWG solid OFC conductors for durable, reliable performance
• ANSI/TIA-568.2-D compliant for 1Gbps up to 100m and 10Gbps up to 55m
• Supports PoE++ up to 100W
• 4mm diameter for flexible and compact installation in tight spaces
• Ideal for connecting outdoor IP cameras, Wi-Fi access points, and smart doorbells
• Convenient Reel-in-Box packaging with metre-marked cable for precise installation
• Compatible with existing Kordz connecting components for integration ease
• Kordz quality with a 5-Year Warranty

Technical Info

Construction

• Conductor: 24AWG solid OFC 0.526 +0.02mm
• Insulation: Polyethylene, 0.91±0.1 mm
• Cable Lay Up: 4 twisted pairs of insulated conductors with cross separators
• Twisted Pair Colour Code: 1: white-blue / blue 2: white-orange / orange, 3: white-green / green 4: white-brown / brown
• Shielding: Unshielded (U/UTP)
• Jacket Material: UV-stabilized Polyethylene-based composite
• Outer Diameter: 5.4 +/-0.3 mm

Mechanical

• Bend Radius: Without load = 21.6mm / 0.85in, with load = 43.2mm / 1.70in
• Temperature Range: During Operation: -20°C to 60ºC | During Installation: 0°C to 50ºC

Electrical

• DC Resistance: max. 9.38 O/100 m at 20°C
• Resistance Unbalance: max. 5% at 20ºC
• Insulation Resistance (500V): min. 5000 MO/Km at 20°C
• Mutual Capacitance: max. 5.6 nf/100 m at 1 kHz
• Capacitance Unbalance (Pair to Ground): max. 330 pf/100 m at 1 kHz
• Nominal Velocity of Propagation: nom. 67% c
• Test Voltage: 1kV DC / 1 min
