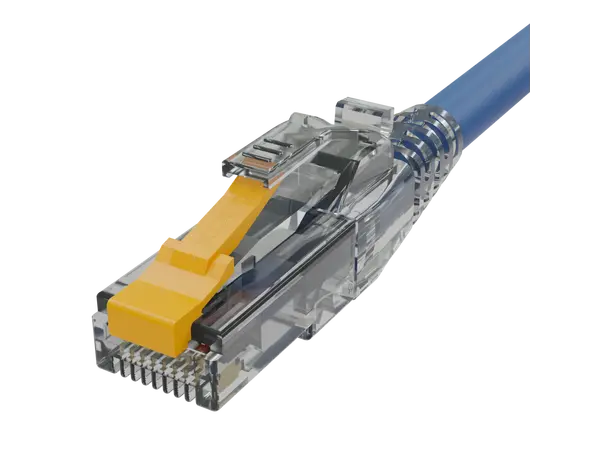

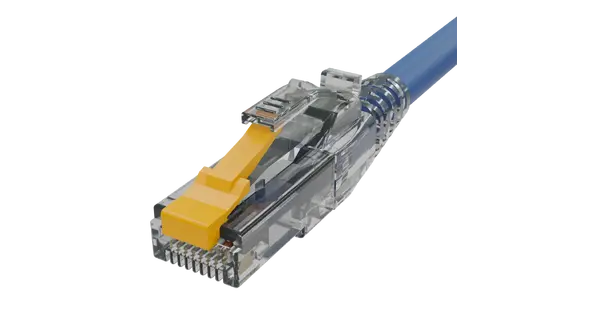

PRO 24AWG RJ45 Crimp Connector

Kordzify your Cat6 networking projects with the award-winning Kordz PRO 24AWG RJ45 Crimp Connector, engineered to deliver robust, long-lasting performance. It features an innovative composite construction that combines the snap-proof latch with a transparent body for ease of field termination. Pair it with the optional Strain Relief and Locking Pin for additional robustness and terminate with the ONE Series Crimping Tool. Rated for Cat 6 and PoE++ performance and backed by a Lifetime Warranty, PRO 24AWG RJ45 Crimp Connectors are the professional’s choice for reliable networking installations.

Product Outline

• Industry standard ANSI-TIA-568.2-D Category 6 & IEC11801 Class E connecting component performance
• Durable snap-proof nylon connector latch that can withstand over 2,000 bend cycles
• HDBaseT and PoE system certifiable termination solution

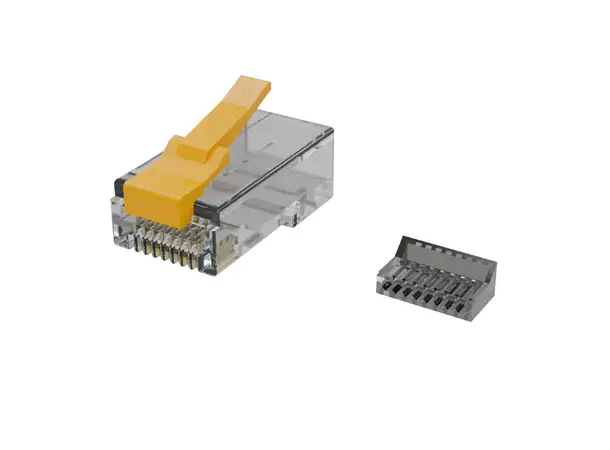

• Non-push through, two-piece construction with transparent connector body for termination ease
• Tinted wire-manager for handling ease and insertion verification

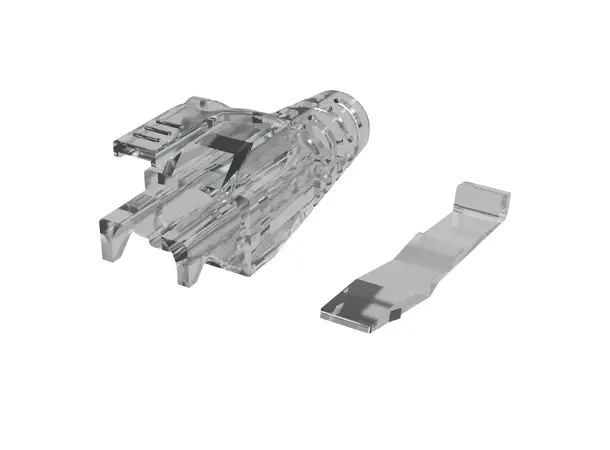

• Optional strain relief featuring a removable locking pin
• IEEE802.3bt 100W PoE++ capable
• UL94 V-0 fire-rated
• 100% recyclable packaging
• Lifetime Warranty

Technical Info

General

• Guaranteed Performance Category: Category 6
• Applicable Performance Standards: ANSI/TIA-568.2-D
• Power over Ethernet Performance: IEEE 802.3bt PoE++ (max 100W)
• Power over Ethernet Tested Standards: IEC 60512-99-002
• Shielding Type: Unshielded
• Wiring Method: T568A | T568B

Dimensions

• Body Length: 22.50mm | 0.89in
• Body Width: 11.68mm | 0.46in
• Body Height: 6.6mm | 0.26in

Mechanical

• Construction: Non-pushthrough body with pushthrough wire manager
• Housing Material: Polycarbonate
• Flammability Rating: UL 94 V-0
• Housing Colour: Transparent grey
• Contact Type: 3 Prongs (suits solid / stranded wires)
• Gold Plating: 50µ”
• Latch Material: Nylon composite
