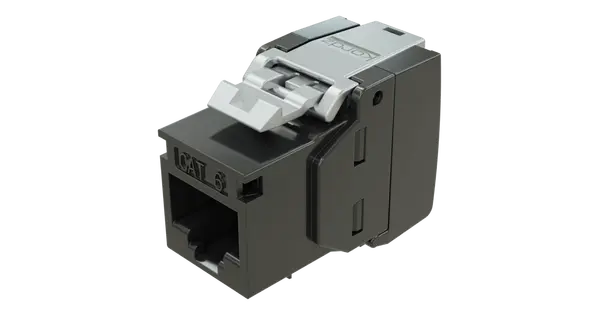

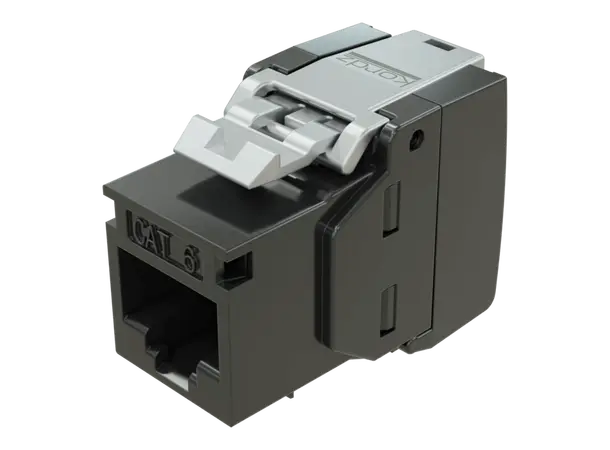

PRO Keystone RJ45 Socket

Keystone RJ45 Sockets perfectly complement Kordz ONE Series Bulk Category Cabling and give the professional integrator total confidence to deliver an end-to-end cabling solution. Featuring an ABS clamshell with a metal latching mechanism, Keystone RJ45 Sockets are very easy to fit. Match them with Kordz PRO Patch Cords for a complete Kordz ecosystem that delivers ‘Connectivity Assured’.

Product Outline

• ABS clamshell design

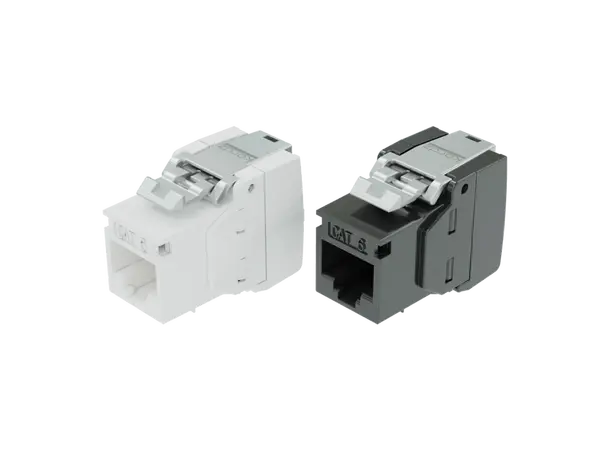

• Available in black or white
• Easy to terminate with latching mechanism
• 6 pieces per pack
• Sturdy and robust construction
• Manufactured with quality materials and using advanced manufacturing methods
• Backed by the Kordz Lifetime Guarantee

Technical Info

General Information

• Connector Part No.: T2R45S-C6XU-XX
• Guaranteed Performance Category: Category 6
• Applicable Standards: ANSI/TIA-568-C.2
• Housing Material: Polycarbonate
• Flammability Rating: UL 94 V-0
• Contact Material: Copper
• Contact Plating IDC: Phospher bronze, Tin Plated
• Contact Plating RJ45: Gold Plating 50µ” [1.27µm]
• Housing Colour: White / Black
• Shielding Type: Unshielded
• Operating Temperature: -40° to 66°C

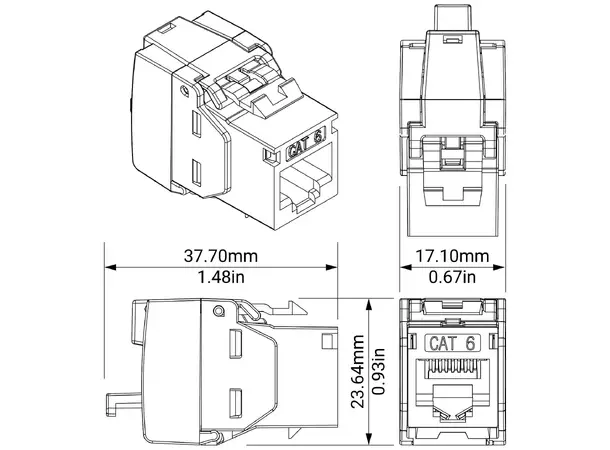

Mechanical

• Keystone Body Length: 37.33mm | 1.47in
• Keystone Body Width: 17.10mm | 0.67in
• Keystone Body Height: 23.68mm | 0.93in
• Panel Mating Height: 16.10mm | 0.63in
• Panel Mating Width: 14.50mm | 0.57in

Electronic

• Voltage/Current Rating UL Applications: 125 Volts AC / 1.5 Amps
• Dielectric Withstanding Voltage: 1500 Volts DC / AC Peak
• Contact Resistance: = 20mO
• Insulation Resistance: = 500MO
• RJ45 Cycle: 750 times
• Insertion IDC: 20 times
• Wire Gauge min/max: 26AWG to 23AWG
• Conductor Diameter max: 8.5mm Ø
• Cable Jacket Diameter max: 6.5mm Ø
