AT-04

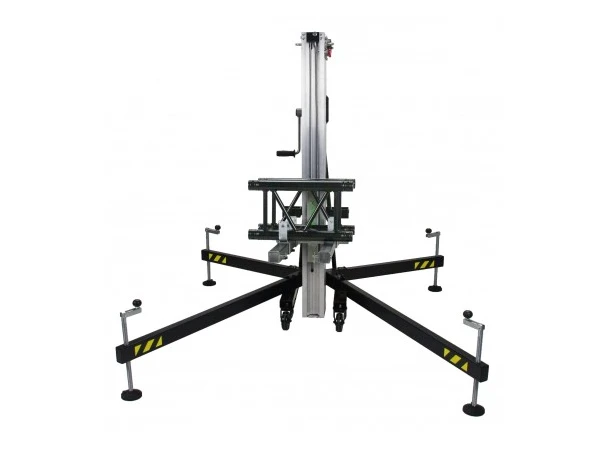

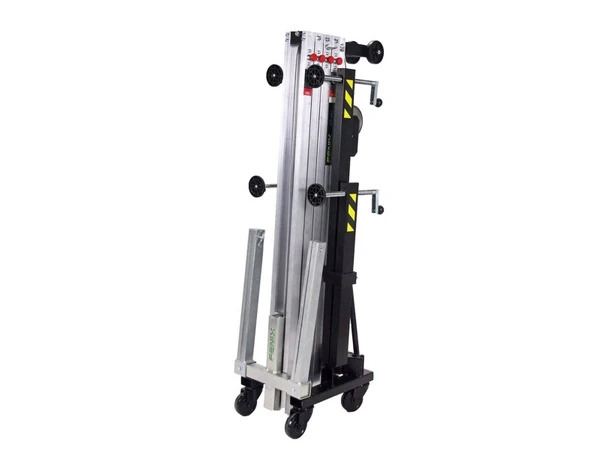

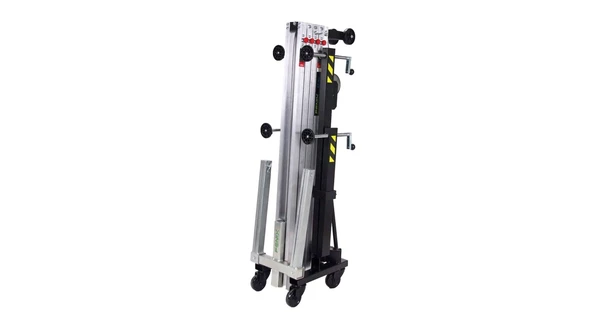

The AT-04 lifting tower is an efficient and versatile solution for lifting loads from the ground with ease. This front loading tower is made of strong aluminium, ensuring durability and light weight. With a maximum height of 5m and a maximum load of 200kg, the AT-04 is perfect for a variety of applications. From line array systems to trussing and LED screens, this tower offers exceptional performance on stage. Safety is a priority in the design of the AT-04. It incorporates a safety system with internal pendulum and external trigger in sections, providing additional protection during use. The AT-04 is equipped with a 900kg capacity winch, which allows for high durability and smooth loading. In addition, its galvanised steel cable meets the safety and strength standards necessary for reliable operation. With a weight of 93kg and a base equipped with heavy duty wheels, the AT-04 is easy to transport and mount in different locations. Its integrated spirit level guarantees precise vertical positioning, ensuring optimum performance. Whether you need to lift heavy loads at live events, audio-visual installations or festival set-ups, the AT-04 tower is a reliable choice. Take advantage of its robust design and superior functionality to simplify your lifting tasks and maximise efficiency in your daily work.

Technical Specifications

-Maximum height: 5m
-Maximum load: 200kg
-Height folded: 1,59m
-Weight: 93kg
-Winch: AL-KO 900 Compact 900kg
-Workspace: 1,45 x 1,49m
-Minimum charge: 25kg
-Material: Aluminium AL Si 6082 / T6
-Cable: Galvanized steel under EN 12385-4.
-Maximum cable load: 2.870kg
-Cable twisting resistance : 1.770N/mm²
-Cable diameter: 6mm
-Cable composition: 7×19+0
-Security system: Inner pendulum and external trigger in sections.
-Bubble level: to vertically adjust the tower.
-Closed base area: 0,38 x 0,48m
-Leg attachment: Safety pins

Details

Base Trigger: The base trigger allows you to anchor it to the base more agilely, using a push system that replaces the old and uncomfortable ring triggers.

Polyamide Plates: The plates are made of polyamide. This material offers greater resistance than metal and does not wear out. They rest on surfaces without damaging floors, carpets, etc.

Safety Triggers: The triggers prevent the load from collapsing. Additionally, they allow for selecting different heights and lifting all bars equally, distributing the load from the main bar to the last bar, which extends the tower’s lifespan.

Bubble Level: The location of the level at the base allows for stabilizing the tower more comfortably and accurately.

Reinforced Base: All our towers have a reinforced base capable of supporting heavy weights and high elevations.

Ring: Included in the AT and HERCULES series. It allows you to secure cables to any fixed surface or object to provide greater safety for the tower.

Transport Handle: Included in the AT and HERCULES series. It allows you to transport the tower both vertically and horizontally. Additionally, it serves as protection for the cable and the winch.

Roller: Included in the AT and HERCULES series. It allows you to transport the tower horizontally.

Winch: Our winches are manufactured by high-quality and reputable companies. They are durable and long-lasting. Additionally, they are oversized for greater safety and better cable pulling.

Fixation: Prevents the cart from moving during transport.

Safety Pendulum: Front-loading models include this internal safety system that automatically locks the tower when it detects a sudden drop in the profiles, in case of cable breakage or cut.

Trigger: Allows you to select different heights and distribute the load equally among all bars.
