Easy Lift Winch Stands – Doughty Engineering

A high specification wind up stand designed specifically to suit the demanding requirements of the entertainment industry. Safety features include a twin cable lifting system, self braking winch and a unique secondary auto lock. These stands have a maximum height of 3.8M and a WLL of 30Kg.

The top receiver accepts 16mm and 28mm diameter spigots plus has a foldaway 16mm Spigot. These can be paired with the T50503  Ø80mm Castor Kit.

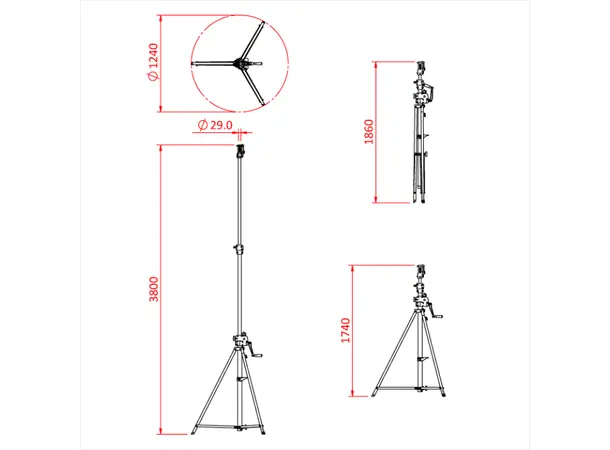

Specification

WLL:
30Kg

Colour:
Silver Black

Base Diameter:
Ø1.24m

Min Height:
1.72m

Max Height:
3.80m

Receiver:
Ø28mm Ø16mm

Spigot Diameter:
Ø16mm

Folded Length:
1.86m
