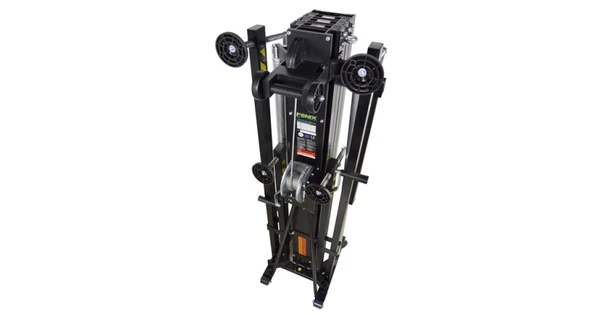

HERCULES 6.5

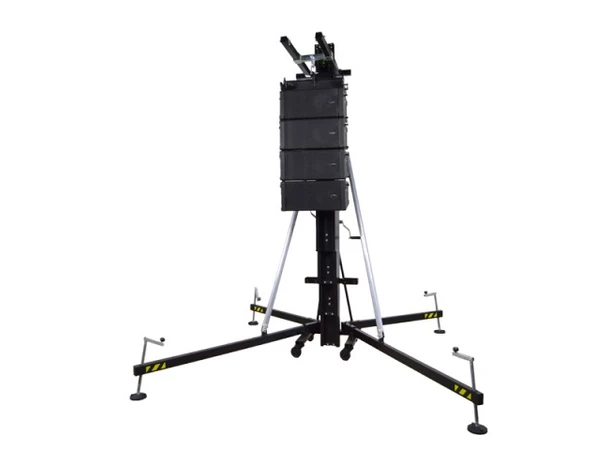

The HERCULES 6.5 lifting tower offers exceptional power and safety for large-scale events and productions. Made of durable aluminium and with a sleek black design, this tower is height adjustable, versatile and reliable. With a maximum load capacity of 350 kg and a maximum height of 6.50 metres, it is ideal for line array systems, large structures and LED screens. Its compact design, with a folded height of 1.69 metres, makes it easy to transport and store, making it perfect for touring events. Equipped with an advanced safety system, including internal pendulum, external trigger and safety triggers on the leg anchor, the HERCULES 6.5 ensures safe and stable lifting. The AL-KO Type OPTIMA winch and EN 12385-4 galvanised steel wire rope ensure smooth and reliable operation. In addition, its spirit level allows the vertical position to be precisely adjusted, guaranteeing a perfect installation. This tower is essential for audio, lighting and event professionals, providing the power and safety needed to carry out large-scale projects with efficiency and peace of mind. In short, the HERCULES 6.5 lifting tower is the ideal choice for those looking for a robust, reliable and versatile solution for lifting heavy and bulky equipment. Optimise your events and productions with the HERCULES 6.5 and experience superior performance in complete safety.
Technical Specifications
-Maximum height: 6,50m
-Maximum load: 350kg
-Height folded: 1,69m
-Weight: 198kg
-Winch: AL-KO Type OPTIMA 1150kg
-Workspace: 2,22 x 2,07m
-Minimum charge: 25kg
-Material: Aluminum alloy AL Si 6106 / T6
-Cable: Galvanized steel under EN 12385-4.
-Maximum cable load: 2.870kg
-Cable twisting resistance : 1.770N/mm²
-Cable diameter: 6mm
-Cable composition: 7×19+0
-Security system: Inner pendulum and external trigger in sections.
-Bubble level: to vertically adjust the tower.
-Closed base area: 0,52 x 0,62m
-Leg attachment: Safety pins
Details
Leg base trigger: The leg trigger allows it to be anchored to the base more quickly using a push system, replacing the old and uncomfortable ring triggers.
Polyamide plates: The plates are made of polyamide. This material offers greater resistance than metal and does not wear out. They rest on surfaces without damaging floors, carpets, etc.
Safety triggers: The triggers prevent the load from collapsing. They also allow selecting different heights and raising all bars evenly, distributing the load from the main bar to the last, which extends the tower’s lifespan.
Bubble level: The bubble level on the base allows for more comfortable and precise tower stabilization.
Reinforced base: All our towers feature a reinforced base that can support heavy weights and high elevations.
Ring: Included in the AT and HERCULES series. It allows cables to be secured to any surface or fixed object, providing greater security to the tower.
Winch: Our winches are manufactured by high-quality and well-known companies. They are durable and long-lasting. Additionally, they are oversized for greater safety and better cable traction.
Fixation: Prevents the carriage from moving during transport.
Safety pendulum: The front-loading models include this internal safety system, which automatically locks the tower when it detects a sudden fall of the profiles in case of cable breakage or cut.
Front braces: Provide greater stability and strength to the tower.
