Laser interactive display

• Flexible display options and sizes Cater for user needs in any working environment
• All-in-one interactive meeting display Combines multiple resources in one interactive collaboration device
• Increase productivity & agile working Share and display content from a range of devices simultaneously
• Sliding split screen Up to four displays in one image - project images from different sources
• Easy installation Quick set-up with auto-adjusting calibration function

Overview

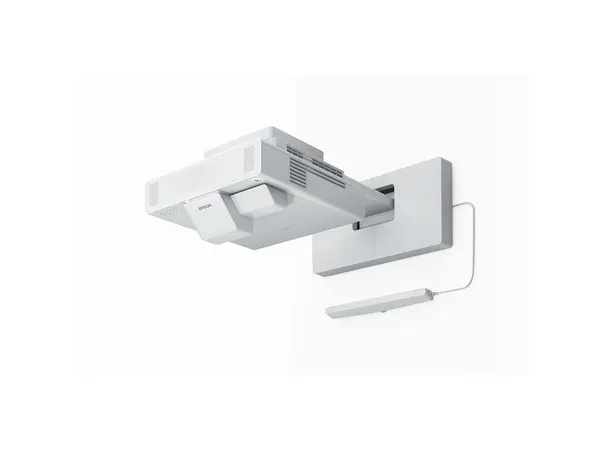

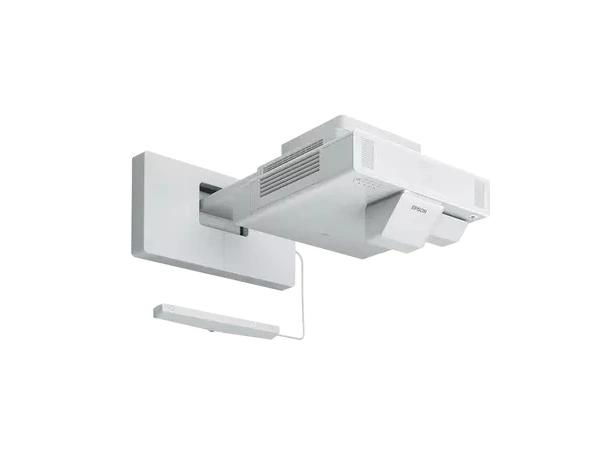

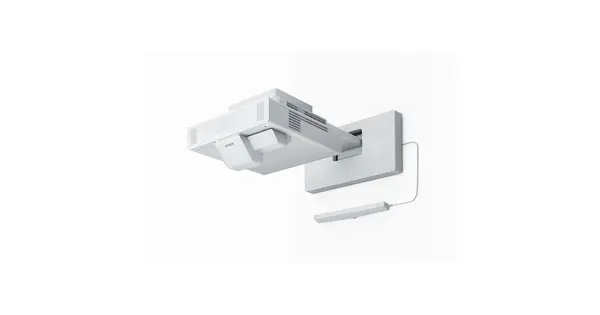

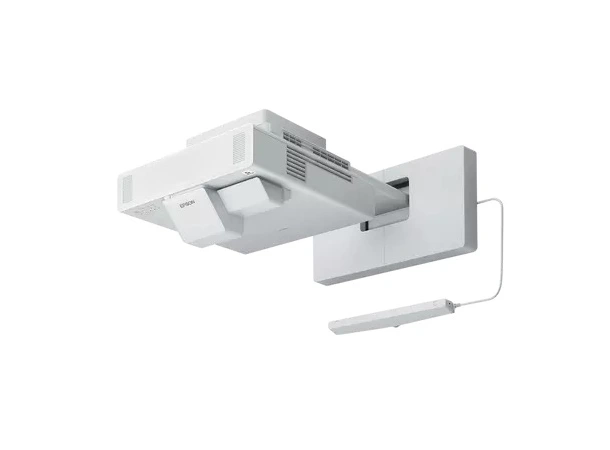

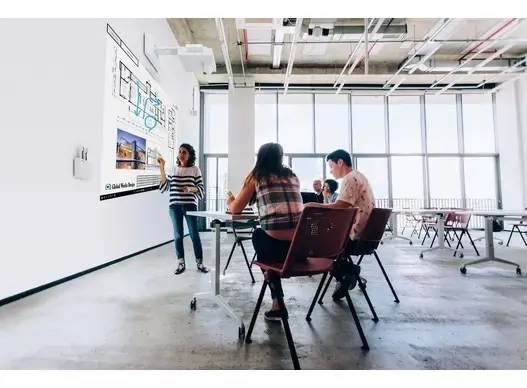

Transform your workplace with this large, scalable display that enriches collaboration and engagement, and promotes greater knowledge sharing with colleagues, clients or delegates using the latest and most versatile connectivity options. The EB-1485Fi has been designed to be easy to use, enriching collaborative and agile working environments.

Flexible display options and sizes

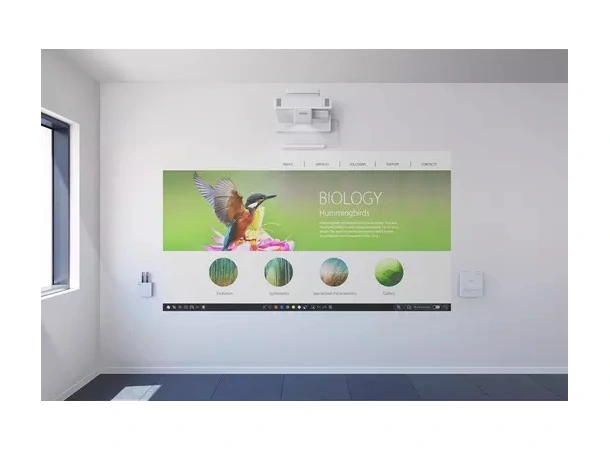

Deliver impactful sessions with a multi-touch display of up to 100 inches (16:9 standalone), 120 inches (16:6 standalone), or 155 inches using Epson's DuoLink feature, which combines two interactive display using built-in Edge Blending.

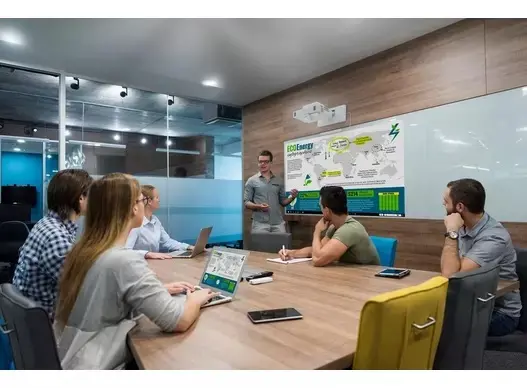

Promotes collaboration and connectivity

The intuitive and easy-to-use UI, touch home screen and interactive OSD menu make it simple to set up and navigate across functions. Featuring multi-touch pen and finger capabilities, wireless BYOD connectivity and screen mirroring (Miracast). It also has secure user collaboration tools and an array of powerful connectivity options, both wireless and wired, including HDBaseT* and HDMI out. The Epson iProjection App is free, providing seamless wireless connectivity and collaboration control from multiple devices and platforms. It's compatible with Windows, Office 365 suite and iOS, allowing the use of applications via PCs and tablets.

Sliding split screen

Combine up to four sources, such as video conference systems from multiple video sources and presentations, to optimise meeting interactions.

Fit and forget technology

Use for up to 20,000 hours without any maintenance, with a five-year warranty. Helping to reduce running costs, and meaning you can 'fit and forget' and continue with the job in hand.

Technology

Projection System

3LCD Technology

LCD Panel

0,62 inch with C2 Fine


Color Light Output

5.000 Lumen- 3.500 Lumen (economy) In accordance with IDMS15.4

White Light Output

5.000 Lumen - 3.500 Lumen (economy) In accordance with ISO 21118:2020

Resolution

1080p

Aspect Ratio

16:9

Contrast Ratio

Over 5.000.000 : 1

Light source

Laser

Laser Light source

20.000 hours Durability High, 30.000 hours Durability Eco

Keystone Correction

Manual vertical: ±3 °, Manual horizontal ±3 °

Colour Video Processing

10 Bits

2D Vertical Refresh Rate

192 Hz - 240 Hz

Colour Reproduction

Upto 1.07 billion colours

Optical

Throw Ratio

0,27 - 0,37:1

Zoom

Digital, Factor:1 - 1,35

Lens

Optical

Screen Size

65 inches - 100 inches

Projection Distance Wide

0,4 m ( 65 inch screen ),

Projection Distance Tele

0,6 m ( 100 inch screen ),

Projection Distance Wide/Tele

0,78 m ( 120 inch screen ),

Projection Lens F Number

1,5

Projection Lens Focal Length

3,9 mm

Projection Lens Focus

Manual

Offset

9 : 1

Connectivity

Interfaces

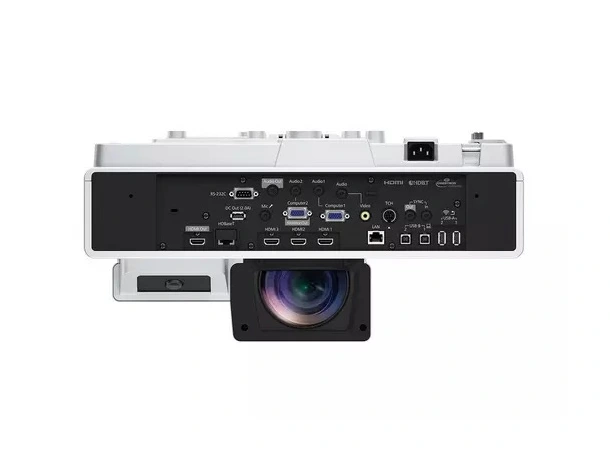

USB 2.0-A (2x), Powered USB, RS-232C, Ethernet interface (100 Base-TX / 10 Base-T), Wireless LAN IEEE 802.11a/b/g/n/ac, Wi-Fi Direct, VGA in (2x), VGA out, HDMI in (3x), Component in, Miracast, Jack plug out, Jack plug in (3x), Microphone input, Finger-touch interface, Multi-Touch interface, USB 2.0 (2x), Sync. in, Sync. out, HDMI out

Epson iProjection App

Ad-Hoc / Infrastructure

Network Protocol

HTTPS, IPv4, IPv6, SNMP, ESC/VP.net, PJLink

Advanced Features

Security

Kensington lock, Control panel lock, Password lock, Padlock, Wireless LAN security, Password protection

2D Colour Modes

Dynamic, Cinema, Presentation, sRGB, Blackboard, DICOM SIM

Other features

Arc Correction, Auto Calibration, Auto Power On, Built-in speaker, CEC compatible, Customizable user logo, Digital zoom, Direct Power on/off, Document Camera Compatible, Driverless installation, Dual Pen Support, Easy OSD pre-setting, Email notification, Finger-touch support, Fit to Screen, Freeze image, Image Shift, Instant on/off, Interactive, Interactive OSD menu, Mail notification function, Microphone input, Network administration, OSD copy function, PC Interactive, PC free annotation, Projection App for Chromebook, Quick Corner, Schedule Function, Screen Mirroring, Screen share, Set-up wizard, Sliding split-screen feature, Split-Screen-Function, Super resolution, Web Control, Web Remote, Whiteboard sharing function, Wireless LAN capable, iProjection App, iProjecton set-up by QR code

Interactivity

Yes - pen and finger-touch

Video Color Modes

Blackboard, Cinema, Dynamic, Presentation, sRGB, DICOM SIM

Projector control

via: AMX, Crestron, Extron, Crestron (RS-232c only), Crestron Integrated Partner, Crestron RoomView, Extron IP Link, Extron XTP, AMX Device Discovery, Control4 Simple Device Discovery Protocol

General

Power consumption

293 Watt (Normal On-Mode), 195 Watt (Eco On-Mode), 366 Watt (Normal Peak-mode), 262 Watt (Eco Peak-Mode), 0,5 Watt (Energy saving standby)

Heat Dissipation

1.244 BTU/hour (max)

Supply Voltage

AC 220 V - 240 V, 50 Hz - 60 Hz

Product dimensions

458‎ x 375 x 210 mm (Width x Depth x Height)

Product weight

9,3 kg

Noise Level

Normal:36 dB (A) - Economy:27 dB (A)

Supported Temperature

Storage -10° C - 60° C

Included Software

Easy Interactive Tools, EasyMP Multi PC Projection, Epson Projector Management

Options

Document camera, External Speaker, Pen tip(Felt), Pen tip(Teflon), Wireless LAN unit

Compatible Operating Systems

Linux, Mac OS 10.10.x, Mac OS 10.7.x, Mac OS 10.8.x, Mac OS 10.9.x, Ubuntu 14.10, Ubuntu 15.04, Windows 10, Windows 10 (32/64 bit), Windows 2000

Loudspeaker

16 Watt, Stereo: Stereo

Room Type / Application

Boardroom, Huddle space / Portable, Meeting room / Classroom

Positioning

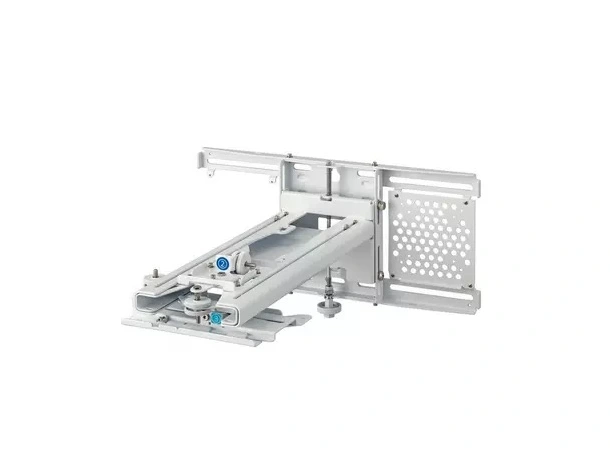

Table Mounted, Wall Mounted

Colour

White

Other

Warranty

60 months Carry in or 12.000 h
