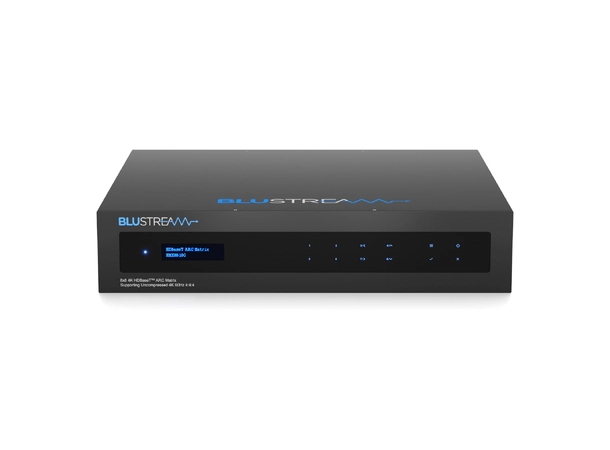

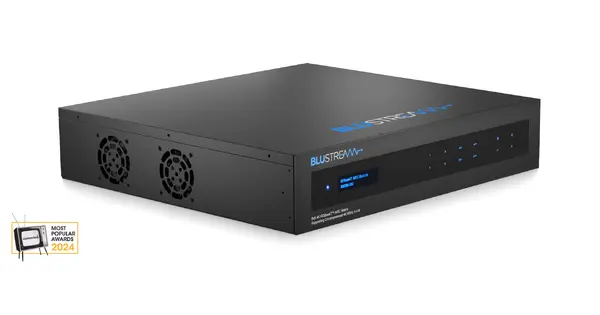

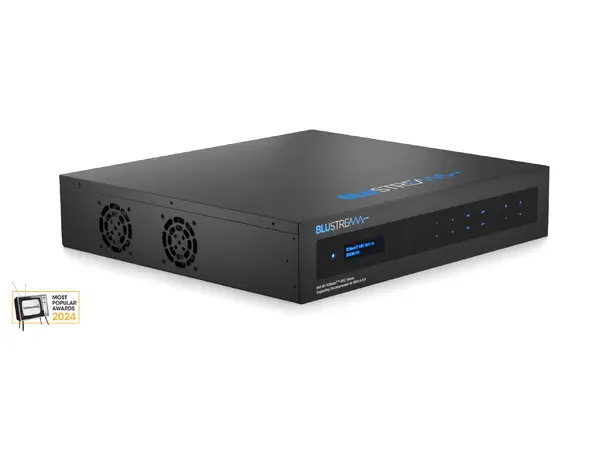

The HMX88-18G Matrix is an industry leading uncompressed, unconverted HDMI 2.0 4K 60Hz 4:4:4 HDCP 2.3/2.2 solution utilising HDBaseT3™ technology to deliver HDMI, Bi-directional IR & RS-232, ARC, 1Gb Ethernet, and PoC up to lengths of 100m over a single CAT6A cable.
The HMX88-18G supports uncompressed distribution of the latest HDR resolutions including HDR10/10+ and Dolby Vision resulting in the ultimate in picture quality for your critical viewing areas.
The Matrix also provides advanced features including simultaneous HDBaseT™/HDMI on outputs 1 & 2, video smart scaling on HDBaseT outputs, and an independent 26x8 audio matrix and ARC. The HMX88-18G includes an in-built web browser interface module for control and configuration of the Matrix, and RS-232, IR and Ethernet pass through to enable seamless 3rd party control integration.
Key Features:
• Advanced uncompressed, unconverted, HDMI over HDBaseT3™ technology offering distribution of bit-for-bit 4K HDMI video and audio over a single CAT6A cable
• Features 8 x HDMI inputs which can be independently routed to 8 x HDBaseT™ outputs
• Outputs 1 & 2 feature simultaneous HDMI and HDBaseT™ outputs
• Supports distribution of uncompressed HDMI2.0 18Gbps specification including 4K 60Hz 4:4:4 UHD video up to 100m*
• Supports distribution of the latest HDR resolutions including HDR10/10+ and Dolby Vision
• 26x8 Audio Matrix independently controllable from video. Audio source inputs include:
- 8 x audio breakout from HDMI source inputs
- 8 x audio breakout from zone outputs
- 8 x audio return from zone outputs*
- 1 x Optical and 1x Analogue audio input
• Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
• Integrated Ethernet switch (LAN Serving) when used with Blustream RX18G receiver (1Gb maximum)
• Web interface module for control and configuration of the Matrix
• Supports bi-directional IR and RS-232 on all HDBaseT™ outputs
• Control via front panel, IR, iOS / Android App, RS-232 and TCP/IP
• Supports PoC (Power over Cable) to power compatible HDBaseT™ receivers
• Advanced EDID management and HDCP 2.3 compliant
* Transmission distance is subject to video format, cable type and installation environment.
* The HDBaseT3™ specification is based on using CAT6A F/UTP infrastructure or better. The use of CAT5e is not supported and CAT6 is not recommended due to potential bandwidth and performance issues.
** ARC feature supports HDMI ARC or Optical ARC. Compatible with RX18G receivers only
Specifications:

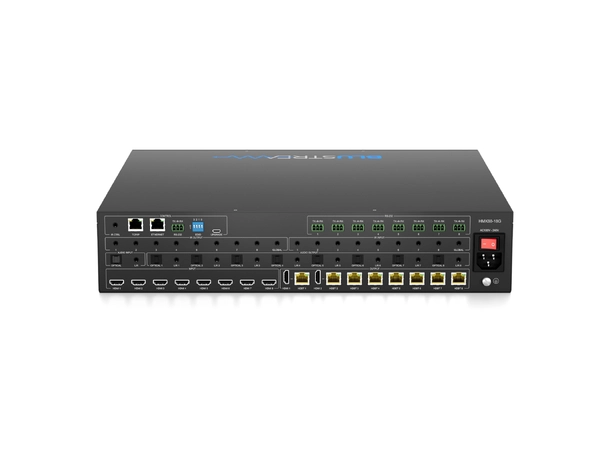

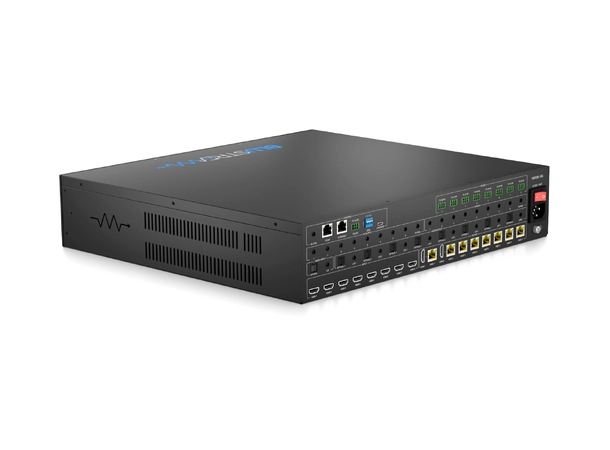

• Video Input Connectors: 8 x HDMI Type A, 19-pin, female
• Video Output Connectors: 2 x HDMI Type A, 19-pin, female, 8 x HDBaseT™ RJ45 connectors
• Audio Input Connectors: 1 x Analogue audio L/R (3.5mm stereo Jack), 1 x Optical (S/PDIF)
• Audio Output Connectors: 8 x Analogue audio L/R (3.5mm stereo Jack), 8 x Optical (S/PDIF)
• RS-232 Serial Port: 9 x 3-pin phoenix connector
• TCP/IP Control Port: 1 x RJ45, female
• Ethernet Passthrough Port: 1 x RJ45, female
• IR Input Ports: 10 x 3.5mm stereo jack
• IR Output Ports: 9 x 3.5mm mono jack
• Product Upgrade Port: 1 x Micro USB, female
• Rack Mountable: 2U rack height, rack ears included
• Casing Dimensions (W x H x D): 436mm x 88mm x 400mm (without feet)
• Shipping Weight: 10.5kg
• Operating Temperature: 23°F to 131°F (-5°C to +55°C)
• Storage Temperature: -13°F to 158°F (-25°C to +70°C)
• Power Supply: Internal 100-240V AC
• HDBaseT Power Output: 24V DC 0.75A per port
Box Contents:
1 x HMX88-18G
1 x Rack mounting kit
1 x Remote control
8 x IR emitters
9 x IR receivers
1 x Serial Cable - DB9 to 3-pin phoenix connector
1 x IR Control Cable - 3.5mm-3.5mm Cable
IEC Power Cable(s)
1 x Quick Reference Guide
Product link: https://www.blustream.co.uk/8x8-hdbaset-matrix-hmx88-18g
