Agile USTi laser display

• Interactive HD display for any room 53-100" UST display for unrestricted viewing (no shadows/reflections)
• Bright and energy efficient laser 4,100lm CLO with 3LCD technology for brighter colours at only 205W
• Effortless connectivity options Auto-on, wired / wireless display with USB 2A output for smart sticks
• Simple to use and built to last Virtually maintenance free with 5-year, 12,000hr warranty
• Document camera compatibility Create and record a live, totally immersive lesson or presentation

Overview

Whatever the size of class or meeting room, unrestricted and interactive presentations are possible with this bright, compact and affordable touch-display solution.

The EB-760Wi's vibrant image, scalable up to 100", is clearly visible from any angle and from a distance, and content can be easiliy shared or streamed directly from multiple devices for the perfect collaborative experience.

The EB-760Wi is a step up from the EB-760W, with added interactive features.

Interactive technology enables two digital pens to be used simultaneously on the display (finger touch available through optional accessory FT01). Presentations can be controlled and brought to life with on-screen annotations, while a variety of convenient built-in tools support productivity. An optional Epson visualiser camera can be controlled via the display, projecting documents or objects from a desk for everyone to see in incredible HD detail.

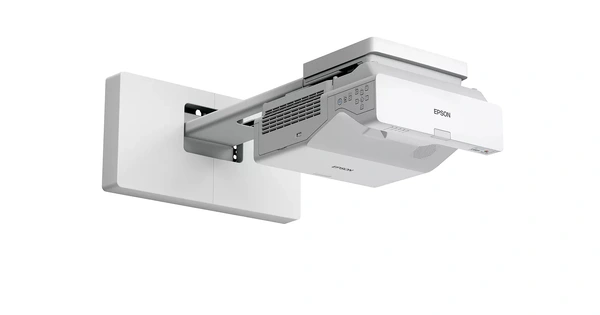

The ultra short throw lens allows safe, discreet positioning above the display, enabling presenters free access to interact without casting shadows.

With a 4,100 lumens laser-light source, combined with 3LCD technology, it produces a large, bright and vibrant display up to 100", visibly clear from all angles and at a distance.

Versatile wired and wireless connectivity options, including screen mirroring via Miracast™, allow participants to effortlessly share content from their PCs or mobile devices.

Unlike a flat-panel display, there is no heavy, breakable, glass panel to create disruptive, reflected blind spots from certain angles, and presenters are not subjected to LCD panel direct blue light radiation, believed to damage eyes.

Technology

Projection System

3LCD Technology, RGB liquid crystal shutter

LCD Panel

0,59 inch with C2 Fine


Color Light Output

4.100 Lumen- 2.800 Lumen (economy) In accordance with IDMS15.4

White Light Output

4.100 Lumen - 2.800 Lumen (economy) In accordance with ISO 21118:2020

Resolution

WXGA

Resolution Enhancement

HD ready

Aspect Ratio

16:10

Contrast Ratio

Over 5.000.000 : 1

Light source

Laser

Laser Light source

20.000 hours Durability High, 30.000 hours Durability Eco

Keystone Correction

Manual vertical: ±3 °, Manual horizontal ±3 °

Colour Video Processing

10 Bits

2D Vertical Refresh Rate

100 Hz - 120 Hz

Colour Reproduction

Upto 1.07 billion colours

Optical

Throw Ratio

0,27 - 0,37:1

Zoom

Digital, Factor:1 - 1,35

Lens

Optical

Screen Size

53 inches - 100 inches

Projection Lens F Number

1,6

Projection Lens Focal Length

3,7 mm

Projection Lens Focus

Manual

Offset

6 : 1

Connectivity

Interfaces

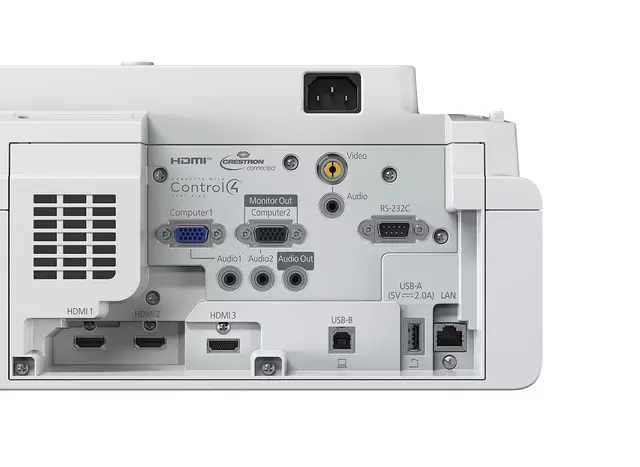

USB 2.0-A (2x), RS-232C, Ethernet interface (100 Base-TX / 10 Base-T), Wireless LAN IEEE 802.11a/b/g/n/ac, VGA in (2x), VGA out, HDMI in (3x), Composite in, Miracast, Jack plug out, Jack plug in (3x), USB 2.0 Type B (Service Only) (2x), Wi-Fi Direct, Microphone input

Epson iProjection App

Ad-Hoc / Infrastructure

Network Protocol

HTTPS, IPv4, IPv6, SNMP, ESC/VP.net, PJLink

Advanced Features

Security

Kensington lock, Control panel lock, Password lock, Padlock, Security cable hole, Wireless LAN unit lock, Wireless LAN security, Password protection

Other features

A/V mute, Arc Correction, Auto Power On, Auto source search, Built-in speaker, CEC compatible, Customizable user logo, Digital zoom, Direct Power on/off, Document Camera Compatible, Dual Pen Support, Easy OSD pre-setting, Email notification, Home Screen, Horizontal and vertical keystone correction, Image Shift, Instant on/off, Interactive, Interactive Home Screen, Interactive OSD menu, JPEG Viewer, Long light source life, Mail notification function, Microphone input, Network administration, Network projection, OSD copy function, PC Free, PC Interactive, PC free annotation, Power on button, Projection App for Chromebook, Quick Corner, Schedule Function, Screen Mirroring, Split-Screen-Function, Web Control, Web Remote, Whiteboard sharing function, Wireless LAN capable, iProjection App, iProjecton set-up by QR code

Interactivity

Yes - pen and finger-touch

Video Color Modes

Blackboard, Cinema, Dynamic, Presentation, sRGB

Projector control

via: Crestron Integrated Partner, Crestron RoomView, Extron IP Link, AMX Device Discovery, Control4 Simple Device Discovery Protocol

General

Power consumption

197 Watt (Normal On-Mode), 141 Watt (Eco On-Mode), 263 Watt (Normal Peak-mode), 199 Watt (Eco Peak-Mode), 0,5 Watt (Energy saving standby)

Heat Dissipation

895 BTU/hour (max)

Supply Voltage

AC 100 V - 240 V, 50 Hz - 60 Hz

Product dimensions

356‎ x 395 x 133 mm (Width x Depth x Height)

Product weight

6 kg

Noise Level

Normal:37 dB (A) - Economy:27 dB (A)

Supported Temperature

Storage -10° C - 60° C

Supported Humidity

Operation 20% - 80%, Storage 10% - 90%
If the projector is suspended from a ceiling or wall mount and installed in an environment with heavy oil smoke or places where oils or chemicals are volatilized, places where a lot of smoke or bubbles are used for event staging, or where aroma oils are frequently burned, it can make certain parts of our products susceptible to a material degradation which over time could break and cause the projector to drop from the ceiling.

If you are concerned about the environment in which your projector is installed, or if you have any other questions, please contact our support department and they can provide additional assistance.

Included Software

Easy Interactive Tools, EasyMP Multi PC Projection, Epson Projector Management

Options

Air filter, Ceiling mount, Connection and control box, External Speaker, Finger Touch Unit, Finger Touch Unit Wall Bracket, Pen tip(Felt), Pen tip(Teflon), Safety wire set, Visualiser camera, WP System - ELPWP10, Wall mount, Wireless LAN unit, Wireless transmitter - ELPWT01

Loudspeaker

16 Watt

Room Type / Application

Meeting room / Classroom

Positioning

Ceiling Mounted, Desktop, Wall Mounted

Colour

White

TCO Certified

For further information relating to TCO Certified please visit https://tcocertified.com/files/certification/Information-document-for-end-users.pdf

Other

Warranty

60 months Carry in or 12.000 h
