Dual 10", 3-way high-output system with a power handling of 1400 W for installations
Versatile, high-output, full-range point source loudspeaker with a 3-way design and a powerful 1400 W rating. Featuring DAC Technology and Rotatable Waveguide, it offers two directivity options. With various accessories it is optimised for installations.
Overview
The latest innovation and addition to the HOPS Series family, offering exceptional performance and versatility, CODA Audio HOPS10i-Pro is a high-output, three-way point source loudspeaker. It is a superior choice for a wide range of permanent installations.
Advanced technologies

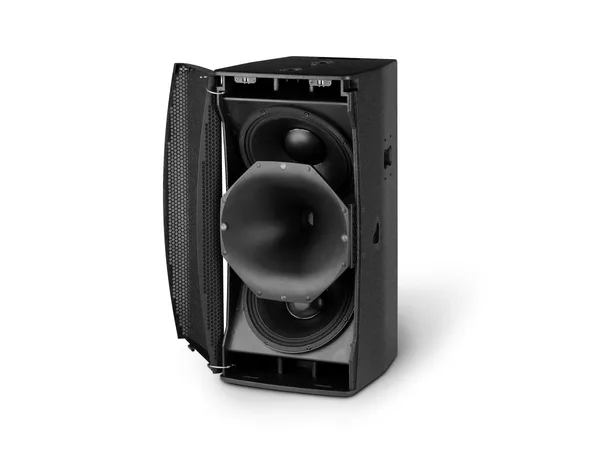

HOPS10i-Pro utilises the same advanced low-frequency driver technology found in CODA Audio’s CiRAY line-array system, ensuring pristine sound reproduction even at high pressure levels. With this advanced triaxial design, featuring dual 10″ neodymium ultra-low distortion cone drivers and a 1.4″ coaxial neodymium mid/high driver, it ensures a perfectly coherent and uniform wavefront.
CODA Audio’s proprietary technologies – patented Dynamic Airflow Cooling (DAC) and Phase Linearity— provide superior heat dissipation and unmatched sonic clarity with phase-coherent audio output.
Optimised for Installations
The HOPS10i-Pro is tailored for permanent installations, making it ideal for venues such as dance clubs, houses of worship, sports arenas, theatres, and corporate spaces.
Its specialised enclosure allows it to also function as a high-powered monitor and offers flexible dispersion options, with rotatable waveguide providing two directivity configurations 80° x 50° or 50° x 80°.
The IP54/55-rated cabinet is built to withstand challenging environmental conditions and physical impact, with multiple M6 and M8 threaded points for flexible mounting options. This installation-focused version delivers consistent high performance over the long term, with low maintenance needs.
The HOPS10i-Pro is available with a range of accessories such as for example vertical and horizontal brackets or flying frame which allow quick and easy installation.
When paired with the LINUS6.4 i/D amplifier and the G18 or U4-Sub, the full potential of HOPS10i-Pro is revealed – power, precision, and perfection, all in one seamless experience.
The perfect installation loudspeaker, the HOPS10i-Pro, is also available as HOPS10T-Pro mobile version.
Main Features
- High-output 3-way versatile full range point source for installations
- DAC Technology
- Superior sound with linear phase response
- Frequency range: 50 Hz – 22 kHz (-6 dB)
- High power with passive power handling of 1400 W (AES)
- Crystal-clear sound from 1.4” mid/high coaxial ring-diaphragm Nd driver
- Ultra-low distortion with dual 10” Nd woofers
- Rotatable Waveguide 80° x 50°
- Max. peak SPL 144 dB (A)
- Extreme durability from the multiplex enlosure with polyurea coating
- Ball impact resistant (DIN 18032-3)
- Simple mounting with a range of accessories
- System integration with LINUS Loudspeaker Management Amplifiers
