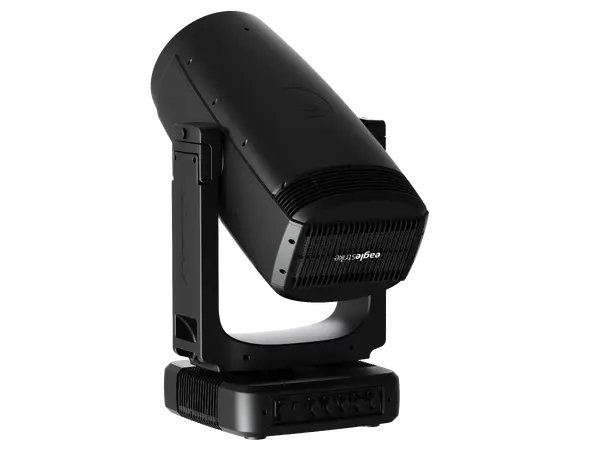

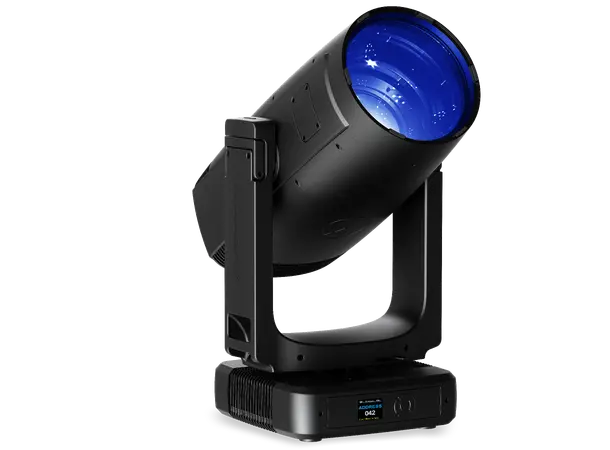

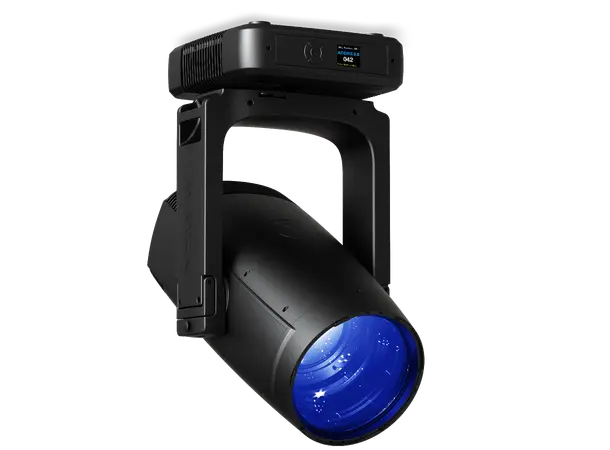

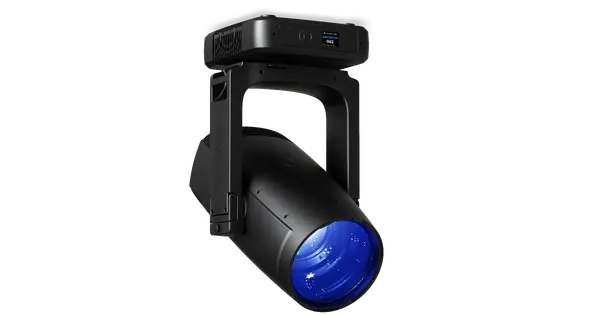

EagleStrike was born from a bespoke request for a signature luminaire. It stands as the first LED-source followspot in Ayrton’s range, engineered for intensive outdoor use across long distances where precision is paramount.
EagleStrike LT represents the evolution of
Ayrton’s precision lighting philosophy
— a fixture purpose-built for true Long Throw
use, engineered to deliver clean, controlled, and
intensely bright beams over long distances.
Every component, from optical elements to
control options, has been designed with one
clear objective: flexibility.
I'ts optical system prioritises beam integrity and
efficiency at extremely narrow zoom angles, ensuring
sharp edges and consistent brightness across any
distance. Mechanical assemblies have been refined
to balance precision and durability, while the optical
coatings and materials maintain stability under extreme
heat and continuous operation. Together, these features
make EagleStrike not just a high-output light source,
but a specialised performance tool — ideal for theatres,
concerts, and broadcast applications where accurate,
flattering illumination of people is critical.
Ultra-Narrow Zoom Range
EagleStrike delivers an exceptionally tight beam, with a
zoom range that closes down to 2.9 °. The optical design
follows the same high-efficiency principles first developed
for Stradale, with every lens and mechanism tuned for
minimal light loss. Performance at narrow angles takes
priority, providing the intensity and precision required for
large venues.
Beam Reducers and Optical Efficiency
For even narrower projection, EagleStrike includes
two beam reducers on the first gobo wheel, positioned
perfectly at the focal plane. This ensures no brightness
loss when engaged and far greater efficiency than an iris.
Because the fixture is designed primarily for beam work,
the reducers take precedence over framing alignment to
maximise lux.
Advanced Materials and Thermal Control
EagleStrike’s gobo wheels combine glass and metal
to balance fine detail with durability under heat. Metal
reducers and gobos resist warping and colour shift, while
glass designs are used where intricate patterns are
required. The framing system also benefits from reflective,
heat-resistant coatings that maintain performance and
protect against temperature-related degradation.
Tracking Software Modes
Dedicated internal modes optimise movement and
responsiveness for tracking performers. The 360SC
mode limits pan rotation to a 360?° range, eliminating
flips and ensuring smooth transitions. FS Mode increases
motor responsiveness, allowing the fixture to follow fast
or unpredictable motion with remarkable fluidity and
control.
Camera and Colour Integration
EagleStrike supports optional camera housings for
integration with automated tracking systems, while
maintaining full IP65 protection. Its 6500 K native
temperature provides a neutral white base, adjustable
down to 2900 K via smooth CTO control. Additional filters
offer precise colour correction for glass gobos, camera
work, and high-CRI applications, ensuring accurate skin
tones and natural colour reproduction.
