G18-Sub : Multipurpose Subwoofer.
A 18" compact sub-extension that provides powerful and extended low frequency response. Low port compression and optimised enclosure design give a tight, accurate bass response that is ideally suited for the G700-Series systems.
Main Features
- Ultra low distortion neodymium woofer
- Frequency range: 28 Hz – 120 Hz (-6 dB)
- Power handling: 1250 W (AES)
- Maximum SPL 139 dB (peak)
- Low power compression
- System integration with G700-Series systems
- System integration with LINUS Loudspeaker Management Amplifiers
Overview

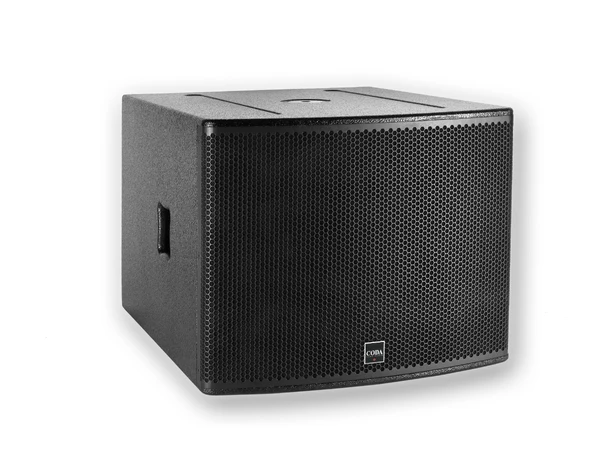

The G18-Sub is an 18″ compact sub-extension that provides powerful and extended low frequency response. Low port compression and optimised enclosure design give a tight, accurate bass response that is ideally suited for the G700-Series systems.
STATE-OF-THE-ART DRIVERS

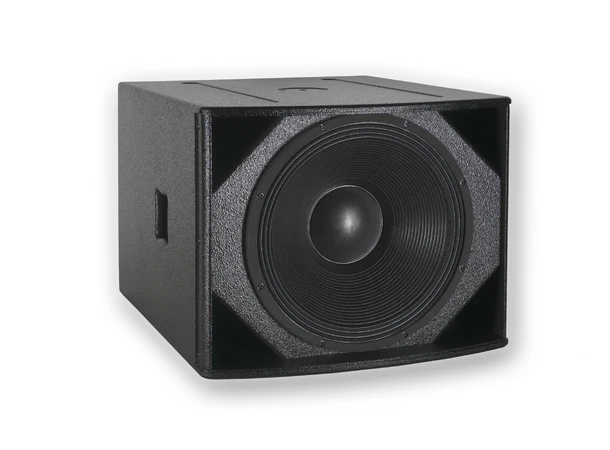

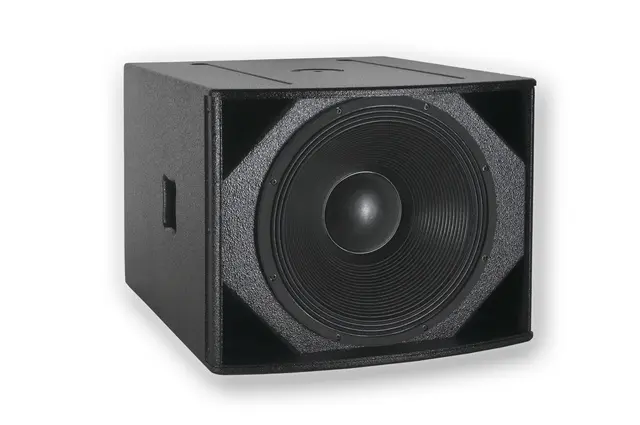

The G18-Sub is equipped with an extremely long excursion 18″ neodymium ultra low distortion woofer. The neodymium motor delivers extreme high magnetic flux for increased efficiency. The 4″ voice coil is 38 mm high, ensuring ultra linear excursion of 26 mm / pp at consistent magnetic force.
State-of-the-art carbon-fiber cone ensures maximum stiffness and low moving mass. Three aluminum shorting rings reduce intermodulation distortion, minimise induction variation while reducing thermal compression. This design dramatically reduces the distortion of a typical subwoofer at longer excursion levels, and improves the overall sound quality and performance characteristics of the cabinet.
APPLICATIONS
The G18-Sub is perfectly suited as a sub-extension for the G700-Series systems and can be used in houses of worship, theatres, clubs and mobile applications.
G18-Sub has been designed to work exclusively with CODA Audio LINUS Loudspeaker Management Amplifiers as an integrated solution for DSP, amplification, network remote control, optimal performance, protection, as well as extensive possibilities for system tuning and monitoring.
