Compact 18" subwoofer, Extended frequency range down to 28 Hz (-6 dB)

• A 18" high output subwoofer that provides powerful and extended low frequency response with immense headroom. Low port compression and optimised enclosure design give a tight, accurate bass response that is ideally suited for dance clubs, mobile and installation applications.

Main Features

• 18″ ultra low distortion woofer
• Extended frequency range: 28 Hz – 150 Hz (-6 dB)
• High power handling: 1,250 W (AES)
• Maximum SPL 138 dB (peak)
• Rigging compatible with APS
• Flyable or ground stackable
  in cardio or omni configurations
• System integration with LINUS DSP amplifiers

Overview

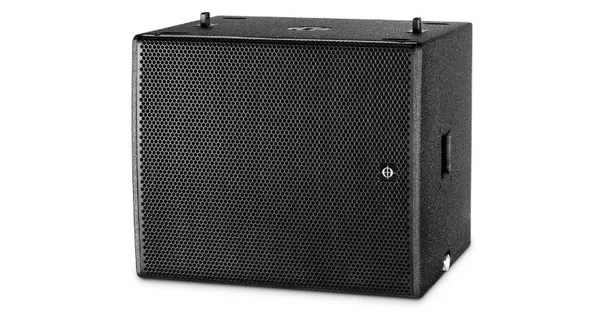

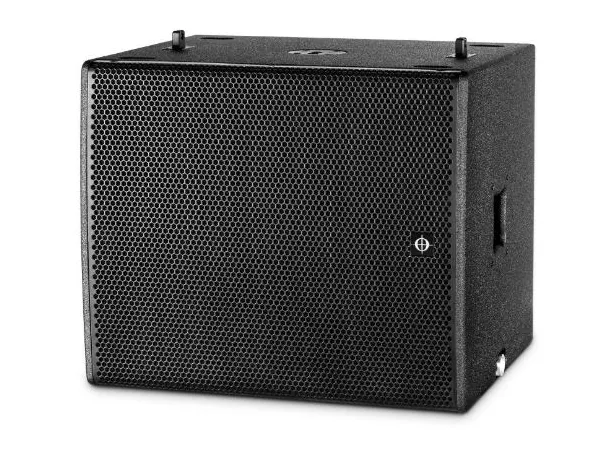

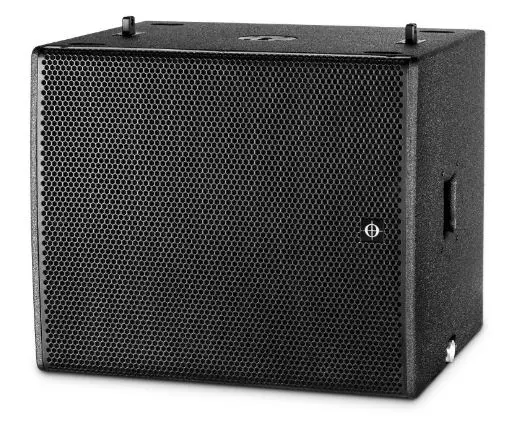

The APS-SUB is an 18″ high output subwoofer that provides powerful and extended low frequency response with immense headroom. Low port compression and optimised enclosure design give a tight, accurate bass response that is ideally suited for dance clubs, mobile or installation applications. The integrated rigging system allows quick and easy flying or ground stacking.

The APS-SUB is equipped with an extremely long excursion 18″ ultra low distortion driver. The strong motor delivers extreme high magnetic flux for increased efficiency. The 4″ voice coil ensures ultra linear excursion of 20 mm / pp at consistent magnetic force.
The state-of-the-art carbon-fiber cone ensures maximum stiffness and low moving mass. Three aluminum shorting rings reduce intermodulation distortion, minimising induction variation whilst reducing thermal compression. This design dramatically reduces the distortion of a typical subwoofer at longer excursion levels, and improves the overall sound quality and performance characteristics of the cabinet.
The APS-SUB is designed to work exclusively with CODA Audio LINUS amplifiers as an integrated solution for DSP control, amplification, network remote control and diagnostics.
The integrated solution ensures optimal performance and protection.

Primarily designed as a subwoofer extension for APS, the APS-SUB is also suited for a variety of applications in touring and installations where compact size, high precision, deep bass with directivity control is needed.
Typical applications are dance clubs, theaters, houses of worship and live sound venues.

Specification

Type:

Flyable 18″ Subwoofer for APS

Application:

Small / Medium venues

Frequency response (-6 dB):

28 Hz – 150 Hz

Power handling AES / peak (passive):

1250 W / 5000 W

Sensitivity 1W / 1m:*

98 dB

Maximum output peak:**

138 dB

Amplification, cabinets per amplifier:

LINUS10-C Optimum / Maximum:

8/12

LINUS12C Optimum / Maximum:

8/12

LINUS14 Optimum / Maximum:

8/12

Components:

18″ ultra low distortion woofer, 4″ (101.6 mm) VC, 1300 W (AES)

Nominal impendance:

8 Ω (1+/1-)

Input connectors:

2x Neutrik™ NL4MP

Suspension:

Integrated

Enclosure material:

Baltic birch

Finish:

Polyurea coating

IP rating (IEC 60529)

IP54

Weather protection options:

Standard IP55: IP55 (Amphenol connectors)
MG1 (Marine Grade 1): IP55

Dimensions (WxHxD):

674 x 570 x 596 mm / 26.54 x 22.44 x 23.46″

Net weight:

45 kg / 99.21 lbs

* Pink noise 6 dB crest factor. Half-space loading.
