Specification

• Relay Switch: 1-channel, 1x16A
• Output: PowerCon True 1 + Schuko
• Type: Double pole 1P+N

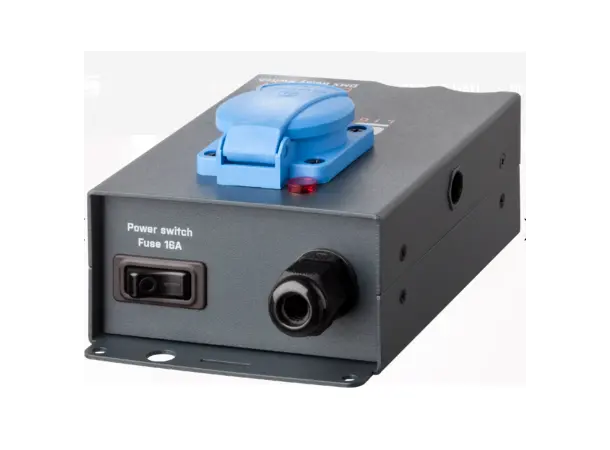

• Protection: Secured with MCB 16A
• Indicators: Optical signal lamp for switching status
• DMX Status: 2 LED indicators for DMX line status
• Size: Compact design

Description

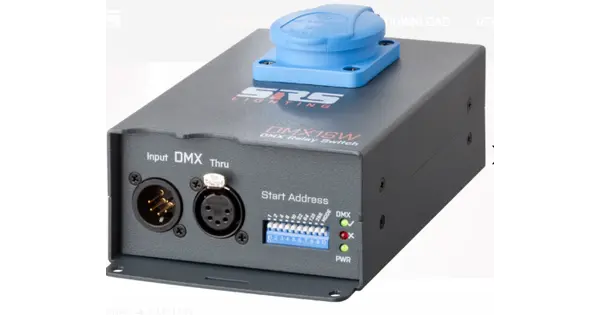

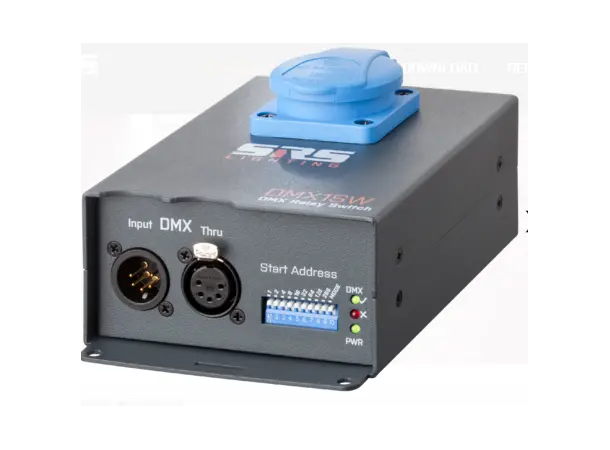

The DMX1SW device allows control of 1x 230V/50Hz 16A electrical devices from a theatrical light desk via the DMX line. Switching of the outputs is done via two separate relays for the phase and neutral line.

The DMX1SW device is equipped with sockets according to the customer’s needs.

Custom-made firmware is available on request.
