The most user-friendly audio interface.CONNECT 2

• USB-C audio interface
• Autosetup for sensational sound with just a few clicks
• Clipguard protects from distortion
• Single-click Compressor and Denoiser
• Three iconic preamp sounds
• Touch-based and intuitive controls
• Custom button for workflow shortcuts
• Individual LED colors and brightness

Device

Features

RGBW LEDs, MUTE, custom button, autogain, input / playback mix, gain reduction display, Kensington lock

Control

Capacitive touch

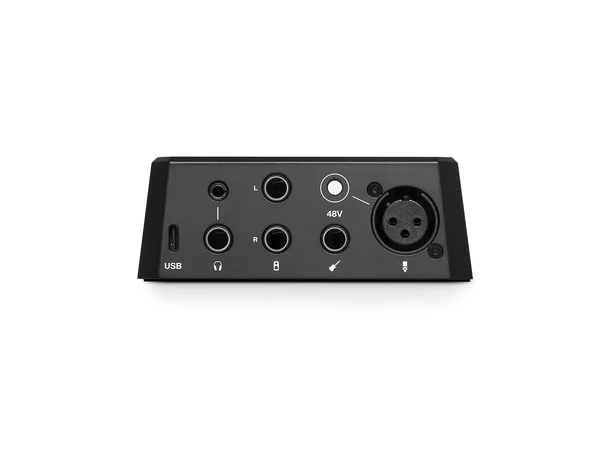

Inputs

1x Microphone: balanced 3-pin XLR, 1x Instrument: Hi-Z 6.3 mm jack

Outputs

2x Speaker: 6.3 mm balanced jack, 1x Headphone: 6.3 mm jack, 1x Headphone: 3.5 mm jack

Metering

25 step high-resolution

Dimensions and weight

151 x 110 x 41 mm, 394 g

Power requirements

USB bus-powered





Digital

Type

USB-C audio interface

Software

LEWITT CONTROL CENTER

DAW included

Steinberg Cubase LE, Cubasis LE

Compatibility

MacOS, Windows, iOS (plug and play with USB-C devices, devices with lightning connector require Camera Connection Kit and external bus power)

ASIO driver

Yes

Sample rate

44.1 kHz, 48 kHz, 96 kHz

Bit rate

24

USB Audio Class

2.0

Signal flow

Input / playback mix

DSP powered

Yes

Loopback

Yes

Inputs / Outputs

4 (includes 2 software channels) / 2

Streaming modes

macOS mode, mobile mode

Min. system requirements

Windows 10 (64 bits): 4 GB RAM minimum, USB 2.0 connector; macOS 10.15 and higher: 4 GB RAM minimum, USB 2.0 connector





Microphone Input

Features

DSP (low-cut filter, clipguard, preamp modes, denoise, compressor, autogain, autosetup)

Type

balanced

Connector

3-pin XLR

Phantom power

48 V

Gain range

0 - 72 dB

Equivalent input noise

–129 dBV (A)

Dynamic range

118 dB (A) - Without clipguard 118 dB (A)

Max input level

15.8 dBV

Total harmonic distortion

0.001%

Frequency response

20 Hz - 20 kHz (± 0.1 dB)

Instrument Input

Features

DSP (low-cut filter, clipguard, preamp modes, denoise, compressor, autogain, autosetup)

Type

Hi-Z, differential ground loop break circuit

Connector

6.3 mm jack

Gain range

0 - 60 dB

Input impedance

2.5 M Ω

Equivalent input noise

–108 dBV (A)

Dynamic range

121 dB (A) - Without clipguard 105 dB (A)

Max input level

12.5 dBV

Total harmonic distortion

0.0008%

Frequency response

20 Hz - 20 kHz (± 0.1 dB)





Speaker Output

Features

High volume speaker mode, Mute, Volume, Map system volume controls

Connector

2x 6.3 mm jack, balanced

Frequency response

20 Hz - 20 kHz (± 0.1 dB)

Max output level

12.2 dBV (high volume mode)

Total harmonic distortion

0.0023%

Impedance

200Ω





Headphone Output

Features

High impedance headphone mode, Mute, Volume, Map system volume controls

Connector

1x 6.3 mm jack, stereo, 1x 3.5 mm jack, stereo

Frequency response

20 Hz - 20 kHz (± 0.2 dB)

Max output level

6.8 dBV (high impedance mode)

Total harmonic distortion

0.003%

Impedance

1.9 Ω
