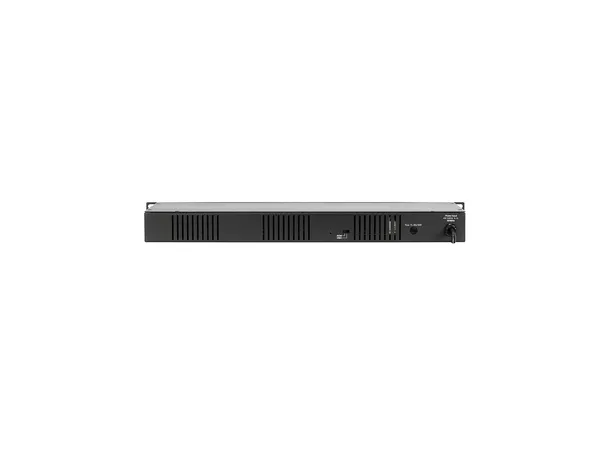

The ADJ Lighting RDM XS8 is a 19-inch rack mount, 8-way DMX and RDM data splitter.

With one 5-pin input, one 5-pin thru and eight 5-pin outputs, the RDM XS8 makes running DMX cables easier and more efficient. Designed for seamless integration into your lighting setup, this data splitter ensures reliable and convenient installation into a 19-inch rack mount cabinet.

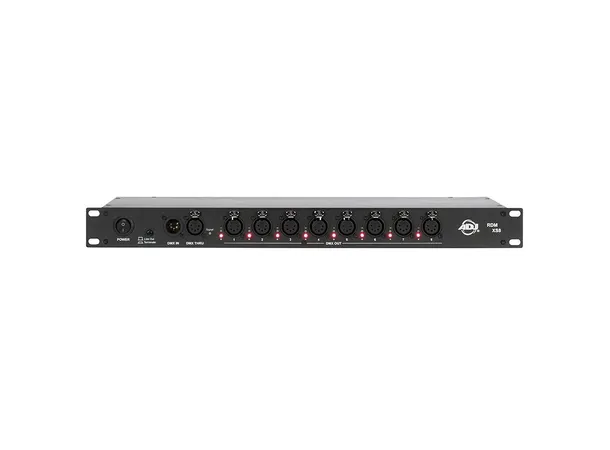

Its slim 1U configuration includes 1x 5-pin XLR input, 1x 5-pin XLR thru, 8x 5-pin XLR outputs, plus a Link Out Termination Switch and a DMX/RDM Protocol Switch.

• 1x 5-pin XLR Input
• 1x 5-pin XLR Thru
• 8x 5-pin XLR Outputs
• Link Out Termination Switch
• DMX / RDM Protocol Switch
• Length: 152.4mm
• Width: 482mm
• Height: 44mm
• Weight: 2.21kg
• AC Input: 100-230V 50/60Hz
• Power Consumption: 3.3W @ 230V
• Power Input Protection: Fuse, T1.25A/250 (5.2x20mm)
• Ambient Operational Temperature: -20°C to 45°C
• Humidity: <75%
• Storage Temperature: 25°C
