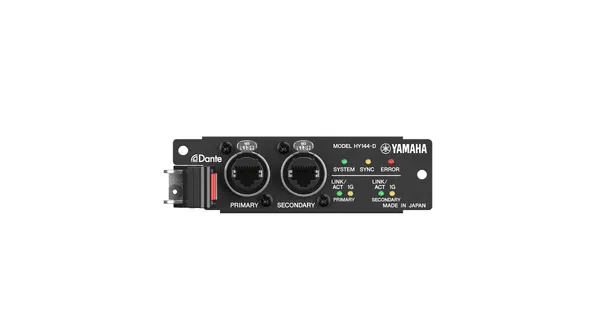

HY144-D Audio Interface Card

The HY144-D is a digital I/O card that is compatible with Dante digital audio networks. Up to 144 simultaneous input and output channels at 96 kHz/32 bits are supported.

• Can send and receive uncompressed digital audio signals of 32-bit 96 kHz quality, with a maximum of 144 inputs/144 outputs.
• Redundant connections are supported with primary and secondary connectors. Daisy chain connections are also supported.
• Indicators show communication status useful for troubleshooting.
• Dimensions (WxHxD): 125 x 37 x 207mm (4.9" x 1.5" x 8.2")
• Net Weight: 0.25 kg (0.6 lbs)
