Instrument recordings made easy.LCT 040 MATCH

• Small diaphragm condenser microphone
• Well-balanced sound with pleasant high-end
• Made for acoustic guitar and drum recordings
• Durable and light aluminum housing
• Cardioid polar pattern

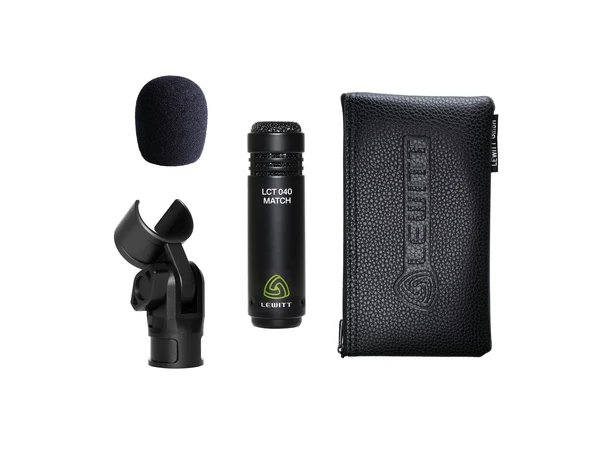

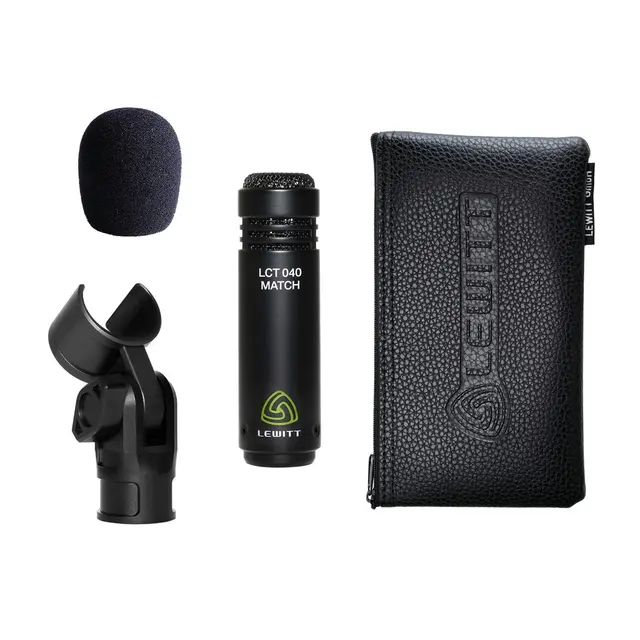

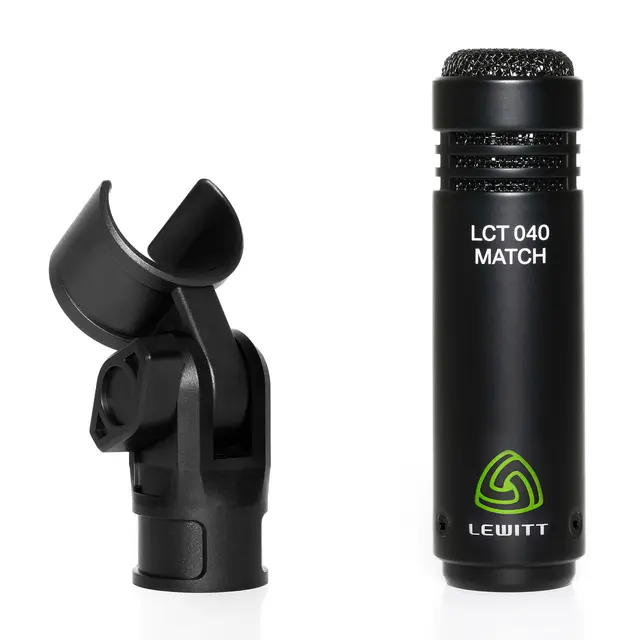

Included: Foam windscreen, Microphone clip, Transport bag

Specifications

Type

Condenser, permanently polarized

Acoustical operating principle

Pressure gradient transducer

Transducer Ø

17 mm, 0.67 in

Diaphragm

3 micron gold sputtered Mylar

Polar pattern

Cardioid

Frequency range

20 ... 20,000 Hz

Sensitivity

18.8 mV/Pa, -34.5 dBV/Pa

Self-noise

20 dB (A)

Max. SPL for 0.5 % THD

135 dBSPL

Dynamic range

115 dB (A)

Internal impedance

203 Ω

Supply voltage

48 V ± 4 V

Current consumption

7.2 mA

Connector

Gold plated 3-pin XLR

Microphone dimensions

24 dia. x 83 mm, 0.9 dia. x 3.3 in

Microphone net weight

44.6 g, 1.6 oz

Microphones measured according to: IEC 60268-4 | Phantom power according to: IEC 61938 | Noise measurement according to: IEC 60268-1
