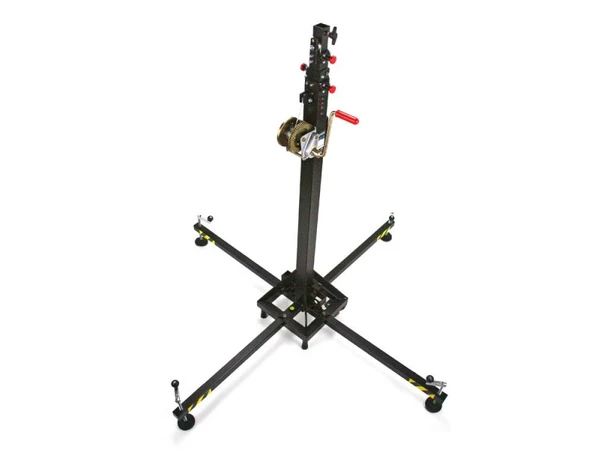

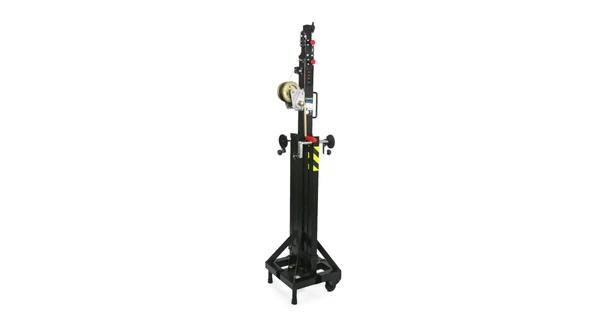

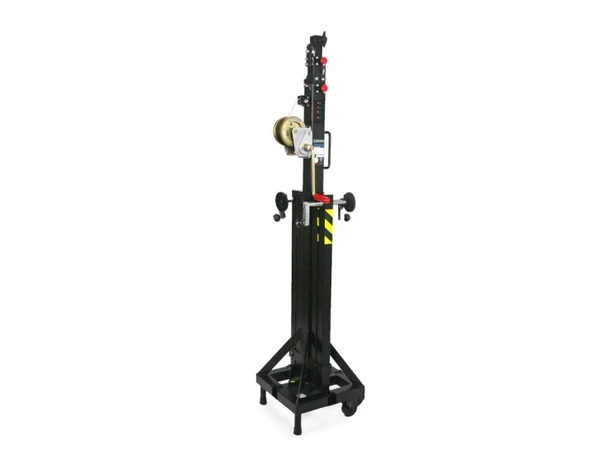

MEGARA 150

The MEGARA 150 lifting tower is a powerful solution for lifting lighting equipment, speakers and truss structures at events and audiovisual productions. With an impressive load capacity of 150kg and a maximum height of 5.30m, this telescopic tower offers sturdy and reliable support. Manufactured from high quality materials, the MEGARA 150 guarantees durability and stability. Its telescopic design allows for easy configuration and height adjustment, adapting to different needs and spaces. It incorporates a safety system with external triggers that provides additional support and ensures stability during use. The MEGARA 150 stands out for its robustness and ease of transport. Despite its robustness, it can be conveniently disassembled and transported. Its compact, foldable design makes it easy to store and its steel construction provides high structural strength. With the MEGARA 150 lifting tower, you can safely and efficiently lift heavy equipment, ensuring a professional set-up and a high-quality audiovisual experience. Whether lighting large events or amplifying sound with powerful speakers, this tower will give you the stability and confidence you need to make your productions a success.

Technical Specifications

-Maximum height: 5,30m
-Maximum load: 150kg
-Height folded: 1,73m
-Weight: 48kg
-Winch: AL-KO Type 450 Compact 450kg
-Workspace: 1,38 x 1,38m
-Minimum charge: 25kg
-Material: 7×19+0
-Cable: Galvanized steel under EN 12385
-Maximum cable load: 958kg
-Cable twisting resistance : 1.770N/mm²
-Cable diameter: 4mm
-Cable composition: Galvanized steel under EN 12385
-Security system: External trigger in sections
-Bubble level: to vertically adjust the tower.
-Closed base area: 0,38 x 0,38m
-Leg attachment: Safety pins

Details

Leg base trigger: The leg trigger allows the leg to be anchored to the base more efficiently, using a push-button system that replaces the old and uncomfortable ring triggers.

Polyamide plates: This material offers greater resistance than metal and does not wear out. They rest on the surface without damaging the floor, carpets, etc.

Safety triggers: The triggers prevent the load from collapsing. They also allow for selecting different heights and raising all the bars equally, distributing the load from the main bar to the last bar, extending the tower’s lifespan.

Winch: Our winches are made by high-quality, renowned companies. They are resistant and long-lasting. Moreover, they are oversized for added safety and better cable traction.

Reinforced base: All our towers have a reinforced iron base capable of supporting heavy weights and high heights.

Level: The new location of the level at the base allows for easier and more accurate tower stabilization.

Pulleys and pulley-holders: Made with reinforced steel for greater durability.
