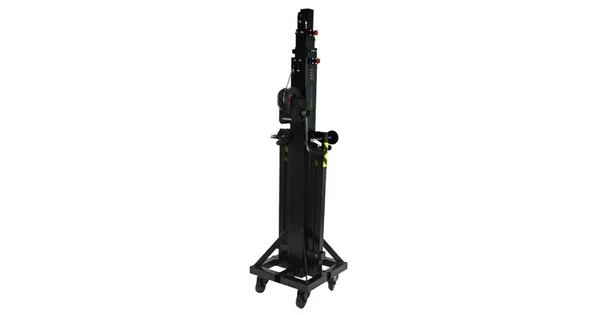

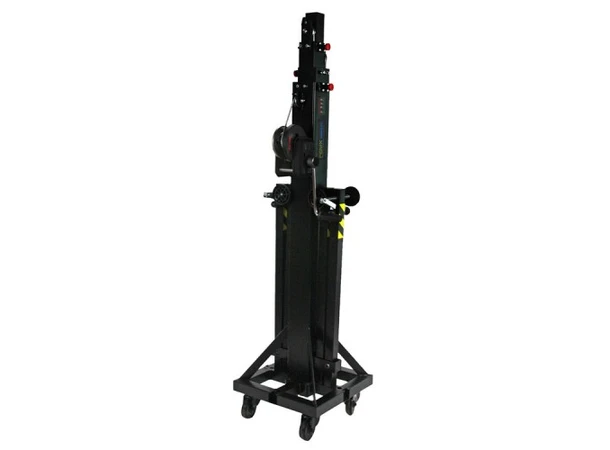

MEGARA 230

The MEGARA 230 lifting tower is a robust and reliable option for lifting lighting equipment, speakers and truss structures at events and large-scale audio visual productions. With an exceptional load capacity of 230kg and a maximum height of 5.30m, this telescopic tower offers solid and safe support for your lifting needs. Made of high quality materials and sturdy construction, the MEGARA 230 guarantees durability and stability during use. Its telescopic design allows for easy height adjustment and quick setup, adapting to different scenarios and specific requirements. In addition, it has an integrated safety system that provides additional support and ensures stability throughout the entire process. The MEGARA 230 stands out for its versatility and ease of transport. Despite its strength and load capacity, it can be dismantled and transported efficiently. Its compact, foldable design makes it easy to store and transport, saving space and time during assembly. With the MEGARA 230 lifting tower, you can confidently and efficiently lift heavy equipment, ensuring a professional set-up and an exceptional audio-visual experience. Whether for large concerts, corporate events or outdoor festivals, this tower offers the strength and stability to meet the toughest demands of the AV industry.

Technical Specifications

-Maximum height: 5,30m
-Maximum load: 230kg
-Height folded: 1,82m
-Weight: 78kg
-Winch: AL-KO 900 Compact 900kg
-Workspace: 1,44 x 1,44m
-Minimum charge: 25kg
-Material: Galvanized steel under EN 10305-5.
-Cable: Galvanized steel under EN 12385-4.
-Maximum cable load: 2.870kg
-Cable twisting resistance : 1.770N/mm²
-Cable diameter: 6mm
-Cable composition: 7×19+0
-Security system: External trigger in sections
-Bubble level: to vertically adjust the tower.
-Closed base area: 0,47 x 0,47m
-Leg attachment: Safety pins

Details

Base-leg trigger: The leg trigger allows it to be anchored to the base in a more agile way, through a push system that replaces the old and uncomfortable ring triggers.

Polyamide plates: This material offers greater resistance than metal and does not wear out. They rest on the surface without damaging the floor, carpets, etc.

Safety pins: The safety pins prevent the load from collapsing. In addition, they allow the selection of different heights and the raising of all the bars equally, distributing the load from the main bar to the last bar, which extends the useful life of the tower.

Winch: Our winches are manufactured by high-quality companies with recognized prestige. They are durable and long-lasting. In addition, they are oversized for greater safety and better cable traction.

Reinforced base: All our towers have a reinforced iron base capable of supporting large weights and high altitudes.

Level: The new location of the level at the base allows for more comfortable and precise tower stabilization.

Pulleys and pulley holders: Made of reinforced steel, they offer greater resistance.
