AT-06B

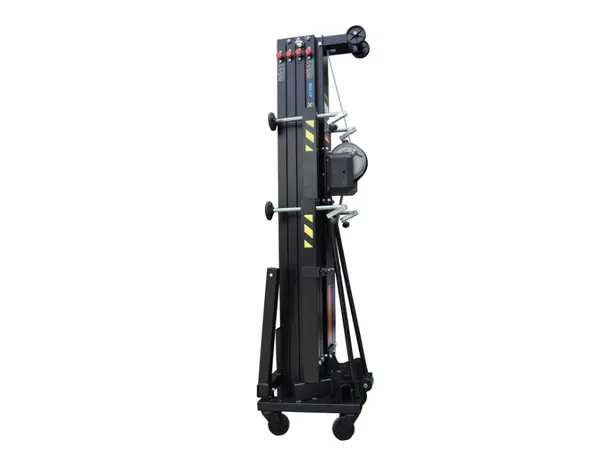

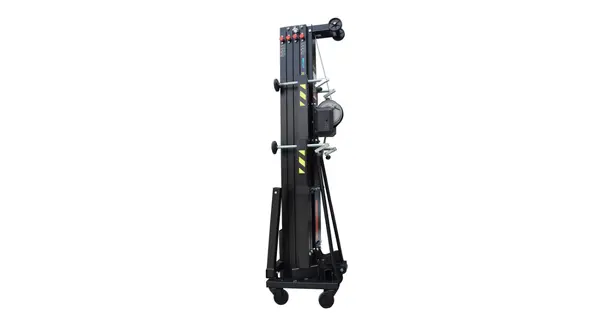

The AT-06B lifting tower, manufactured by FENIX Stage, is an efficient and robust solution for lifting loads from the floor at events and shows. Designed with a focus on ease of use and safety, the AT-06B offers reliable performance and a load capacity of up to 250kg. With a maximum height of 6.50m, this front loading tower is ideal for lifting line array systems, trusses and LED screens. Its aluminium structure ensures an optimal combination of strength and lightness, making it easy to transport and set up in different locations. The AT-06B is equipped with a winch that provides a powerful and safe lifting system. The galvanised steel wire rope meets quality and strength standards, ensuring smooth and reliable operation. To ensure safety during use, the tower is equipped with a safety system that includes an internal pendulum and an external trigger in sections. This provides additional protection and prevents accidental movement during load lifting. The legs of the AT-06B are equipped with safety anchors and triggers, ensuring a solid and stable base. In addition, the tower is equipped with a spirit level for precise vertical position adjustment. All in all, the AT-06B lifting tower is a reliable and versatile choice for lifting loads at events and shows. Its rugged design, load capacity and safety system make it an essential tool for entertainment industry professionals looking for high-level performance and safe operation.

Technical Specifications

-Maximum height: 6,50m
-Maximum load: 250kg
-Height folded: 1,76m
-Weight: 111kg
-Winch: AL-KO Type 900 Compact 900kg
-Workspace: 1,66 x 1,72cm
-Minimum charge: 25kg
-Material: Aluminium AL Si 6082 / T6
-Cable: Galvanized steel under EN 12385-4.
-Maximum cable load: 2.870kg
-Cable twisting resistance : 1.770N/mm²
-Cable diameter: 6mm
-Cable composition: 7×19+0
-Security system: Inner pendulum and external trigger in sections.
-Bubble level: to vertically adjust the tower.
-Closed base area: 0,48 x 0,48m
-Leg attachment: Safety pins

Details

Base Trigger: The base trigger allows you to anchor it to the base more agilely, using a push system that replaces the old and uncomfortable ring triggers.

Polyamide Plates: The plates are made of polyamide. This material offers greater resistance than metal and does not wear out. They rest on surfaces without damaging floors, carpets, etc.

Safety Triggers: The triggers prevent the load from collapsing. Additionally, they allow for selecting different heights and lifting all bars equally, distributing the load from the main bar to the last bar, which extends the tower’s lifespan.

Bubble Level: The location of the level at the base allows for stabilizing the tower more comfortably and accurately.

Reinforced Base: All our towers have a reinforced base capable of supporting heavy weights and high elevations.

Ring: Included in the AT and HERCULES series. It allows you to secure cables to any fixed surface or object to provide greater safety for the tower.

Transport Handle: Included in the AT and HERCULES series. It allows you to transport the tower both vertically and horizontally. Additionally, it serves as protection for the cable and the winch.

Roller: Included in the AT and HERCULES series. It allows you to transport the tower horizontally.

Winch: Our winches are manufactured by high-quality and reputable companies. They are durable and long-lasting. Additionally, they are oversized for greater safety and better cable pulling.

Fixation: Prevents the cart from moving during transport.

Safety Pendulum: Front-loading models include this internal safety system that automatically locks the tower when it detects a sudden drop in the profiles, in case of cable breakage or cut.

Trigger: Allows you to select different heights and distribute the load equally among all bars.
