TiRAY : Line Array

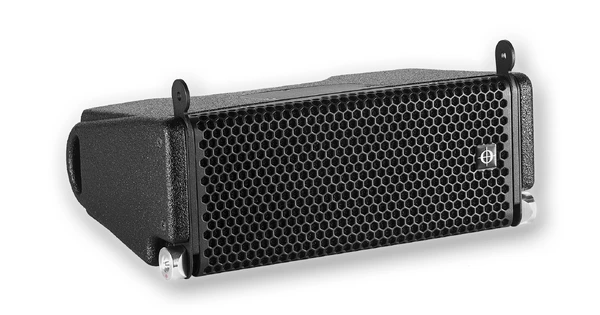

The TiRAY is an ultra compact, passive two-way full range line array module, designed for small venues where high fidelity sound and outstanding intelligibility are required. The system contains two 5" ultra low distortion cone speakers and a 5" neodymium planar wave driver.
Overview
TiRAY is CODA Audio’s pocket rocket line array: a remarkably small-footprint, super-light, two-way passive system which packs more of a punch than many competitors’ more sizeable equivalents.
This is largely down to its two 5” ultra-low distortion cone speakers, and unique 5” neodymium planar wave driver, which gives it its power and versatility. Designed for touring and installations, these boxes are perfectly suited to music bars and clubs, theatres, ballrooms, and auditoriums, as well as sports centres and Houses of Worship.

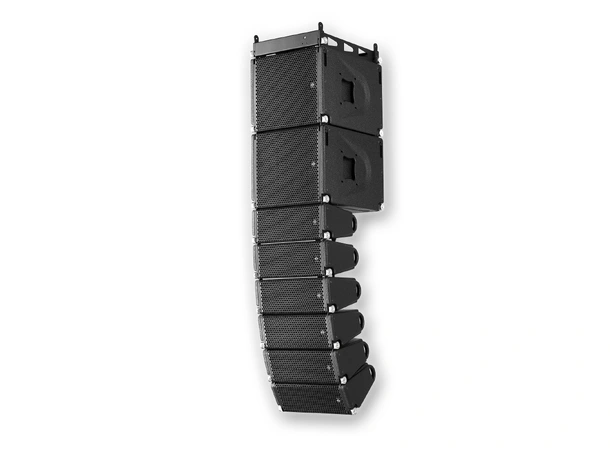

TiRAY is the ultimate, easy-to-rig, plug and play system – and it’s very easily expandable. Up to 24 units can be flown or ground stacked, thanks to CODA’s smart integrated rigging system, and a built-in passive crossover means multiple units can be driven by a single channel of CODA’s proprietary LINUS12C 4-channel DSP amplifier. Furthermore, the TiLOW 12″ bass extension overlaps the low range of TiRAY and paired subwoofers, enhancing the low frequency headroom and increasing the long-throw capability of the system. With additional CODA subwoofers, the range can be expanded down to 25 Hz.
TiRAY: Small. Powerful. Flexible.
Main Features
- Ultra compact size
- Frequency range: 70 Hz – 20 kHz (-6 dB)
- Power handling: 300 W (AES)
- Unique 5” neodymium planar wave driver
- Dual 5″ ultra low distortion cone drivers
- Wide horizontal coverage of 100°
- Full range capability
- Integrated rigging system for flown or ground stacked arrays
- Multiplex enclosure with polyurea coating for extreme durability and water protection
- Low frequency extension with the TiLOW bass extension
- System integration with LINUS Loudspeaker Management Amplifiers
