Overview

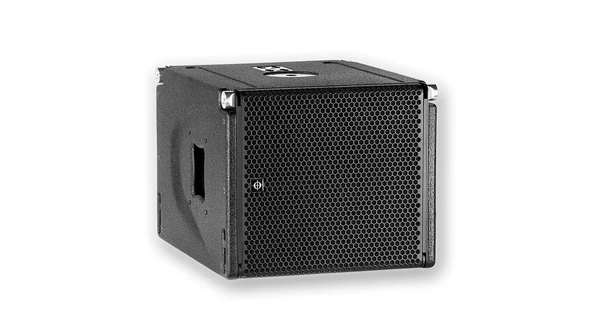

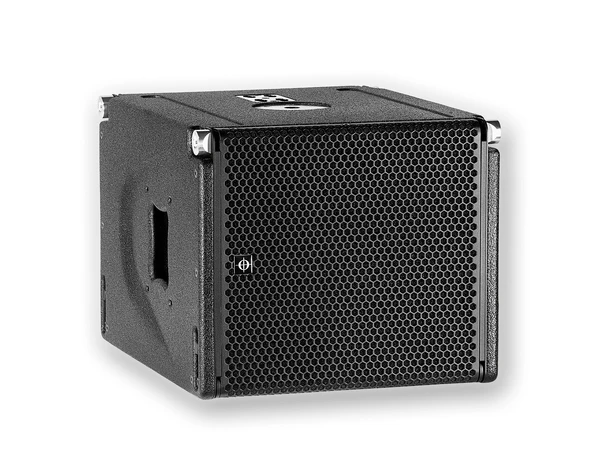

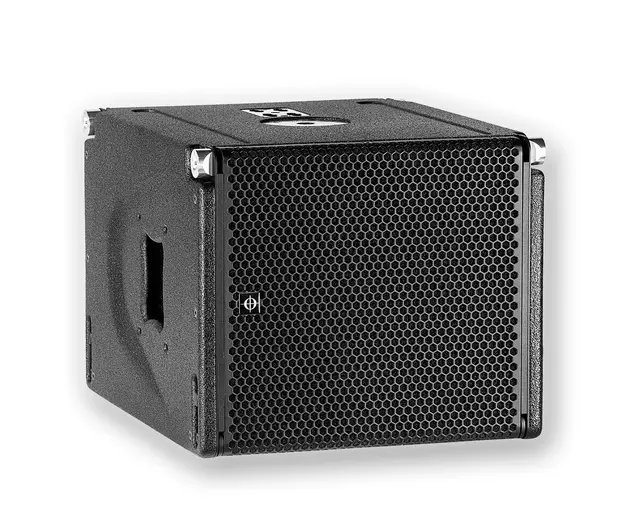

TiLOW is the super-compact bass extension for the TiRAY line array, which increases long throw capability of the TiRAY system, and enhances its LF headroom. First and foremost, TiLOW isn’t a sub: it does, however, operate between 44 Hz and 300 Hz, which overlaps both the low end of TiRAY and CODA’s subwoofers, providing more energy and control in the lower range of the system thanks to its 12″ driver and compact, vented exclosure, which provides a signature low-end punch to your sound.
TiLOW is very compact and versatile: fly it on top of a TiRAY array at a show to increase the long throw capacity of the system; fly it beside TiRAY to optimise horizontal directivity; set it in a TiRAY array between the cabinets to help avoid balcony reflections in a theatre; or groundstack it with TiRAY as a compact and powerful solution for smaller venues.
System Solution
The TiLOW is designed to work with dedicated CODA Audio LINUS12C amplifier as an integrated solution for DSP, amplification, network remote control and diagnostic.
The integrated solution ensures optimal performance and protection.
Applications
- TiLOW flown on the top of TiRAY array (44 – 300 Hz) – increases the array length and enlarges the system long throw capability
- TiLOW flown beside the TiRAY array (44 – 150 Hz) – optimises the system horizontal directivity
- TiLOW in array between TiRAY cabinets (44 – 300 Hz) – avoids balcony reflections
- TiLOW ground-stack with TiRAY (44 – 300 Hz) – compact and powerful solution for smaller venues
- Primarily designed for integration into the TiRAY line arrays, the TiLOW is also suited for a variety of applications in touring and installations where ultra compact size, high precision, deep bass with directivity control is needed.
Application Advantages
- Increases the long throw capability of TiRAY
- Enhances the systems low frequency headroom
- Overlaps both the low range of TiRAY and the ground subwoofers reducing the need for additional subs
- Provides 12” sonic signature
