OMNIO5 : Point Source
Ultra compact 2-way omnidirectional system, 5” ultra low distortion driver with triple demodulation rings

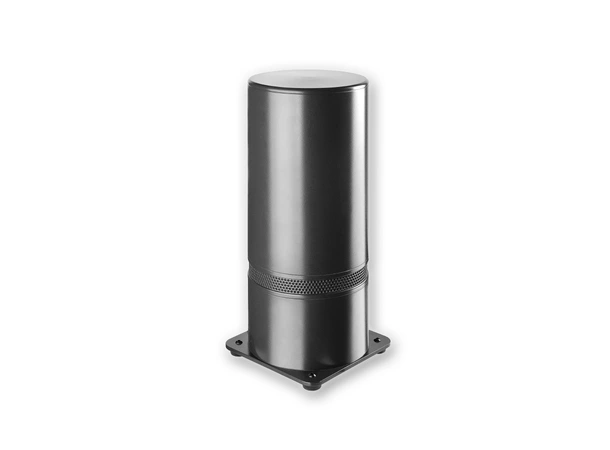

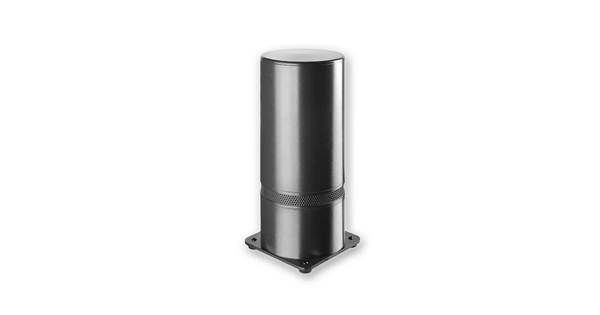

The CODA OMNIO5 is a passive omnidirectional 2-way 5”/1” coaxial loudspeaker system designed without compromise to provide coherent 360° wave front without hot spots in an ultra compact package.
Overview
The OMNIO5 is a passive omnidirectional 2-way 5”/1” coaxial loudspeaker system designed without compromise to provide coherent 360° wave front without hot spots in an ultra compact package.
The advanced waveguide design aligns the acoustical centres of the transducers to produce a true 360° uniform coverage with perfect time alignment between the components.
Advanced Driver Technology
At the heart of the OMNIO5 is the newly developed 5”/1” coaxial driver. The 5” cone driver covers the 75 – 1300 Hz range with high efficiency and smooth, linear response. Three aluminium shorting rings reduce intermodulation distortion; minimise induction variation while reducing thermal compression.
The coaxially mounted high frequency driver contains an ultra light 1” annular diaphragm providing exceptional transient response with very high efficiency from 1 kHz to 20 kHz.
This new transducer was engineered to radiate a single source, coherent wave front for superior dispersion control and high fidelity sound.
System Solution
The OMNIO5 is designed to work exclusively with dedicated CODA Audio LINUS amplifiers as an integrated solution for DSP control, amplification, network remote control and diagnostic. The integrated solution ensures optimal performance and protection.
The aluminium enclosure is optimised for outdoor use and is painted using a two-part, paint/sealant process,
first appling the colour application to the cabinet, followed by a clear, protective second coat sealant.
Options
All RAL colours on request. The overall height of the cabinet can be modified to fit specific mounting requirements.
An optional 100 V / 70 V version on request.
Applications
OMNIO5 can be used in a wide range of installation applications such as:
Theme parks, beaches, hotels, airports, retail outlets, sport events, museums, congress centers, bars, restaurants, swimming pools, private properties etc.
Main Features
- Ultra compact 2-way omnidirectional system
- Single point of source providing true 360° horizontal dispersion
- Frequency range: 75 Hz – 21 kHz (-6 dB)
- Power handling 150 W (AES)
- 5″ ultra low distortion driver with triple demodulation rings
- Coaxially mounted 1″ annual diaphragm superb quality HF driver
- Superb quality sound
- Solid aluminium enclosure
- Optimised for outdoor use (MG1 by default)
- Available in all RAL colours
- System integration with LINUS Loudspeaker Management Amplifiers
