KTV Soundbar : Point Source

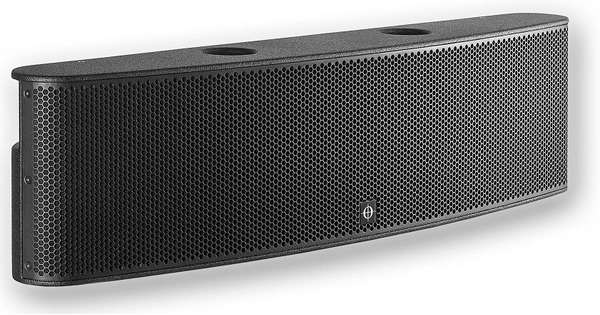

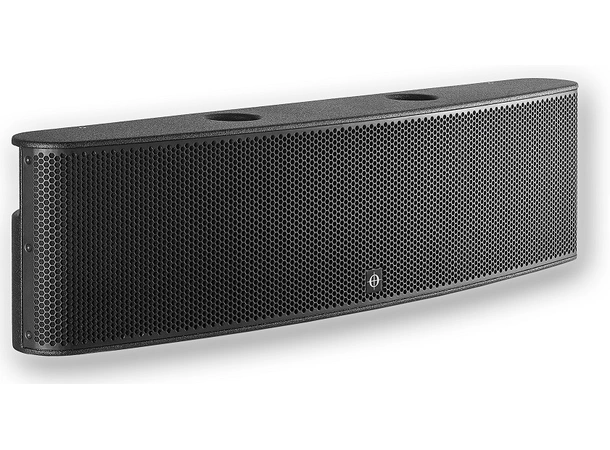

A complete, all-in-one 2.1 sound system designed without compromise to radiate a wide stereo image from a discreet, shallow box. The KTV Soundbar is a single unit, nearly 53" wide that can easily be mounted above or below the TV screen.

Overview

KTV Soundbar is a complete, all-in-one 2.1 sound system designed without compromise to radiate a wide stereo image from a discreet, shallow box. Unlike sound systems with multiple speakers, the KTV Soundbar is a single unit, nearly 53″ wide that can easily be mounted above or below the TV screen.

The cabinet contains an extremely long excursion 12” ultra low distortion cone driver covering the range 35 Hz – 200 Hz. The 3” voice coil is 32 mm high, ensuring linear excursion of 22 mm / pp at consistent magnetic force. Three aluminum shorting rings reduce inter-modulation distortion; minimising induction variation whilst reducing thermal compression. This design reduces dramatically the distortion of a typical subwoofer at longer excursion levels, and improves the overall sound quality providing deep and punchy bass.

Double 8”/1.75” coaxial drivers are employed for the left and right channels. The 8” cone midranges cover the 200 – 1800 Hz range with high efficiency and smooth, linear response. The high frequency drivers contain an ultra light 1.75” annular diaphragm providing exceptional transient response with very high efficiency from 1.6 kHz to 20 kHz. This high performance transducer was engineered to radiate a single source, coherent 100° wave front for superior dispersion control and high fidelity sound.

Main Features

• Large stereo image from a single, shallow unit
• True full range performance (35 Hz – 21 kHz)
• Power handling: 1000 W (AES)
• 3-way coherent point source technology
• Double 8”/1.75” coaxial driver and 12” extremely high excursion cone driver
• Wide coverage of 100°
• Superior sound quality
• Optimised for near-field applications
• High output before feedback
• Integrated M6 fixing points
• System integration with LINUS Loudspeaker Management Amplifiers
