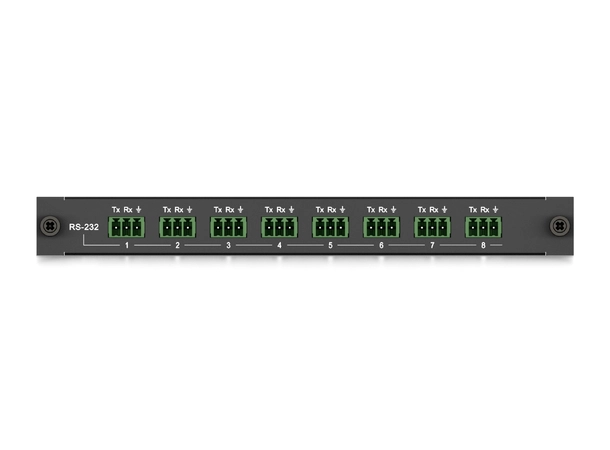

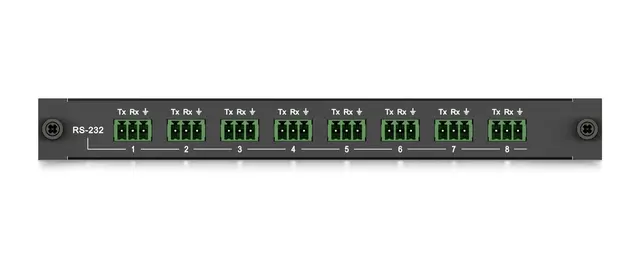

The PRO-8RS232 RS-232 control board offers 8 x bi-directional RS-232 ports for direct serial communication to compatible Blustream HDBaseT™ receivers. The PRO-8RS232 also features quick release card module fittings allowing simple installation into the Custom Pro Matrix hub.

Key Features:

• Features 8 x Bi-directional RS-232 ports for serial communication to corresponding Blustream HDBaseT™ zone receivers
• Quick release card module fittings allowing simple population of input and output cards in Custom Pro Matrix Hub

Specifications:

• RS-232 serial ports: 8 x 3-Pin Phoenix connector
• Card Dimensions (W x H x D): 190mm x 22mm x 177mm
• Dimensions Including Connections (W x H x D): 190mm x 22mm x 188mm
• Shipping Weight: 0.5kg
• Operating Temperature: 32°F to 104°F (0°C to 40°C)
• Storage Temperature : -4°F to 140°F (-20°C to 60°C)
