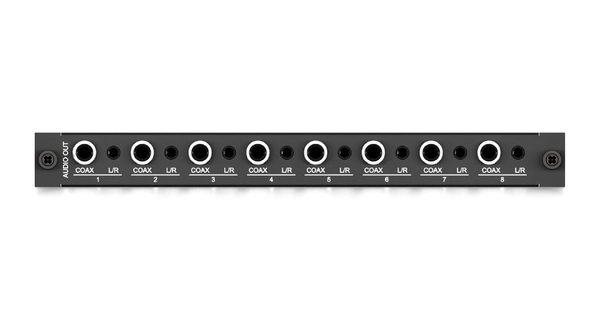

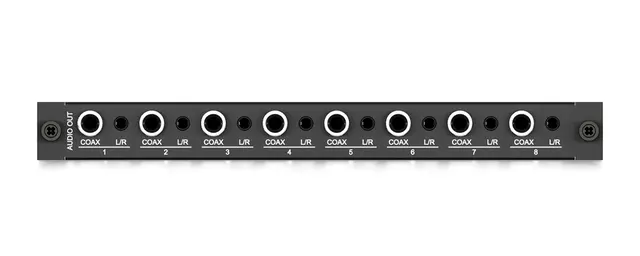

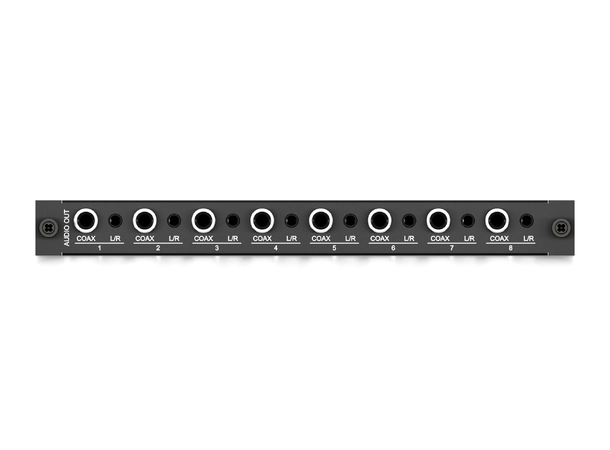

The PRO-8AB audio breakout board offers 8 x simultaneous coaxial digital and analogue L/R audio outputs and features quick release card module fittings allowing simple installation into the Custom Pro Matrix hub.

Key Features:

• Features 8 x HDMI audio breakouts from corresponding video zone outputs to coaxial digital and analogue L/R audio outputs (no DSP)
• Quick release card module fittings allowing simple population of input and output cards in Custom Pro Matrix Hub

Specifications:

• Audio Output Connectors: 8 x RCA (S/PDIF), 8 x 3.5mm stereo jack (L/R)
• Card Dimensions (W x H x D): 202mm x 22mm x 177mm
• Dimensions Including Connections (W x H x D): 202mm x 22mm x 188mm
• Shipping Weight: 0.5kg
• Operating Temperature: 32°F to 104°F (0°C to 40°C)
• Storage Temperature: -4°F to 140°F (-20°C to 60°C)
