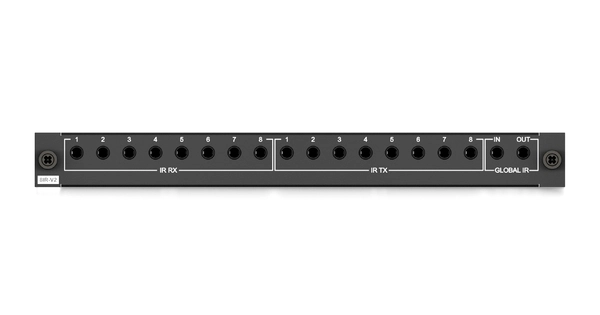

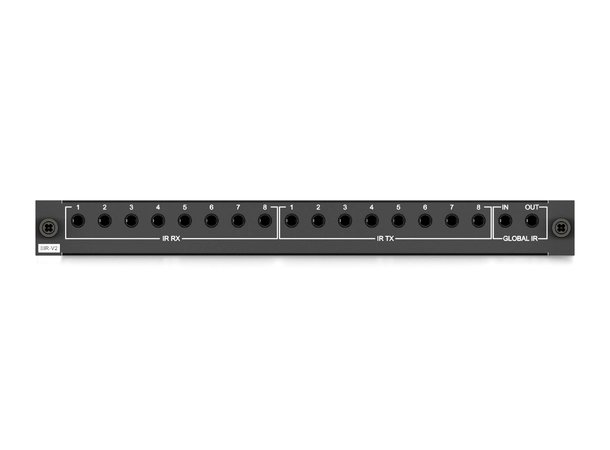

The PRO-8IR-V2 IR routing board offers selectable 5V or 12V IR distribution with 8 x IR outputs for routed control of local source hardware and 8 x IR inputs for distribution of IR to compatible HDBaseT™ receivers. The PRO-8IR-V2 also features quick release card module fittings allowing simple installation into the Custom Pro Matrix hub.

Key Features:

• 8 x IR outputs for routed control of local source hardware
• 8 x IR inputs for distribution of IR to compatible HDBaseT™ receivers
• Selectable 5V or 12V IR distribution (12V IR requires compatible IR hardware and HDBaseT™ receivers)
• Quick release card module fittings allowing simple population of input and output cards in Custom Pro Matrix Hub

Specifications:

• IR Input Ports: 9 x 3.5mm stereo jack
• IR Output Ports: 9 x 3.5mm mono jack
• Card Dimensions (W x H x D): 202mm x 22mm x 177mm
• Dimensions Including Connections (W x H x D): 202mm x 22mm x 188mm
• Shipping Weight: 0.5kg
• Operating Temperature: 32°F to 104°F (0°C to 40°C)
• Storage Temperature: -4°F to 140°F (-20°C to 60°C)
