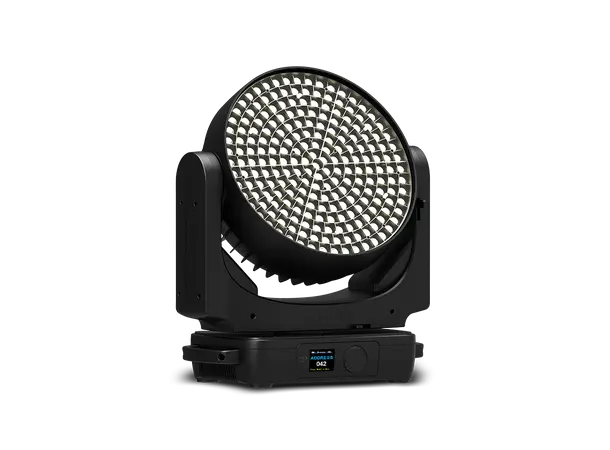

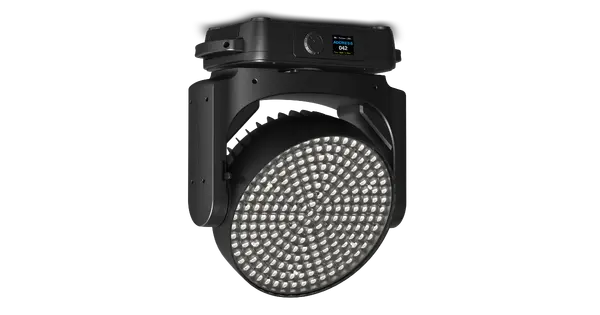

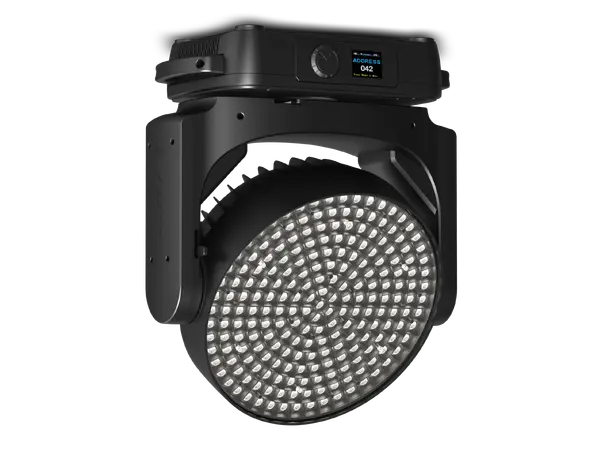

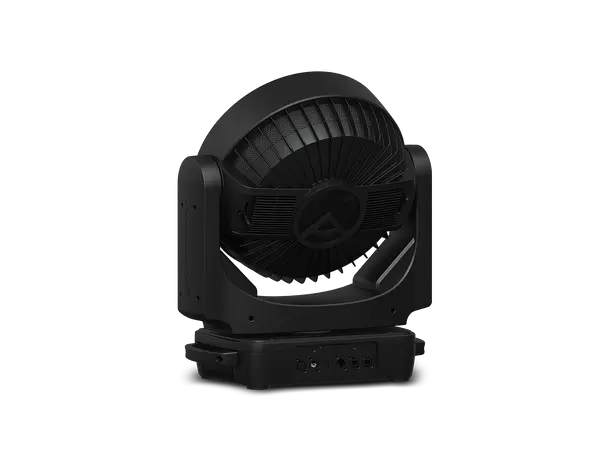

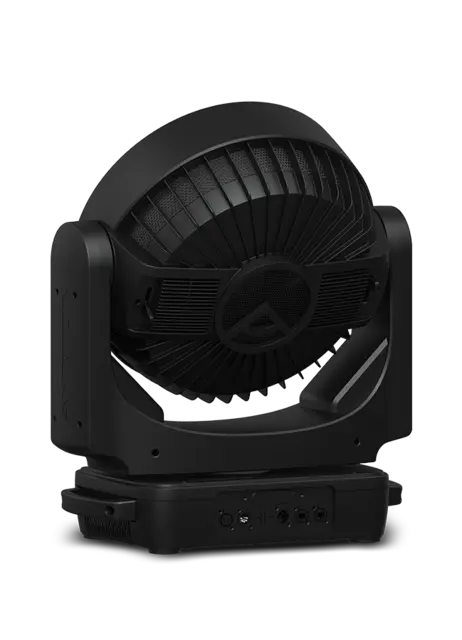

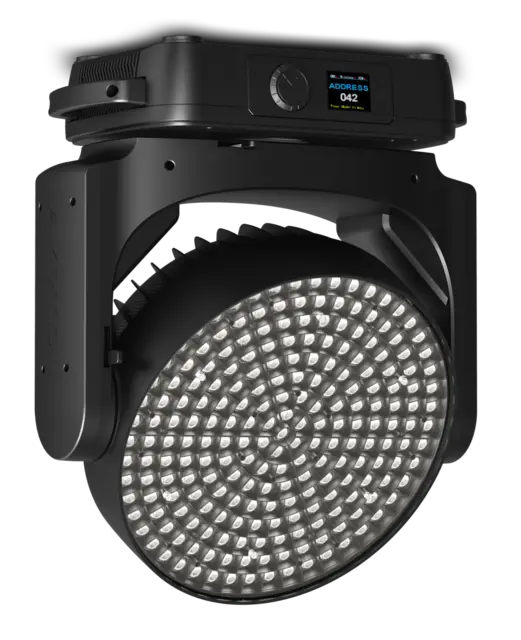

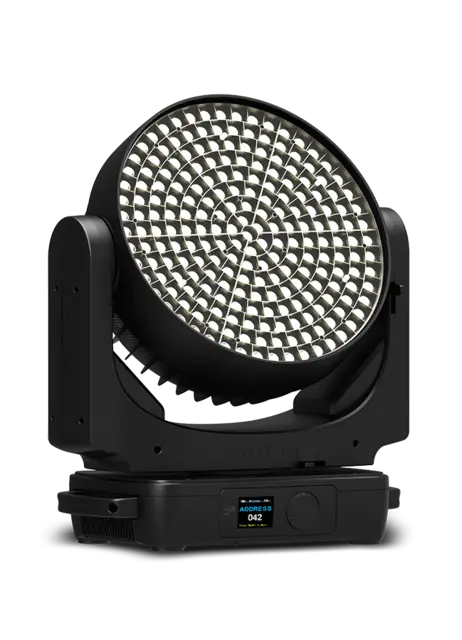

Ayrton WILDSUN K9 Wash CRI=92, TLCI=97

27 Kg, 63' lumen, 10° - 60°, 5700K

Varenr: 013940
92 916,-eks mva.
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om kundestatus.
Ikke på lager (21 dager)
BeskrivelseTeknisk infoDokumenter
Beskrivelse

The new WildSun K9 Wash is a highly evolved variant of the WildSun K25 TC, specially geared to shooting TV video and broadcasting in high-definition.

With a brand new sleek design and a visual footprint 20% smaller, its weight has been drastically reduced by 25%, allowing for better integration. This unique LED luminaire measures up to the classic Fresnel HMI 4000 lights in terms of pure output. Fitted with 217 next-generation high-output LEDs, the luminaire delivers more than 60,000 lumens of overall output with 40% less energy consumption. No lamp replacement is necessary. Producing extremely high-quality light without flickering, this luminaire achieves a colour temperature perfectly calibrated at 5700K and a colour rendering index greater than 92. WildSun K9 Wash is particularly suitable for sporting events, fashion shows, car shows, or any prestigious events requiring powerful, high-quality light and perfectly rendered colour.

WildSun K9 Wash is a powerhouse of technology and innovation. With the same basic specifications as WildSun K25 TC, it is equipped with powerful tri-phase stepper motors that allow fast, accurate and silent positioning.

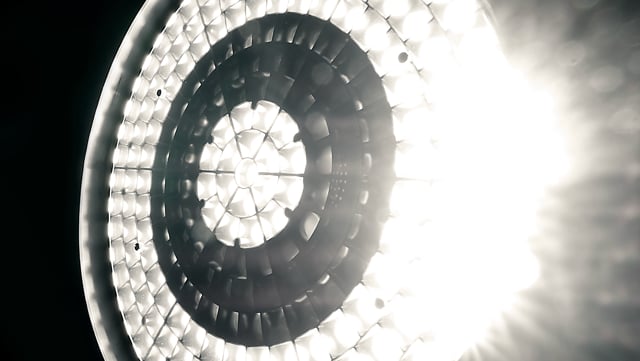

Ayrton developed special silicone-based high-output optics for this projector, ensuring perfect stability over time. Its optical zoom has a 6:1 ratio with a zoom range of 10° to 60°. Luminous intensity can be fine-tuned using a precision electronic dimmer, for even greater flexibility of use. The light fixture output is equipped with a protective holographic filter in polycarbonate and an honeycomb system to prevent glare. The user can control each concentric circle individually to adjust the luminaire’s power accordingly or create dynamic effects for stage lighting.

Teknisk info

Produktinformasjon

Colours
  • Color rendering index greater than 92
  • Monochromatic daylight source 5700k calibrated
Compliance
  • EMC Directive 2014/30/EU
  • LVD Directive 2014/35/EU
Control
  • ArtNet™ & sACN protocol through Ethernet cable
  • Choice of 2 DMX modes (from 14 to 30 DMX channels)
  • DMX 512 protocol, DMX cable or a wireless system
  • DMX-RDM compatible
  • Stand-alone mode and Master/Slave modes
  • Local control panel, with LCD display
Cooling System
  • Advanced cooling system
  • Self-adjusting variable speed fans
  • Safety protection against temperatures excesses
Dimmer / Strobe
  • Electronic dimmer from 0 to 100%
  • Strobe effect, 1 to 25 flashes per second
Farge Sort
Hardware Features
  • ethercon RJ45 IN / OUT connectors for ArtNet™
  • Integrated wireless CRMX TiMo™ RDM receiver
  • powerCON TRUE1 male connectors
  • XLR 5 pin male and female connectors
  • Graphic LCD display
  • Clicking jog wheel to set functions
  • Excess temperature protection
Housing
  • Heatsinks in aluminium
  • Moulded covers in self-extinguishing PVC
  • Two sides handles for transportation
  • Moving-head skeleton, aluminium and steel metal
  • Base in die-cast aluminium
  • Four heavy-duty feet for better stability
  • IP20 protection rating
  • Exterior finish: black (Carbon)
Installation
  • Mounting points: four 1/4 turn locking fittings
  • Two Omega 1/4 turn brackets
  • Safety cable attachment point
Light source
  • 217 mono-chip High-Power LED sources
  • CRI: up to 92
  • Flicker-free source management
  • Rated life: L70: up to 40,000 hours
  • Total luminaire output: up to 63,000 lumen
Movement
  • High-resolution stepper motors
  • Moving-head operated with either 8- or 16-bit
  • Moving-head range: 540° (pan), 270° (tilt)
  • Pan and tilt automatic repositioning
  • Extremely accurate positioning
Operating parameters
  • Maximum temperature (Ta max): 45 C (113 F)
  • Minimum temperature (Ta min): -10°C (14°F)
  • Minimum usage distance: 3.0 m (9.84 ft)
  • Operating positions: floor or fixed to support
Optics
  • 1 element 6:1 zoom high-resolution optic system
  • 217 individual lenses
  • 384 mm front lens cluster
  • Beam aperture: 10° to 60°
  • Fast motorised linear zoom
Power Supply
  • 120 to 240 Volts – 50/60Hz
  • Power: 1,500 W maximum
  • Electronic supply with active PFC
Size
  • Flight-case foam: 580 x 611 x 345 mm (l x h x d)
  • Product: 530 x 625 x 280 mm (l x h x d)
Software Features
  • Local DMX addressing of luminaire
  • Remote DMX addressing of luminaire
  • Information menu
Weight Product: 26.9 kg
