Key Features

Construction
• Robust extruded aluminium housing
• Manual Zoom Knob
• Barndoors included

Optics
• Adjustable Beam Angle: 14-30°
• 6-inch/150mm Fresnel Lens

Source
• Light Source: 1x 50W WW COB-LED
• Color Temperature: 3000K

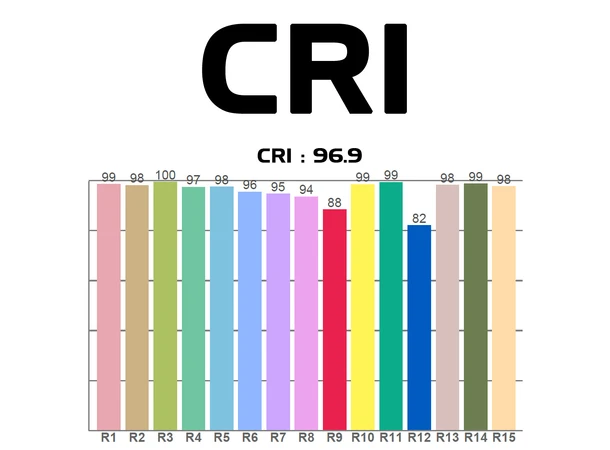

• CRI: 96.9

Product Information

SKU: 1237000173

GTIN: 818651020960

HS-Code: 9405423990

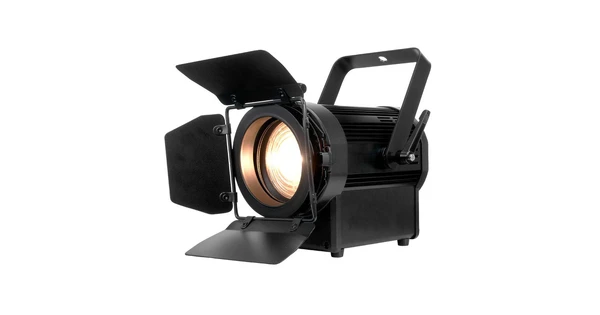

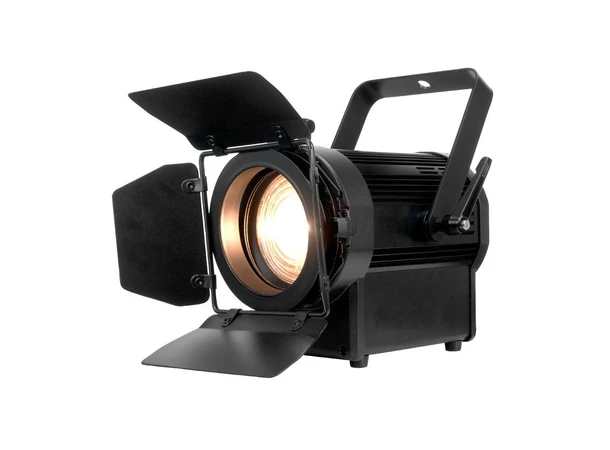

Part of the Encore stage lighting series, the Encore FR50Z lighting fixture is equipped with a 6-inch Fresnel lens and powered by a 50W LED engine. It produces a white wide, soft-edged beam for stage and theatre use at 3000K. It comes with barn doors to adjust the beam dispersion and a manual know to change the beam angle from 14 to 30 degrees.

The Encore FR50Z has a 4-button LCD operational menu, 3-pin DMX In/Out and Locking Power In/Out to daisy chain the power from one fixture to another.

Source

• • Light Source: 1 WW COB-LED
• • Individual LED wattage : 50W
• • Average LED lifetime : approximately 50,000 hrs.
• • Color Temperature: 3000K
• • CRI: 96.9

Optics

• • Adjustable Beam Angle: 14-30 degrees
• • 6-inch/150mm Fresnel Lens

Control

• • 2 operational Modes : Manual WW Dimmer Mode and DMX Control
• • 6 DMX Modes: 1, 2, 2-2, 3, 2-3 & 4-channel
• • RDM compatible
• • 16bit Electronic Dimming: 0 - 100%
• • 6 selectable Dim Modes (Standard, Stage, TV, Architectural, Theatre & Stage 2)
• • Adjustable Dim Curves (Linear, Square, Inv. Square and S-Curve)
• • Adjustable Fanmodes (Auto, Low, High)
• • LED pulse and strobe effect

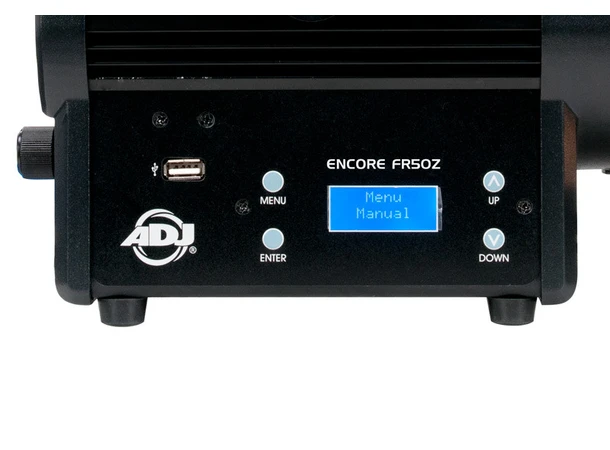

• • 4-button, DMX digital display on rear panel

Colors

• • Warm White 3000K

Construction

• • Robust extruded aluminium housing
• • Manual Zoom Knob
• • Barndoors included

Electrical

• • Multivoltage 100-240V 50/60Hz
• • Power Consumption: 50W

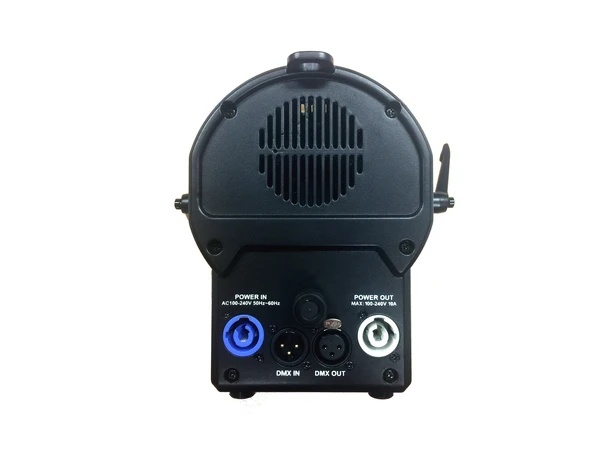

Connections

• • 3-pin Locking DMX In/Out connections
• • Locking Power In/Out connections
• • USB port for Firmware Update

Dimensions (LxWxH)

• Without Barndoors: 232.8 x 238.05 x 298.25mm
• With Barndoors: 339.8 x 238.05 x 298.25mm

Weight

• Without Barndoors: 3,8 kg.
• With Barndoors: 4,3 kg
