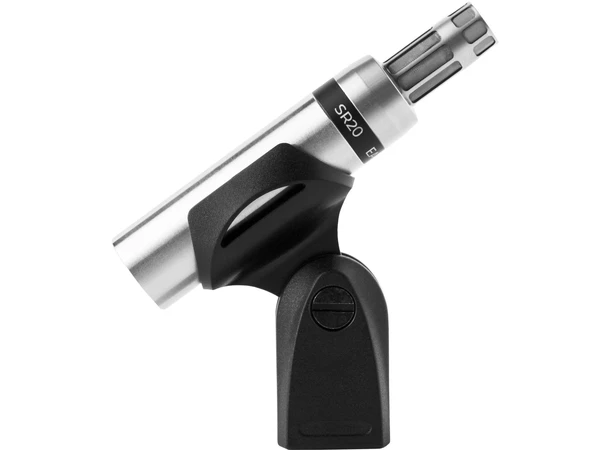

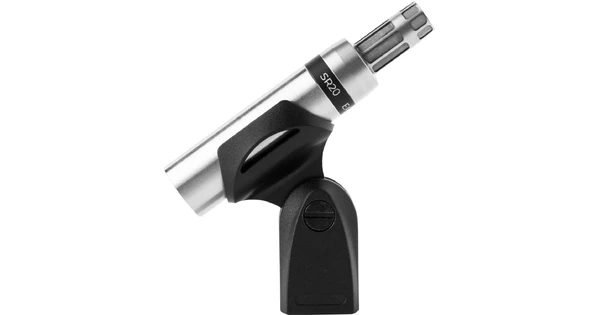

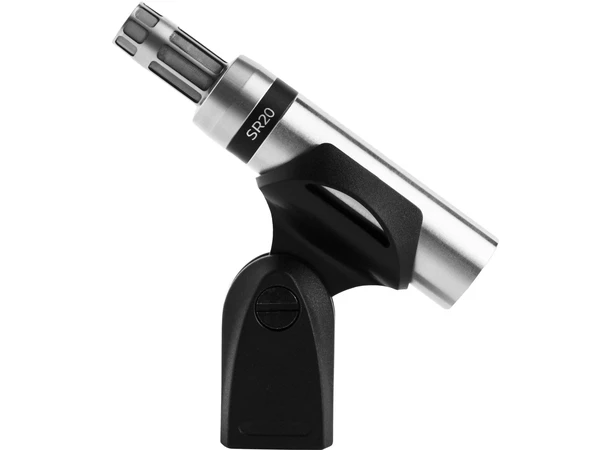

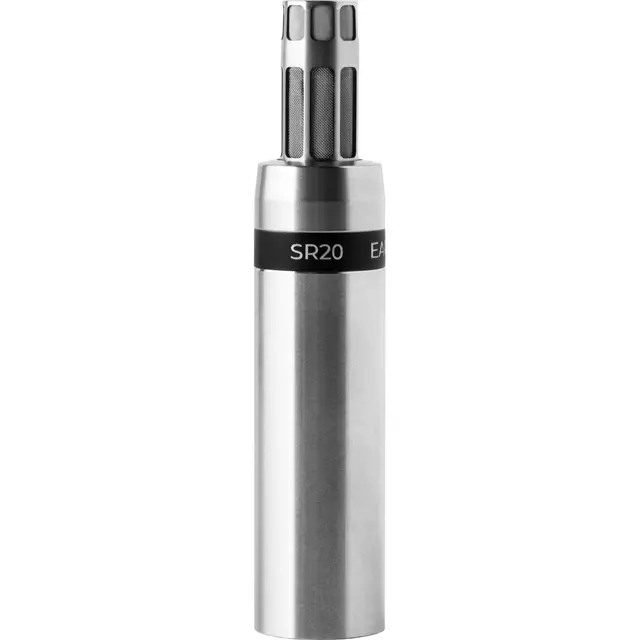

SR20 Gen 2
Focused
Excellence
SR20 Gen 2’s tight cardioid pattern enables focus, detail and musicality at the front with astounding rejection from the back, across all frequencies.
Our Most Mix-Ready
Instrument Microphone

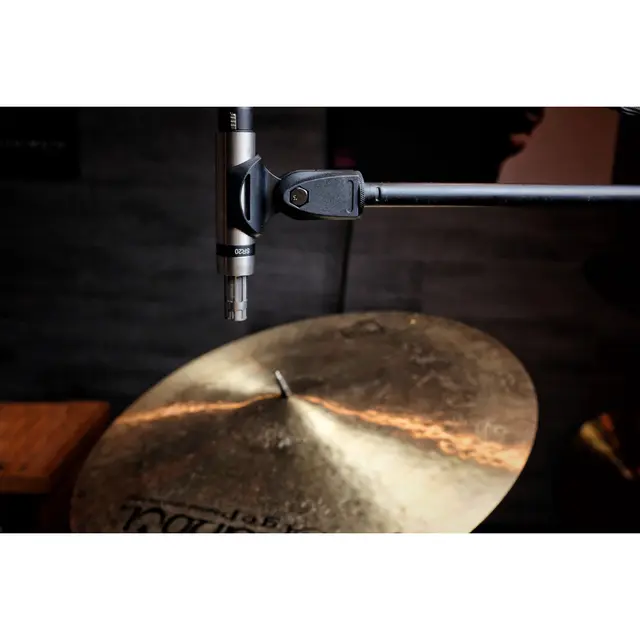

Guitar cabs. Cymbals. Percussion. Brass. Sax. We dare you to find a loud source that SR20 Gen 2 doesn’t sound great on.
SR20 Gen 2 does it all while making it look easy. It’s cutting-edge technology that feels like a secret weapon for your mix.
Specifications
| FREQUENCY RESPONSE |
20Hz – 20KHz |
| POLAR PATTERN |
Cardioid |
| SENSITIVITY |
-50 dBV/Pa (3.2 mV/Pa) |
| MAX ACOUSTIC INPUT |
155 dBSPL |
| OUTPUT |
XLR |
| MINIMUM LOAD IMPEDANCE |
1kOhm |
| SELF NOISE |
25 dBSPL (A-Weighted) |
| POWER REQUIREMENTS |
48V, 6mA |
| DIMENSIONS (L X D) |
4.14 in x 0.860 in / 105.15 mm x 21.84 mm |
| WEIGHT |
0.25 lbs / 0.10 Kg |
