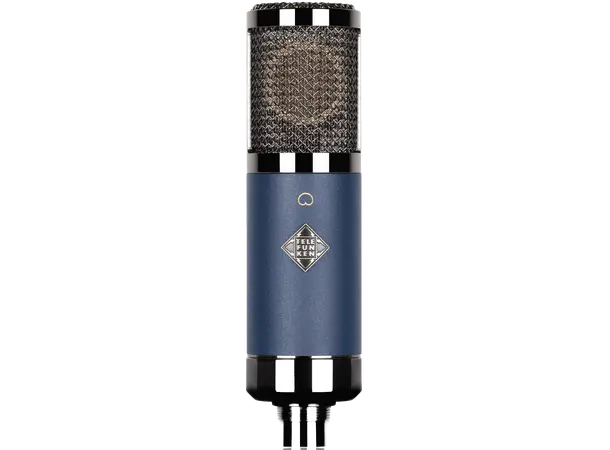

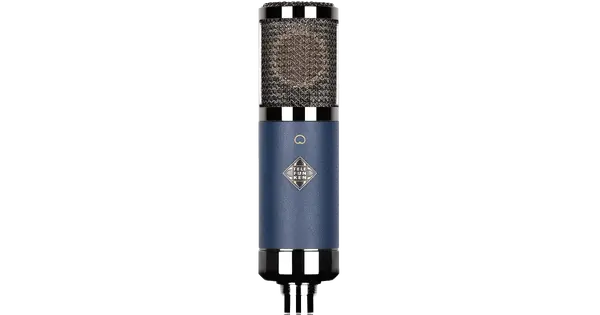

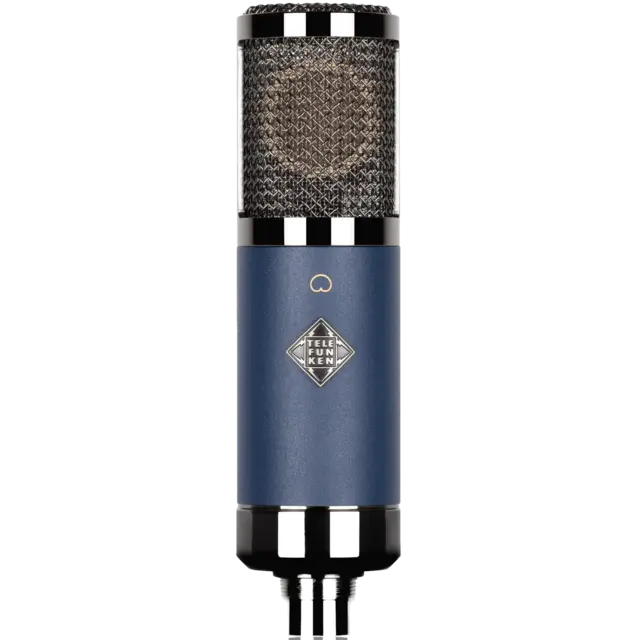

TF11
Blending an Austrian-inspired voicing similar to the legendary C12 with modern FET high performance, the phantom-powered TF11 exhibits a beautifully open and detailed frequency response with exceptionally fast transient response, high SPL handling, and low self-noise. The compact, cardioid only TF11 is versatile, portable, and dependable for all recording environments from home to studio to stage.
Circuit Design
The TF11 features a unique combination of circuit elements shared with other TELEFUNKEN Elektroakustik designs. The CK12-style edge terminated capsule is a single membrane version of the capsule featured in the TF51. The amplifier is a unique proprietary take on the classic FET microphone amplifier similar to the M60, coupled with a custom large format nickel-iron core transformer made in the UK by OEP/Carnhill. Premium through-hole components include UK-made polystyrene film capacitors, Nichicon Fine Gold electrolytic capacitors, and a high-performance, ultra-low-noise JFET amplifier.
Accessories

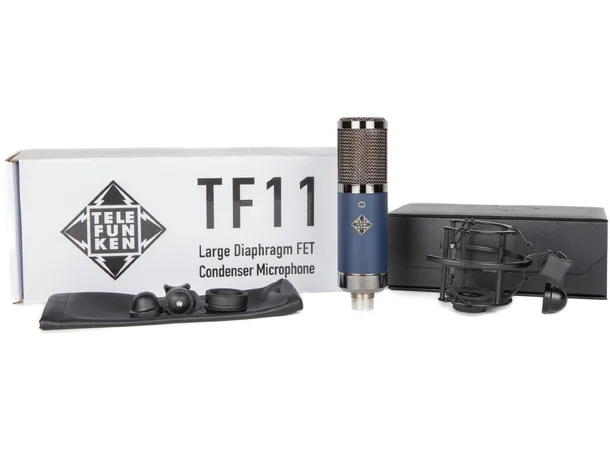

Every TF11 FET microphone system comes with a MC11 Microphone Case, M 703 Shock Mount, M 782 Stand Mount, and Microphone Sleeve.
Key Features:
Cardioid polar pattern
Compact travel and budget friendly design
Open and detailed tone with fast transient response
Designed and assembled by hand in the USA
High SPL handling, low noise phantom-powered FET amplifier
CK12-style capsule and UK-made OEP/Carnhill transformer
Applications:
Vocals: Pop, Rock
Live Sound: Drums, Piano, Acoustic Instruments
Drums: Overheads
Acoustic Guitar
Cello, Upright
Specification:
Type: FET Condenser
Polar Pattern: Cardioid
Frequency Range: 20 Hz – 20 kHz, ±3 dB
Power Source: +48V Phantom Power
Capsule: TK51S – Edge Terminated Large Diaphragm, Single Membrane
Transformer: OEP/Carnhill T218
Sensitivity: 14 mV/Pa, ±1 dB
THD at 1kHz, 1 Pa (Amplifier): < 0.01%
Output Impedance: 110 ?
Maximum SPL (for 1% THD): ? 135 dB
S/N Ratio: 90 dBA
Self Noise (Amplifier): 4 dBA
Dimensions: 175 mm L x 46 mm Dia
Weight: 545 g
Included Accessories: Shock Mount, Stand Mount, Mic Sleeve, Mic Case
Shockmount: M 703, M 782
Case: MC11
Box/Bag: MS01
