True Color™ Haze Generator
Ultimate 3000
The 5th generation of the Ultimate family

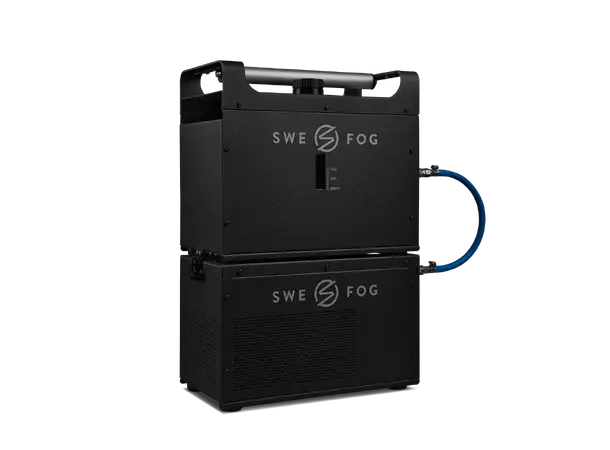

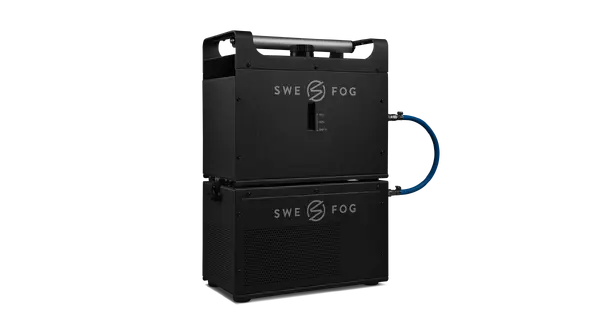

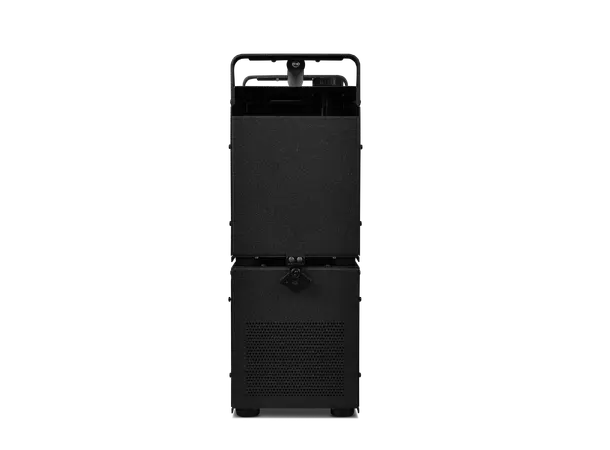

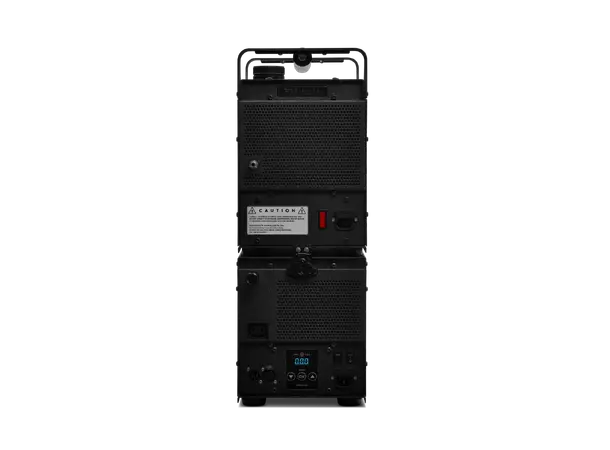

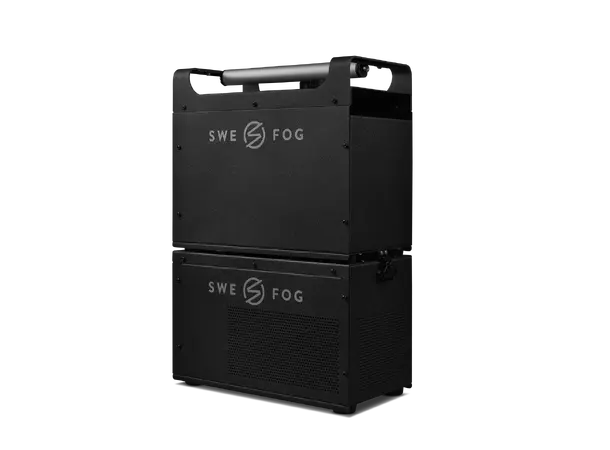

The 5th generation of the Ultimate Series feature a complete toolbox for today’s lighting designers. The perfectly balanced atmospheric haze effect envisioned for lighting productions is always reliably achievable. By separating the compressor and haze units, the Ultimate 3000 operates quietly on stage and generates a unique atmospheric canvas with refined gain of optical clarity, light reflectivity and color brightness. High output together with the Crystal Haze fluids’s long hang time and small particle size effortlessly brings the preferred calm haze to your venue.
Key features of the Ultimate 3000
-
True Color™
-
Colours are key for great lighting design both live and recorded. TrueColour fluids deliver the full palette from smooth and subtle pastels to rich and vibrant saturated colors. Thus, ensuring that costumes, set pieces and ambience tones will render naturally in true colors. Bright vibrant colors to soft pastel shades, and varieties of warm amber shades maintain high CRI values.
-
Calm Haze
-
True Color™ systems help you create calm atmospheric effects with little preparation. Leaving the hazer on for some time before the show allow even density levels of haze to be equally distributed throughout the stage area. The refined optical clarity and colour rendering originate from the TrueColour haze particles and calmness of the atmospheric effect. Hence, preventing irregularities and incomplete effects. Smooth dimming and precise degrees of zoom are accurately experienced on calm haze.
-
High-end quality materials
-
Ultimate 2000 is handcrafted and manufactured in Sweden. The compact hazer is assembled and tested by our experienced technicians, for complete effect consistency and durability throughout your career or when renting it. With the True Color™ series of Swefog hazers even the last show will look as initially designed.
Specifications
Fluid consumption 0.05 ltr per hour
Reservoir capacity 2.0 ltr (0.53 US gallon)
Continuous running time 40 hours
Haze colour True white
Particle size 0,7 – 1 micron
Continuous output X m3 (Y ft3) per minute
Included air hoses 1 x 0.5 m (20”) and 1 x 10 m (33 ft)
Optional air hoses 16 m (52.5 ft) and 25 m (82 ft)
Warm-up time None
Fluid types Crystal Haze Fluid, Ultimate C Fluid & C-XL Fluid
Operating voltage 230 V, 50 Hz
Power consumption haze unit 40 W
Power consumption compressor unit 540 W
Dimensions & weight
Compressor unit
Length 41.7 cm (16.4”)
Width 20.3 cm (8.0”)
Height 29.3 cm (11.5”)
Weight 14.7 kg (32.4 lb)
Haze unit
Length 41 cm (15.5”)
Width 20.3 cm (8.0”)
Height 33.5 cm (13.2”)
Weight 11.9 kg (26.2 lb)
Both units together
Length 41.7 cm (16.4”)
Width 20.3 cm (8.0”)
Height 57.5 cm (22.6”)
Weight 26.6 kg (58.6 lb)
