WMC Wireless Motor Controller

Description

The WMC Wireless Motor Controller is a small and easy-to-use device designed as a replacement for cable motor controllers (pendants). With this add-on, it is possible to make a motor controller wireless.

This device allows riggers to control direction and the timing of movement of one single hoist or a complete hoist system. They can use a wireless remote controller or local control switches.

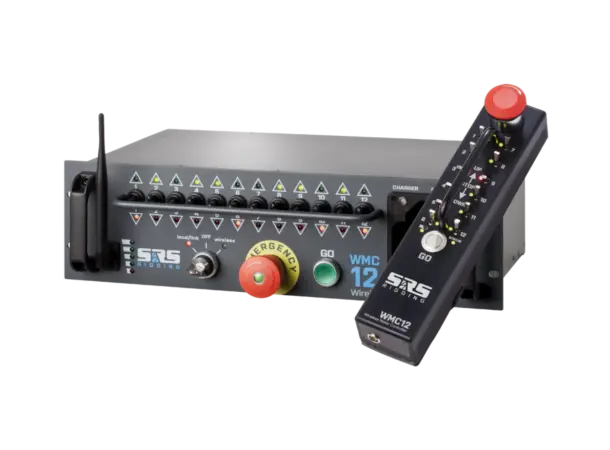

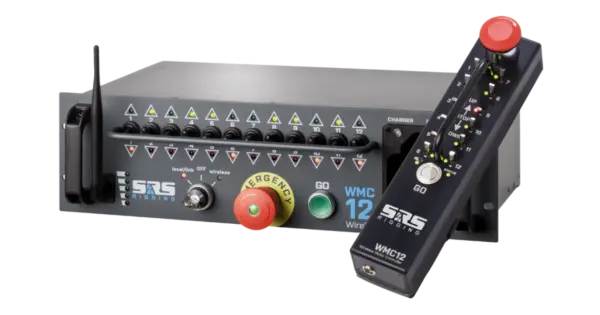

The complete system consists of these two devices:

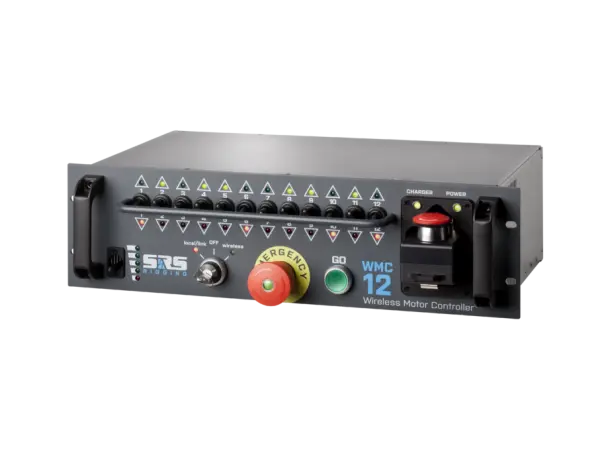

BASE Unit

• Wireless receiver
• Function key switch with OFF/LOCAL/WIRELESS control modes
• Charger and storage for the REMOTE unit
• LED indication for GO button, wireless signal presence, charger status

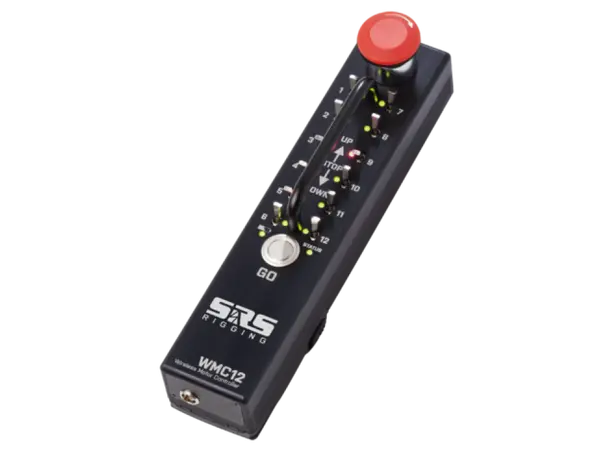

REMOTE Unit

• Wireless transmitter
• Linkable with up to 24 channels on hand
• Light and solid construction made from dural that fits easily to hand
• Integrated antenna inside the body
• Standard Motorola Li-Ion battery
• Battery status indication LED
• Beeper alarm function
• Device status LED
• Metal belt clip

Specification

• 2.4GHz working frequency with dual encryption
• Switches with UP/STAY/DOWN function
• GO and Emergency STOP button
• For use with GMC-LV series
• Unit has only DATA communication port; for dry contacts, check WMC controller
• Power supply: AC230V / 50Hz / 16A max
• 3U 19’’ box
• Weight: 12.5kg
