Specification

• Dimensions: 483 x 88 x 453 mm (WxHxD)
• Weight: 11.8 kg
• Number of etherCON connectors: 24 pcs

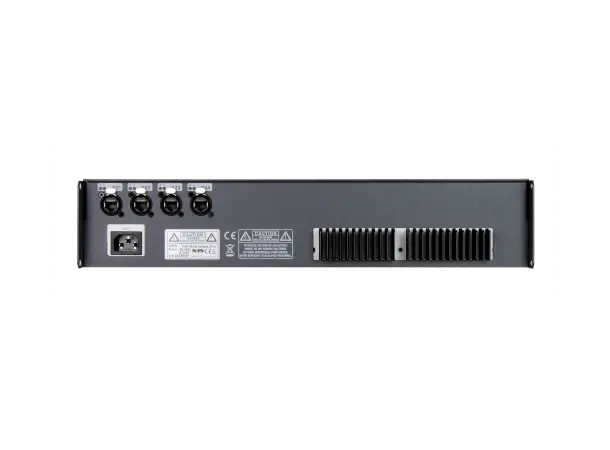

  (20 pcs - front & 4 pcs - back)
• PoE: 195W
• Number of optical connectors: 4 pcs
• Types of optical connectors: check the "Variants" section
• Speed of individual etherCON ports: 1Gb/s
• Speed of individual fiber ports: 10Gb/s
• Speed of 4 linked fiber ports: 40Gb/s

Description

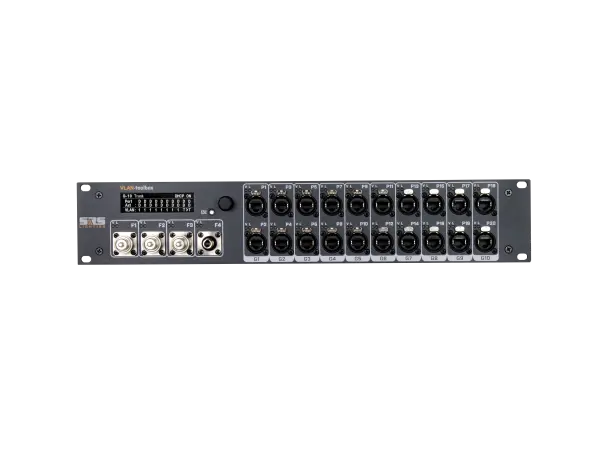

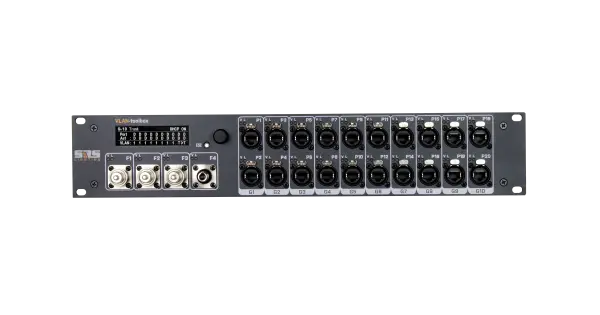

The SRS Lighting VLAN-toolbox is a user interface for a switch; very explicitly intended to significantly simplify and speed up controlling the switch.

Features:

• Simple way to physically separate data streams within a switch for improved performance in terms of data speed and clearer organization in the form of VLANs.
• Simple, reliable way to apply trunking for data transport between switches.
• Simple, reliable way to apply link aggregation (linked ports) for high data speeds and/or redundancy.
• No in-depth knowledge of data networks and IT in general required.
• Prevents incorrect settings that can lead to blocked access to the switch's controls.
• Standalone use; no laptop or other external equipment required to make settings.
• Monitor for power consumption when applying Power over Ethernet (PoE)
• Monitor for port load
• Cable tester
