SRS DP6-8  1x6kW Dimmer, fader DMX 3/5pin in/out, CEE32/3p SRS DP6-8  1x6kW Dimmer, fader DMX 3/5pin in/out, CEE32/3p

SRS DP6-8 1x6kW Dimmer, fader

DMX 3/5pin in/out, CEE32/3p

Varenr: 908021
12 822,-
Ikke på lager (18 dager)
BeskrivelseTeknisk infoDokumenter
Beskrivelse

    Single channel 6kW DMX / fader dimmer
    Main voltage: AC230V / 32A, single phase
    Output: 6kW / 25A
    SRS Generator technology
    SRS Studio Rise-time 400us
    Dual pole 1P+N protection
    DMX connectors: XLR 3 & 5-pin
    LTP merging rule between DMX / fader

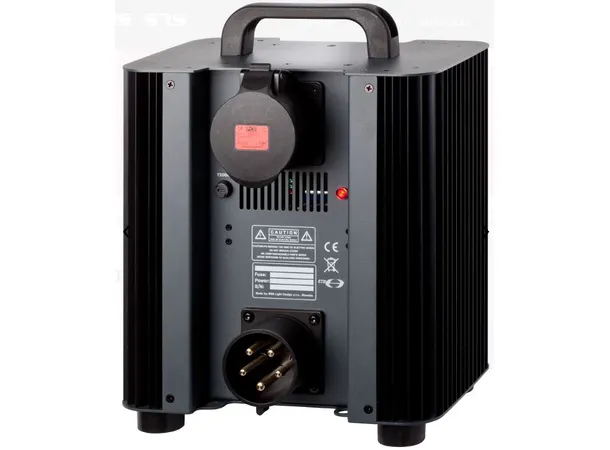

    Input / Output connector: CEE32/3p black

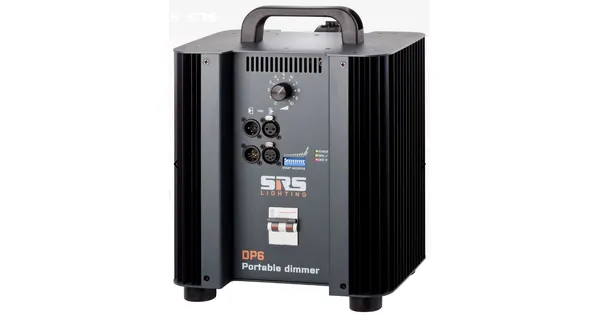

The Dimmer DP6 is designed to fulfill all the requirements of most lighting applications – mainly in TV or special venues, where single channel dimming by various controlling ways is needed. DP6 is equipped with 400us rise-time choke that guarantees very low lamp noise.

Another benefit of DP6 is an option to use the W-DMX inside, which allows controlling the device without a DMX cable. Additionally, the DMX OUT connector serves as a source of the DMX signal for any other DMX equipment or color changer.

The unit can also be used as a W-DMX receiver using the W-DMX true OUT, since the W-DMX signal is retransmitted onto the DMX OUT output.





Teknisk info

Produktinformasjon

Type 1 ch
