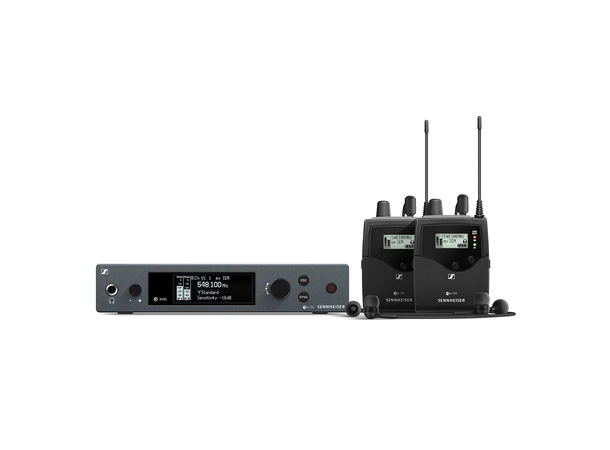

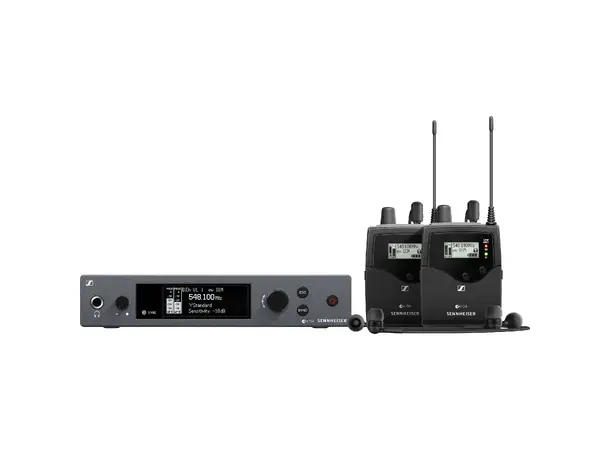

Engineered for professional live sound: Rugged all-in-one wireless monitoring system for in-ear applications.

Full control over your performance – your direct link, everywhere, everyday. The G4 In-Ear Monitoring Sets make your gig an extraordinary experience – not just for your audience, but also for you. Robust bodypack receiver and reliable in-ear monitoring IE 4 headphones delivering clarity along the whole frequency spectrum for daily use on stage.

Features

• Engineered for professional live sound: Rugged all-in-one wireless monitoring system for in-ear applications.
• Robust bodypack receiver and reliable in-ear monitoring IE 4 headphones delivering clarity along the whole frequency spectrum for daily use on stage
• Half-rack stereo transmitter in a full-metal housing with OLED display for full control
• Easy and flexible wireless synchronization between transmitter and receiver via infrared
• Compatible with Sennheiser WSM control software for flexible frequency allocation
• Up to 16 compatible channels
• Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range
• Transmission Range: up to 100 meters / 300 feet
• High RF output power (up to 50 mW) depending on country regulations

• Frekvensområder

  A: 516 - 558 MHz

  A1: 470 - 516 MHz

  AS: 520 - 558 MHz

  B: 626 - 668 MHz

  C: 734 - 776 MHz

  D: 780 - 822 MHz

  E: 823 - 865 MHz

  G: 566 - 608 MHz

  GB: 606 - 648 MHz

• Dimensjoner

  Ca. 202 x 212 x 43 mm

• Kompander

  Sennheiser HDX

• Total harmonisk forvrengning (THD)

  <0.9 %

• Vekt

  Ca. 980 g

• Audio input

  2x XLR-3/¼" (6.3 mm) jack kombinasjon-stikkontakt, elektronisk balansert

• Lydutgang

  ¼" (6.3 mm) stereo jack stikkontakt, balansert

• Signal-til -støy-forhold

  >90 dB

• RF utgangeffekt

  byttbar: Lav: type 10 mW Standard: type 30 mW Høy: type 50 mW

• Skiftende båndvidde

  inntil 42 MHz

• Topp avvik

  ±48 kHz

• Nominell avvik

  ±24 kHz

• Modulasjon

  Bredbånd FM stereo (MPX pilot tone)

• Strømtilførsel

  12 V DC

• Strømforbruk

  maks. 350 mA

• Maks. inngangspenning

  +22 dBu

• Overføringsfrekvenser

  Maks. 1680 frekvenser, kan justeres i 25 kHz trinn 20 frekvensbanker, hver med inntil 16 fabrikkinnstilte kanaler, ingen intermodulasjon 6 frekvensbanker med inntil 16 fabrikkinnstilte kanaler

• AF frekvensrespons

  25 Hz til 15 kHz

• Temperaturområde

  -10 °C til +55 °C

• Frekvens stabilitet

  ±10 ppm

• Antenneutgang

  BNC stikkontakt, 50 Ω
