STAGEDEX RAMP
Designed to expand the possibilities of the StageDex series, the multifunctional StageDex Ramp offers a perfect solution for rolling equipment on and off the stage, wheelchair access, or more creative applications such as car exhibitions, walkways, and fashion shows.

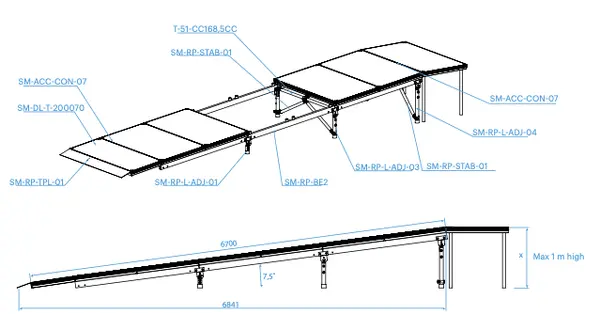

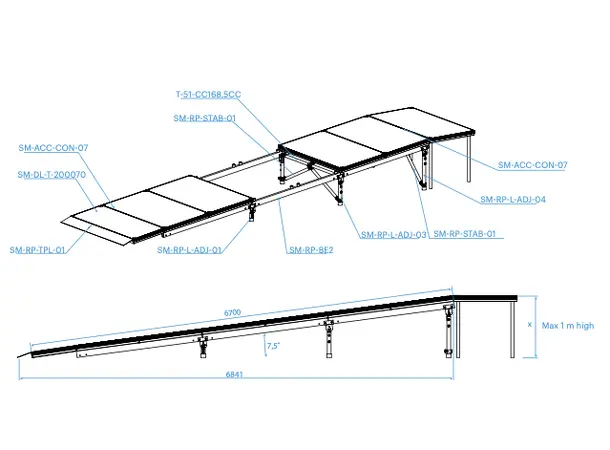

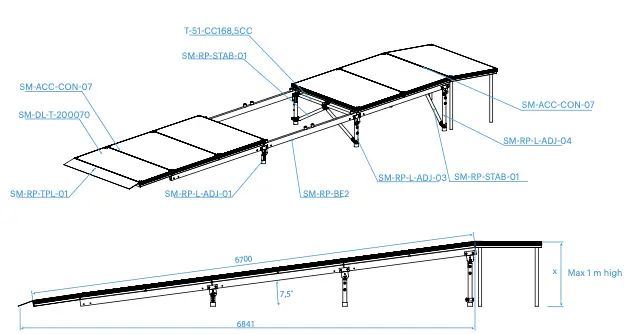

The StageDex Ramp consists of three basic elements:
The specially designed side profiles are constructed to absorb the forces from heavy loads, such as cars, which means that the StageDex Ramp can withstand up to 750 kg/m – the same load capacity as the standard StageDex stage.
The ramp's standard incline is 7.5 degrees, but it can be adjusted between 0 and 22 degrees using a plate connected to the legs. This system ensures that the forces from the load are transferred at the correct angle to the legs. Notches at the top of the profiles keep the stage in place when the ramp is built. A standard connection profile allows the inclined section to be attached to the stage at both ends.
