WUXGA laser display

• High brightness, scalable size Provides 5,200 lumens high-brightness display at up to 500"
• Premium display features Full HD, supports 4K input, edge-blending and geometric correction
• Unrestricted viewing Free from pixilation, glare, fingerprints and a central bevel
• Social distancing support Scalable display meets the needs of every audience configuration
• Plug, click and collaborate Collaborate using Epson’s wireless presentation system - ELPWP10

Overview

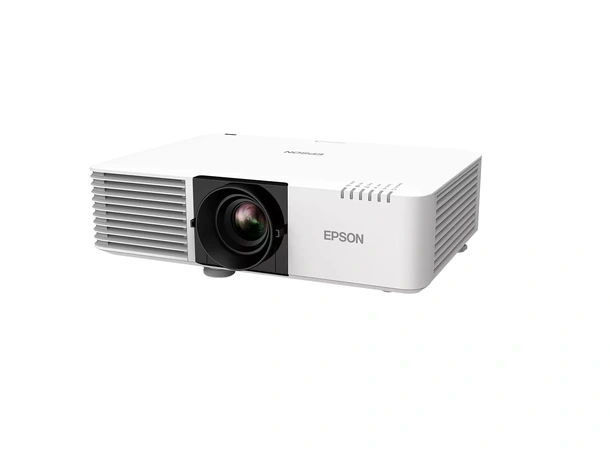

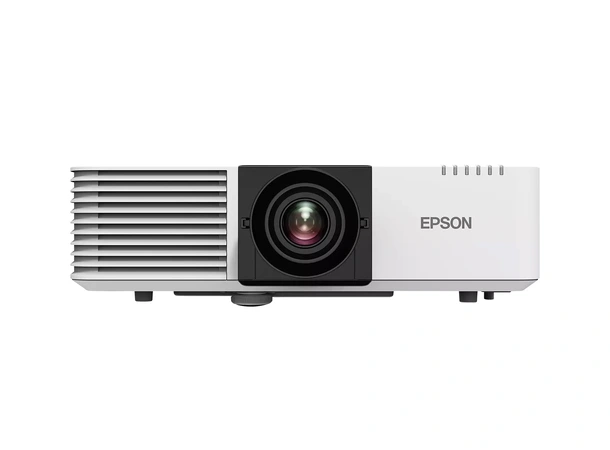

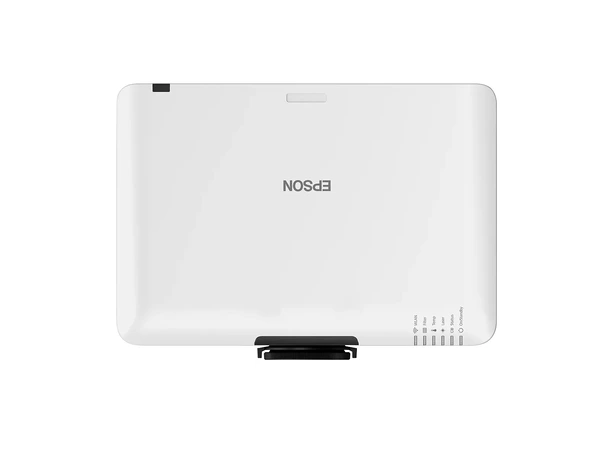

Deliver professional content with sharp images and bright colours to any audience. The EB-L520U is designed to project a scalable laser display up to 500 inches, and offers a range of connectivity options to make content sharing an easy, seamless experience.

Featuring 5,200 lumens high-brightness capability, along with Full HD, WUXGA, 16:6 wide screen, support for 4K input and detail enhancement technology, it gives users brighter, more vivid displays of up to 500”.

Providing more premium features than you would typically expect to find in this display class, the EB-L520U delivers edge-blending and geometric correction to achieve one seamless large-format display. And for multimedia content, you can playback content without any lagging, and create playlists and set schedules directly from USB memory, all thanks to H.264 advanced video coding and the Epson Content Manager.

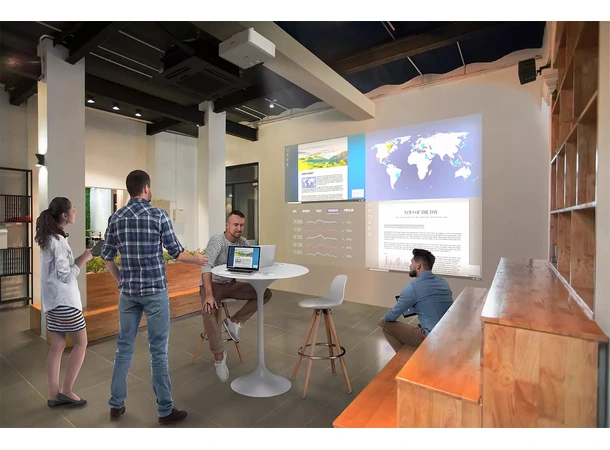

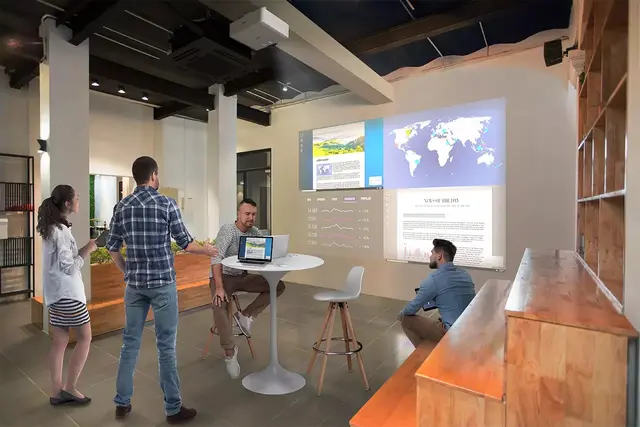

Flexibility is another hallmark of this display solution - a split-screen function allows two or four images from different sources to be combined in one large display; wired or optional wireless1 with support for Miracast1 makes connectivity simple and straightforward; and HDBaseT content can be shared and distributed without compromising on quality.

Thanks to the renowned market leading2 reliability of Epson laser displays, this fit and forget solution eliminates the need for regular maintenance. And for added confidence the EB-L520U comes with a standard 3-year warranty to provide lasting peace of mind.

Technology

Projection System

3LCD Technology, RGB liquid crystal shutter

LCD Panel

0,67 inch with C2 Fine


Color Light Output

5.200 Lumen- 3.640 Lumen (economy) In accordance with IDMS15.4

White Light Output

5.200 Lumen - 3.640 Lumen (economy) In accordance with ISO 21118:2020

Resolution

WUXGA

Resolution Enhancement

Full HD

Aspect Ratio

16:10

On-Screen Pixel Count

2,304,000

Contrast Ratio

5.000.000 : 1

Light source

Laser

Laser Light source

20.000 hours Durability High, 30.000 hours Durability Eco

Keystone Correction

Manual vertical: ±30 °, Manual horizontal ±30 °

Colour Video Processing

10 Bits

2D Vertical Refresh Rate

192 Hz - 240 Hz

Colour Reproduction

Upto 1.07 billion colours

Optical

Throw Ratio

1,35 - 2,20:1

Zoom

Manual, Factor:1 - 1,6

Projection Lens Zoom Ratio

1,35 - 2,2 : 1

Lens

Optical

Screen Size

50 inches - 500 inches

Projection Lens F Number

1,5 - 1,7

Projection Lens Focal Length

20 mm - 31,8 mm

Projection Lens Focus

Manual

Offset

27 : 1

Connectivity

Interfaces

RS-232C, VGA in (2x), VGA out, HDMI in (2x), HDBaseT, Miracast (optional), Jack plug out, Jack plug in (2x), USB 2.0-A, USB 2.0, Ethernet interface (100 Base-TX / 10 Base-T), Wireless LAN IEEE 802.11a/b/g/n/ac (optional)

Epson iProjection App

Ad-Hoc / Infrastructure

Advanced Features

Security

Kensington lock, Padlock, Security cable hole, Wireless LAN unit lock

2D Colour Modes

Dynamic, Cinema, Presentation, sRGB, DICOM SIM

Other features

21:9 aspect ratio support, A/V mute, Arc Correction, Built-in speaker, CEC compatible, Easy OSD pre-setting, Edge Blending, Long light source life, PC Free, Quick Corner, Screen share, Source function, Ultra-wide display (16:6), iProjection App

Video Color Modes

Cinema, Dynamic, Presentation, sRGB, DICOM SIM

Projector control

via: AMX, Crestron, Control4, Crestron Integrated Partner, Extron IP Link, Extron XTP, AMX Device Discovery, Control4 Simple Device Discovery Protocol

General

Power consumption

234 Watt (Normal On-Mode), 164 Watt (Eco On-Mode), 293 Watt (Normal Peak-mode), 223 Watt (Eco Peak-Mode), 0,3 Watt (Energy saving standby)

Supply Voltage

AC 100 V - 240 V, 50 Hz - 60 Hz

Product dimensions

440‎ x 122 x 304 mm (Width x Depth x Height)

Product weight

7,7 kg

Noise Level

Normal:31 dB (A) - Economy:23 dB (A)

Supported Temperature

Storage -10° C - 60° C

Supported Humidity

Operation 20% - 80%, Storage 10% - 90%

Included Software

EasyMP Multi PC Projection

Options

Air filter, Ceiling mount, Document camera, External Speaker, HDBaseT Transmitter, Safety wire set, Suspension adapter, WP System - ELPWP10, Wireless LAN unit, Wireless transmitter - ELPWT01

Loudspeaker

10 Watt

Room Type / Application

Boardroom, Home Cinema, Home Office, Large Meeting Room / Auditorium, Meeting room / Classroom, Signage / Retail, Visitor Attraction

Positioning

Ceiling Mounted, Desktop, Floor, Wall Mounted

Colour

White

TCO Certified

For further information relating to TCO Certified please visit https://tcocertified.com/files/certification/Information-document-for-end-users.pdf

Other

Warranty

36 months Carry in
