LINUS6.4 :
4 Channel Installation DSP Amplifier with Loudspeaker Management
Integrated DSP, 6000 W @ 2Ω, 4 channel networkable installation amplifier

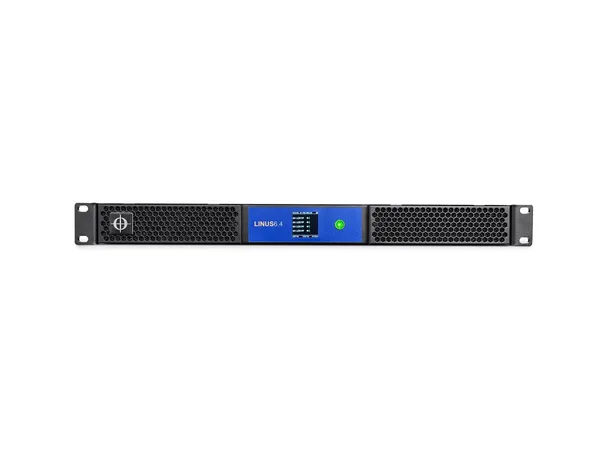

19"/1U Four channel amplifier for fixed installations, delivers 4x 1500 W @ 2Ω or 2x 3000 W@ 4Ω or 1x 3000 W@ 4Ω + 2x 1500 W@ 2Ω, controlled via the front panel, LINUS App or LINUS Control.
OVERVIEW
The LINUS6.4 is a four-channel DSP networkable installation amplifier delivering 4 x 1500 W of clean power in a convenient and lightweight 19”/1U package.
Advanced Class D discrete power stages with DC-coupled DACs, together with a high-efficiency SMPS with PFC to provide unrivalled power density and minimal thermal dissipation.
The innovative PCB layout design integrates DSP, four amplifiers, and SMPS on a single PCB for enhanced sound quality, pinpoint control, and rugged protection.
The four audio inputs are selectable, you can choose between analog, LiNET, Dante digital audio network and simply and easily route to any of the four outputs via the input matrix.
The advanced DSP processor enables the integration of sophisticated audio algorithms including phase linear DS-FIR filters, these provide perfect linearity and superior sound performance, plus advanced look-ahead and frequency-dependent limiters. The end result is increased system headroom and sonic fidelity, even under heavy use conditions.
Main Features
- 4x 1500 W @ 2Ω or 2x 3000 W@ 4Ω or 1x 3000 W@ 4Ω + 2x 1500 W@ 2Ω
- Powers either 70/100V and low impedance loudspeakers
- 4 balanced analogue inputs
- LiNET – 8x freely configurable digital audio signals over CAT5e
- Dante redundant (LINUS 6.4-iD only)
- PoE on the control port, in case of mains power loss, the control section still functions

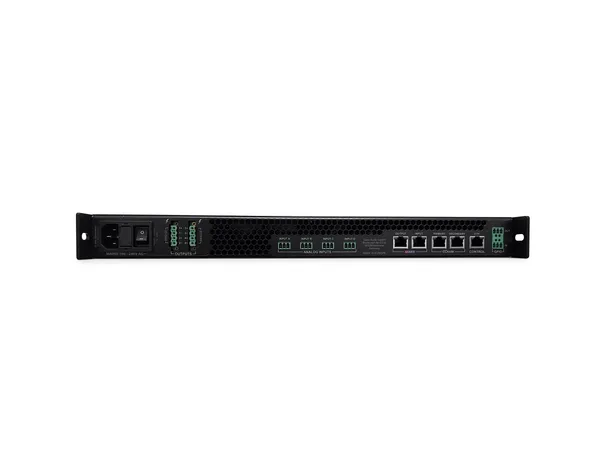

- Phoenix inputs and outputs
- Configurable GPIO
- Front panel IPS display (240×240 pixels)
- Front panel control

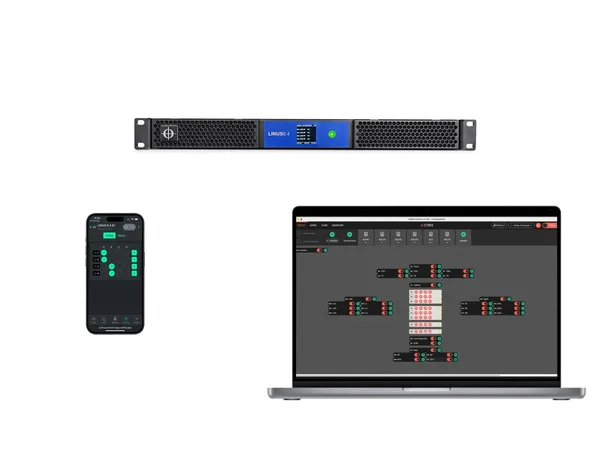

- LINUS Control – full network control and monitoring of amplifiers over Ethernet
- LINUS App – full amplifier control and monitoring via mobile device using internal wi-fi hotspot
- Optimised factory presets for all CODA Audio loudspeaker systems
(except N-RAY, ViRAY, CiRAY, AiRAY, and sensor subwoofers)
- 5-year warranty
