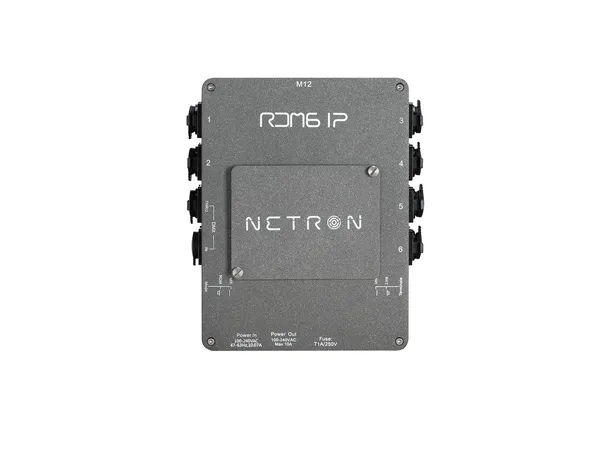

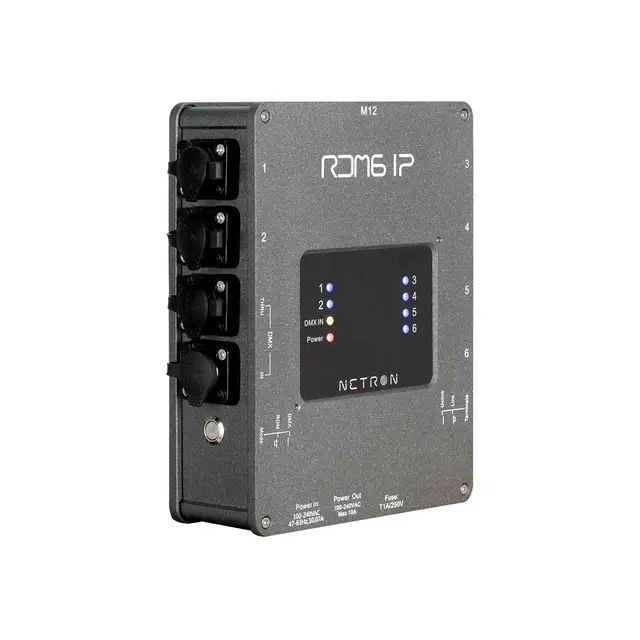

RDM6 IP

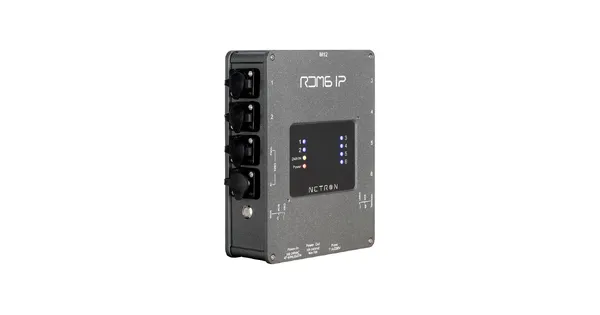

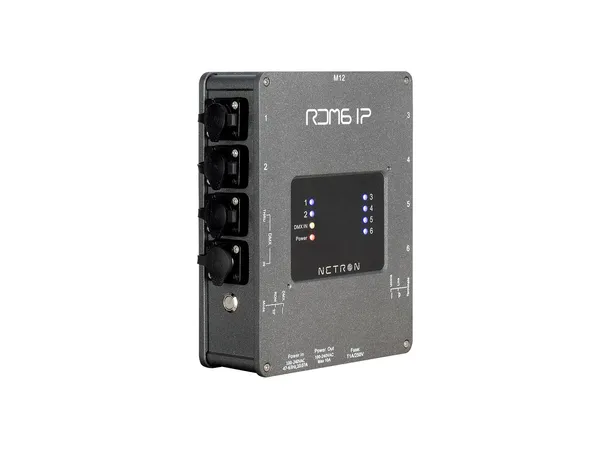

The Netron RDM6 IP is a six port DMX/RDM splitter in a rugged IP66 rated chassis. It is designed for live productions, movie sets, temporary outdoor installations, or interior use with long term protection from humidity, dust and debris.

Key Features

• IP66 DMX Data Splitter
• (6) XLR 5pin outputs
• DMX and RDM compliant
• Optically isolated ports
• Power / DMX Thru connectors
• Powder-coated aluminum chassis

Mounting

• Standalone

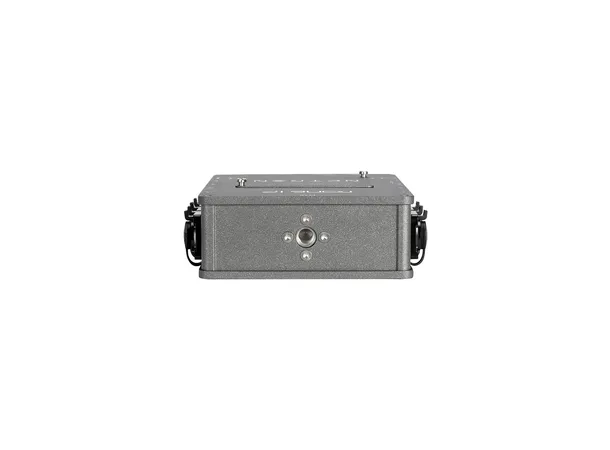

• Truss-mount (M10 or M12)
• Wall-mount

Connections

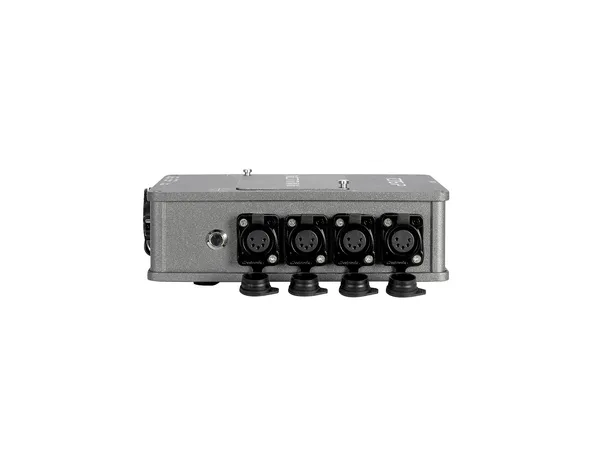

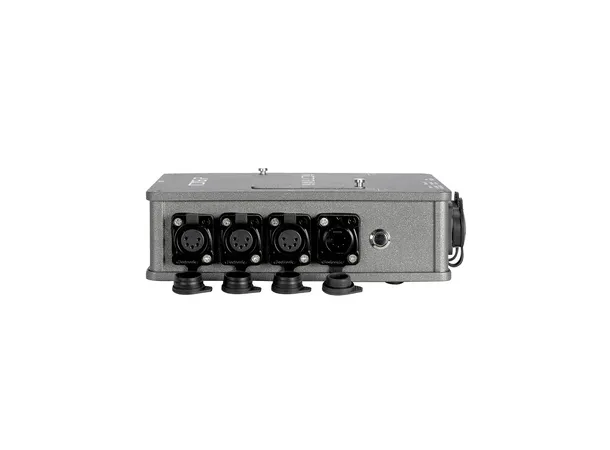

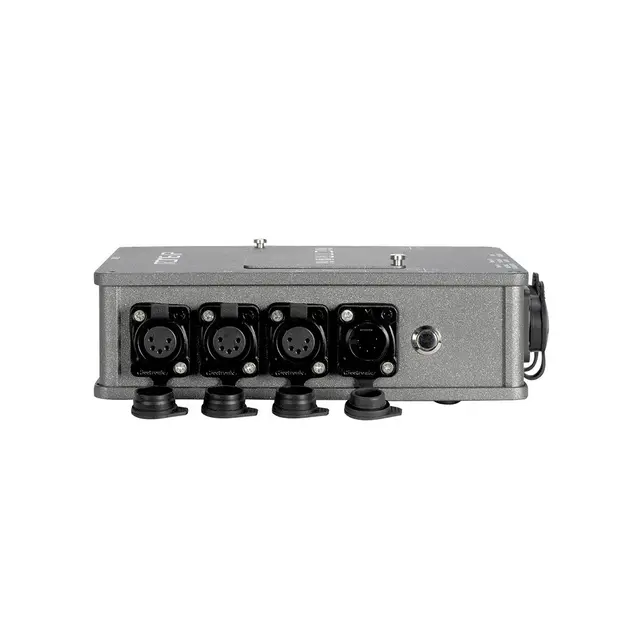

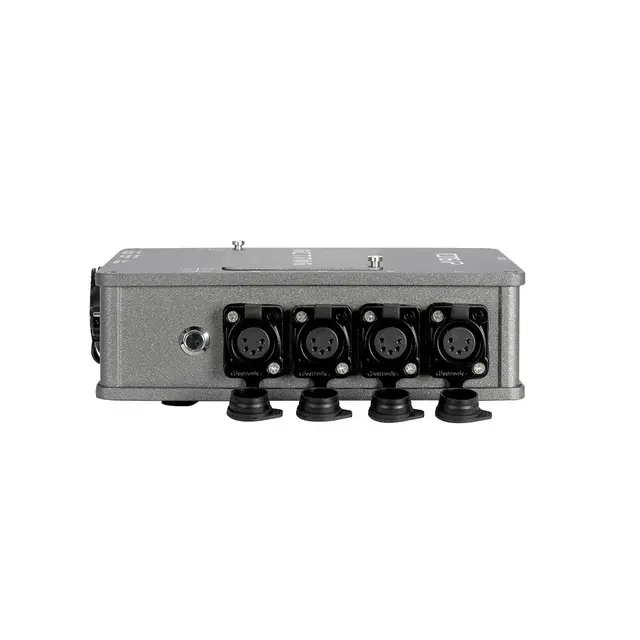

Sides

• (1) 5pin IP66 DMX In
• (1) 5pin IP66 DMX Thru
• (6) 5pin IP66 DMX/RDM optically isolated ports
• DMX Termination Button
• RDM Enable / Disable Button

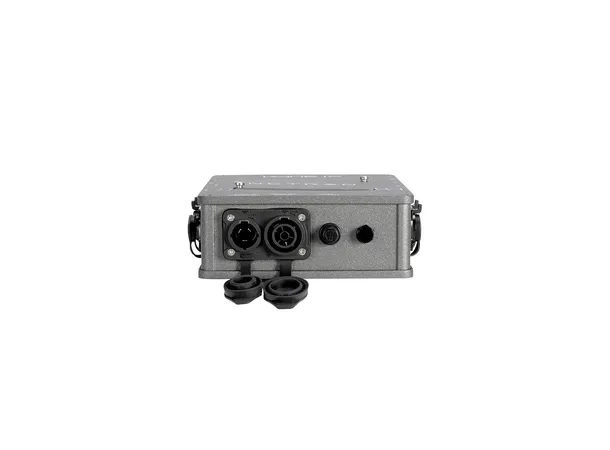

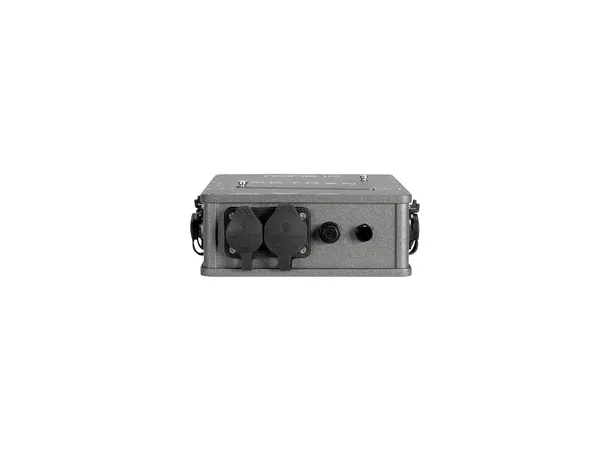

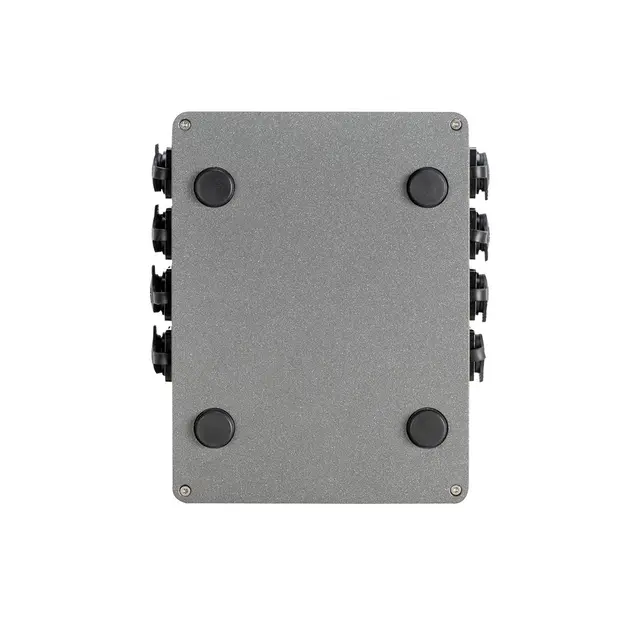

Bottom

• Locking IP66 Power In/Thru

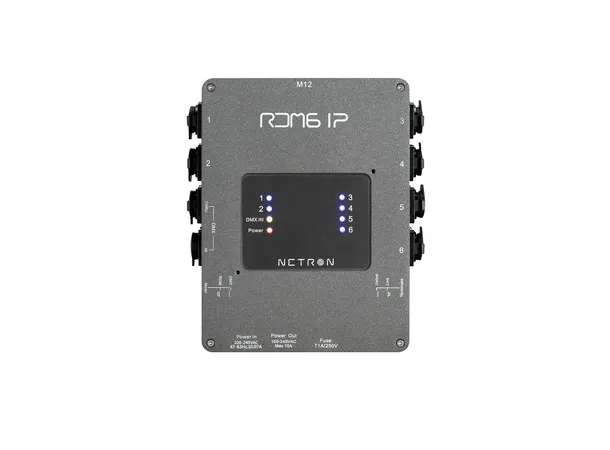

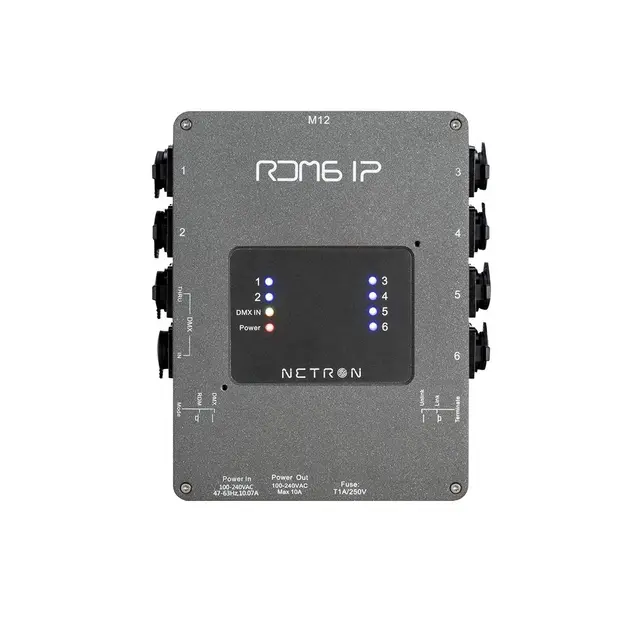

Front

• LED Port Feedback

Specifications

Physical

• Length: 242mm (9.5 in.)
• Width: 183mm (7.2 in.)
• Height: 82mm (3.2 in.)
• Weight: 2 kg (4.41 lbs)

Electrical

• 100-240 V nominal, 50/60 Hz, 5W

Approvals / Ratings

• cETLus / CE / UKCA / IP66

Included Items

• 1.5m IP65 locking power cable (EU or US version)
• (2) Wallmount brackets
• M10 to M12 adapter

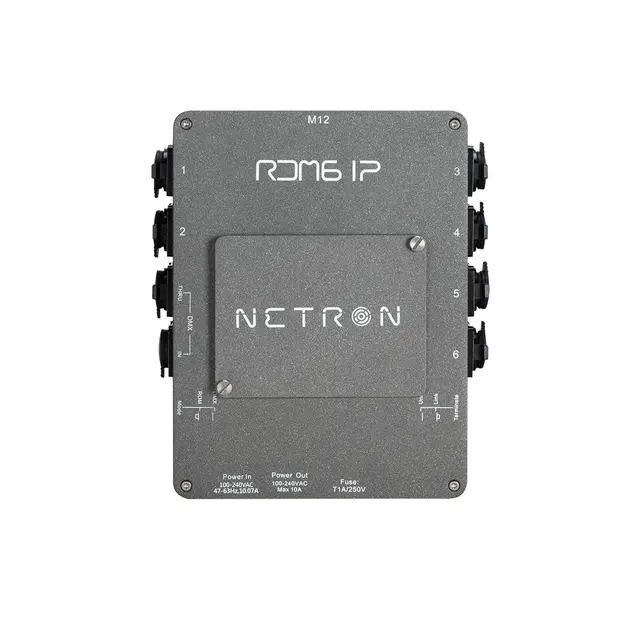

• Metal display protection cover
