Mantra Lite

What you imagine, you create

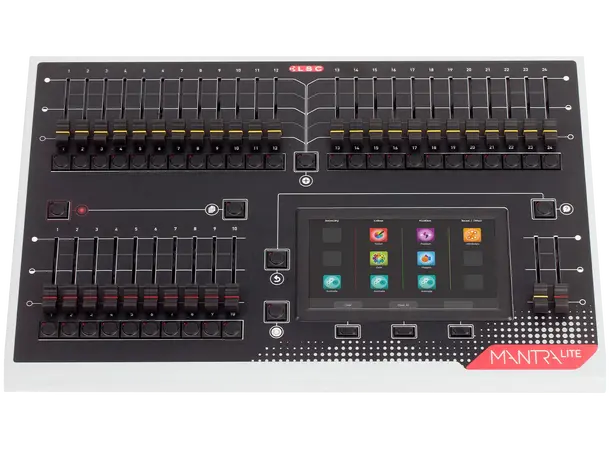

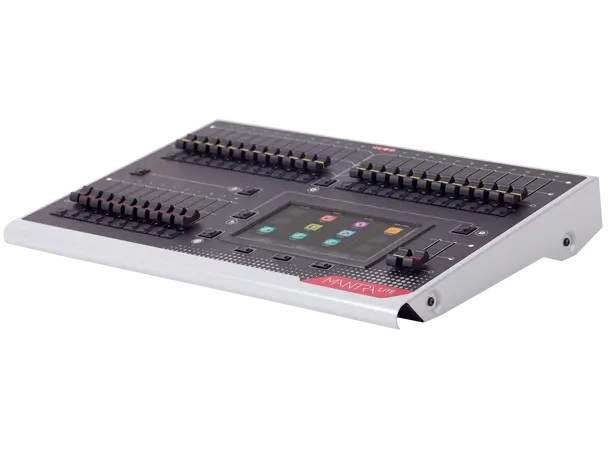

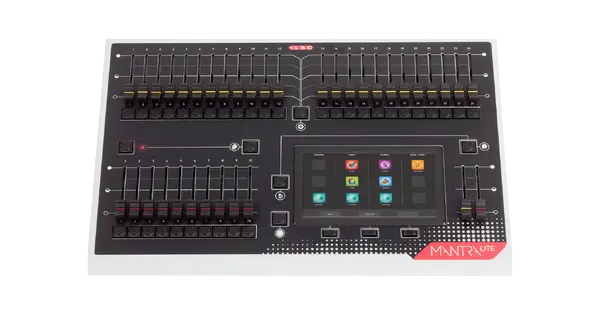

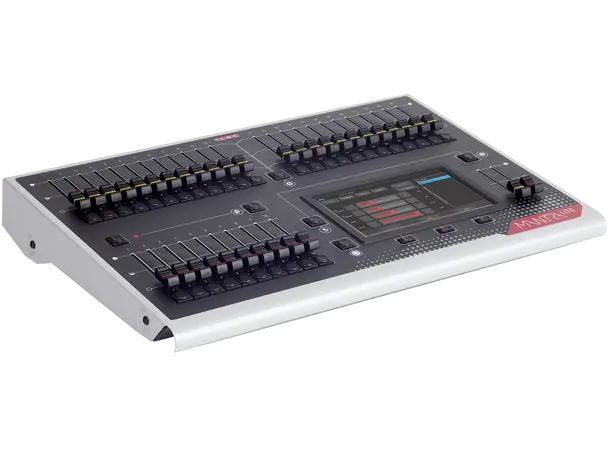

The Mantra Lite is an award-winning lighting controller for LEDs, moving lights and conventional dimming. Expandable by adding up to two wings, the Mantra Lite is ideally suited for all types of operators in small theatres, places of worship and entertainment venues.

Large, colour LCD touchscreen provides immediate access to most parameters and functions at your fingertip. The clever app-based operating system allows even the novice user instant results, whilst still allowing the more experienced user access to advanced functionality. Large icon identifiers quickly drill into key functions such as Colour, Intensity, Beam and Position – simplicity at its best!

The Animate function is another LSC-first and delivers a simple and intuitive way of creating intensity chases and moving patterns in a single cue. It works with two or more selected fixtures and shifts the pattern, colour or intensity of each fixture to the next and loops the settings of the last selected back to first. No other console in this class can match the Mantra for its fast and advanced programming.

Selecting and controlling colours is now made easier with Mantra Lite’s colour picker app. No more working out the physics of colour mixing. Directional and symmetrical fan functions allow clever fanning of colour on your selected fixtures. Recent colour selections are stored for quick access to favourites and the gels app gives instant access to 100 commonly used gel colours.

All keystrokes are tracked on the Mantra Lite – an Undo button can undo your last action or the Redo button allows you to redo an action and move you up the tracking list. An excellent feature for those long, drawn-out programming sessions enabling the user to retract or reinstate programming at any point of plotting a show.

If your new lighting fixture does not have a template in the Mantra Lite library, you can create it with the Fixture Editor. Connect the new fixture to the Mantra Lite and let the editor “discover” the DMX channel assignments via the yellow channel faders – you don’t need to know the manufacturer’s assignments beforehand.

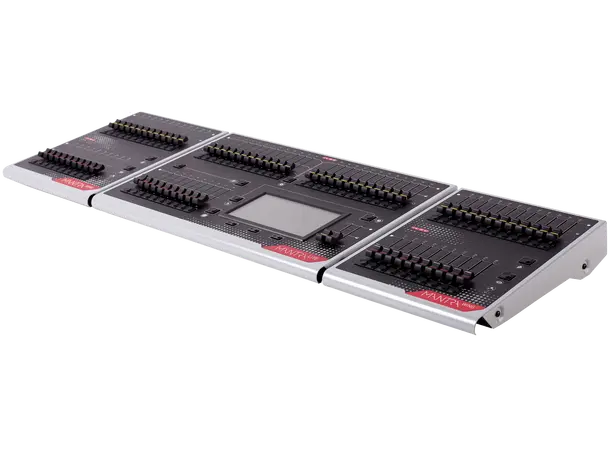

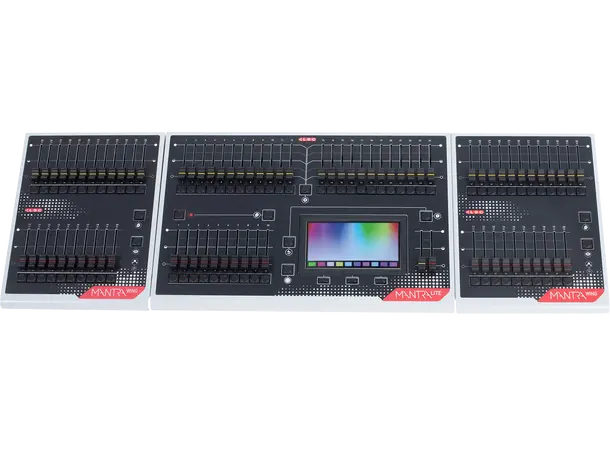

So, 24 fixtures and 10 playbacks aren’t enough? No problem – connect a Mantra Wing to provide an additional 12 fixtures, 10 more playbacks and another DMX Universe. Still not enough? Add a second Mantra Wing to get a total of 48 fixtures, 30 playbacks and a total of three DMX outputs. Up to two Wings can be connected per Mantra Lite via a USB cable.

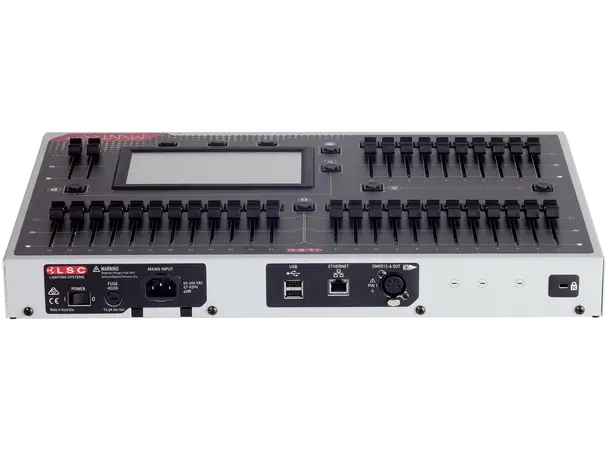

Outputs

1 x RJ45 Ethernet connector for sACN and/or Art-Net

2 x USB Type-A ports

1 x XLR 5-pin output connector for DMX512-A (E1-11)

Control

18cm capacitive LCD screen with app-based user interface

direct control of up to 24 fixtures

10 playback masters

100 cue lists/chases, each with a maximum of 250 cues/animations

1 x playback master (red) and 1 x fixture master (yellow)

Protection

on-screen, context-sensitive Help menus

full brownout protection via on-board mini-UPS providing five seconds of power for automatic show save

Expansion

main console expandable with up to two wings via USB connection

second DMX universe on main console possible by attaching an LSC QX1 node to USB output

Memory

16GB flash memory

external show backup via USB

Power

nominal 100-240V, 50-60Hz

typical operating range of 90-260V, 45-65Hz

power input connector via IEC socket with mains cable provided

/E models supplied with external UL-certified power supply, connected via 2.5mm 12V DC jack

Mechanicals

Mantra Lite

490mm (w) x 330mm (d) x 80mm (h)

weight: 5kg

corrosion-resistant, powder-coated steel with rear-screened polycarbonate durable front panel

useful front-panel lip doubles as a handy carry handle

Peace of Mind

CE (European) and RCM (Australian) approved

two-year warranty

designed and manufactured in Australia by LSC – an Australian-owned company with over 40 years’ experience in developing world-first products
