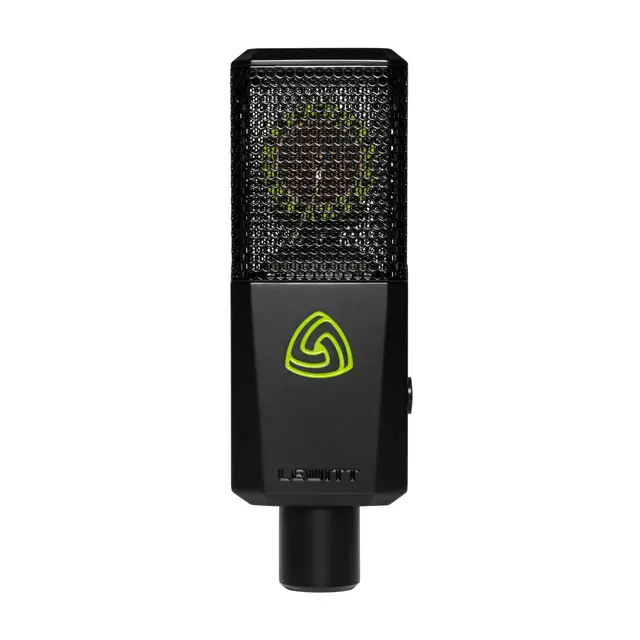

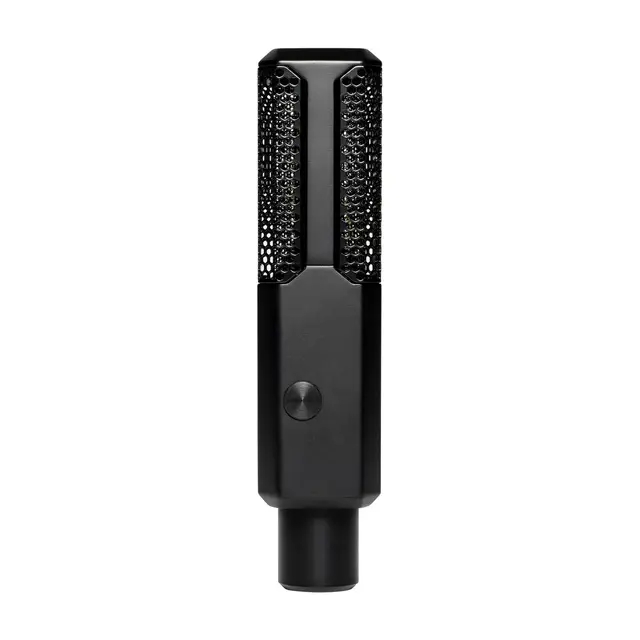

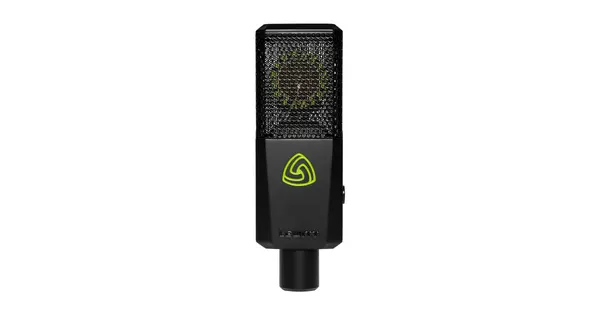

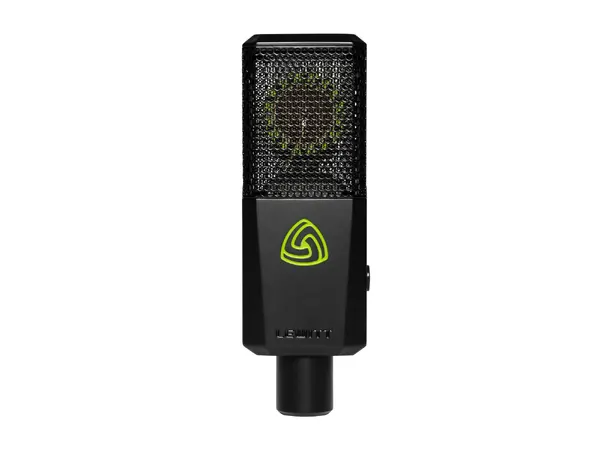

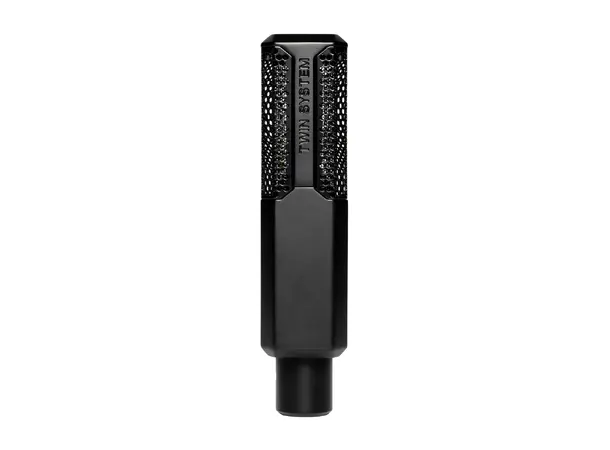

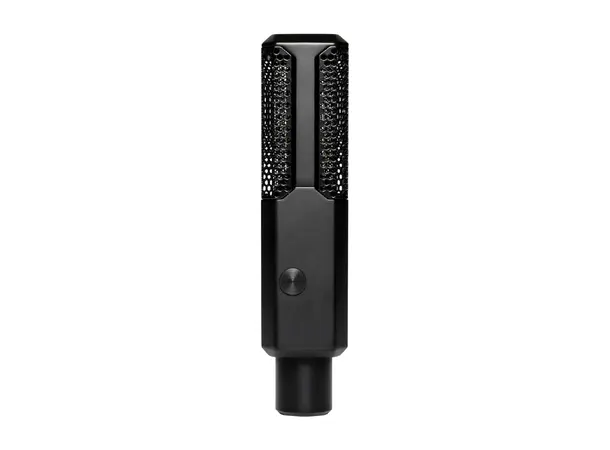

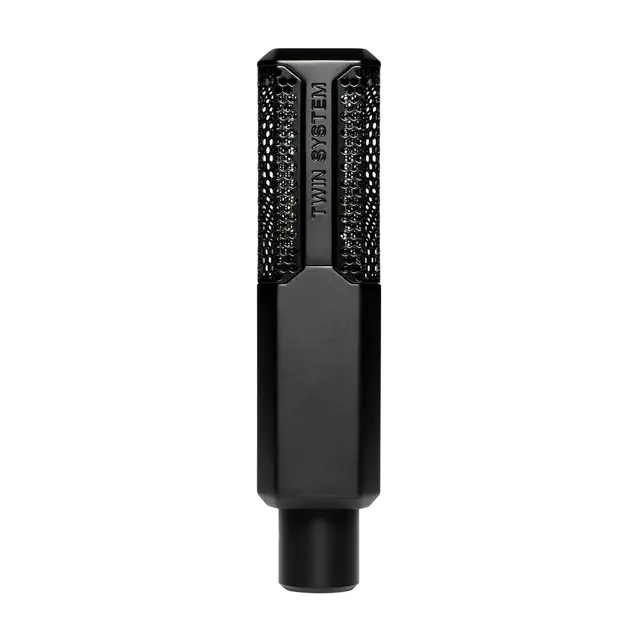

Ultimate FET studio microphone.LCT 640 TS

• 1" multi-pattern studio condenser microphone
• Full, crisp, and well-balanced sound
• Revolutionary Dual Output Mode
• POLARIZER plugin to create any pattern after the fact
• Stereo capabilities

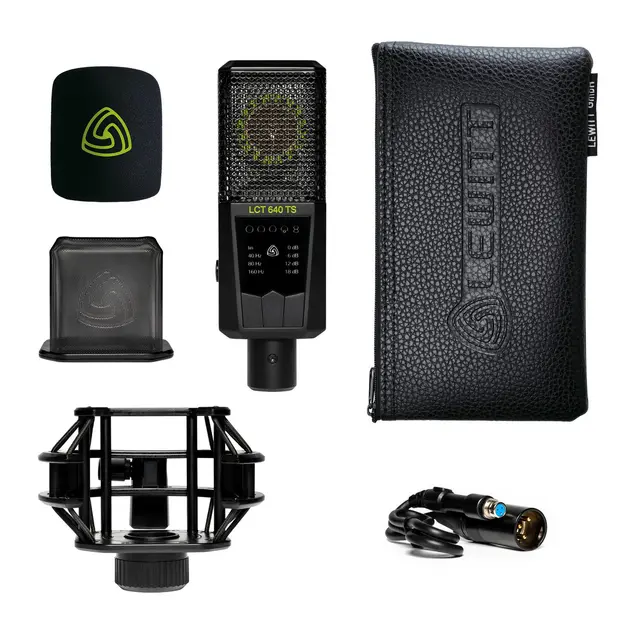

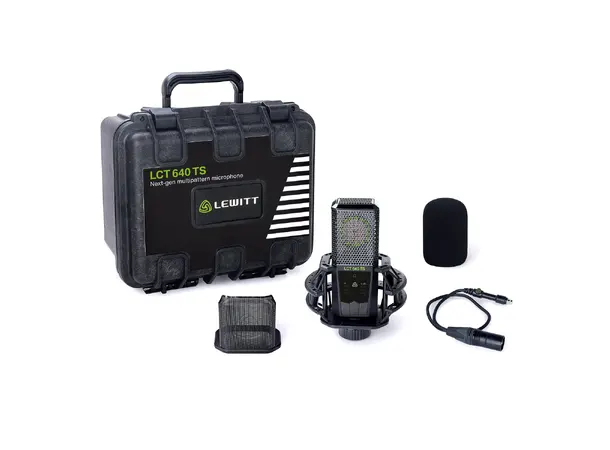

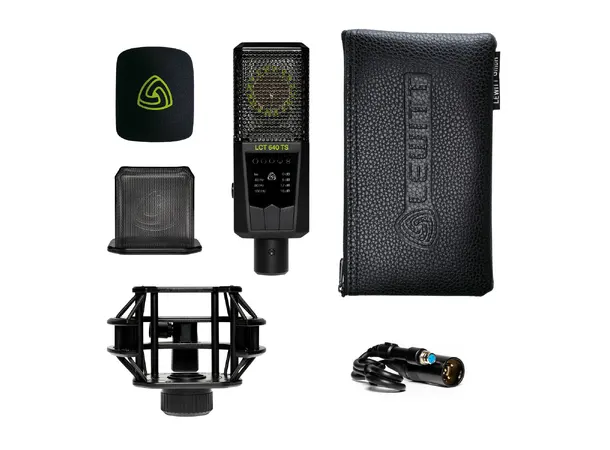

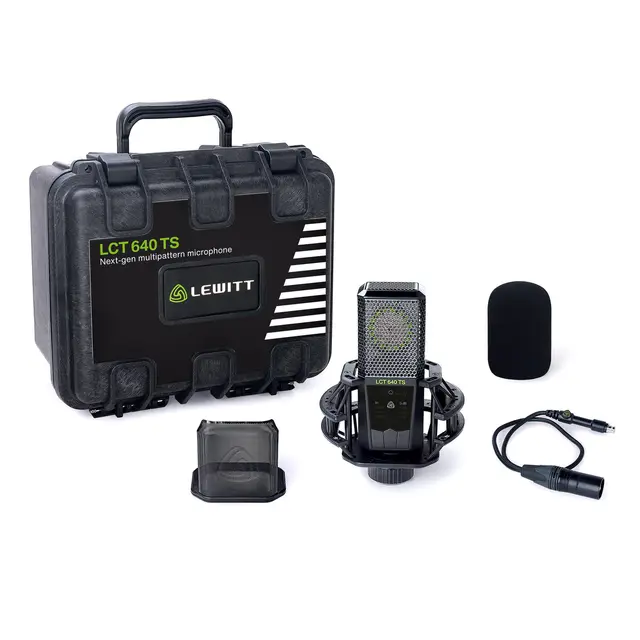

Included: Shock mount, Magnetic pop filter, Foam windscreen, TS adapter cable, Transport bag , Transport case

More freedom and flexibility.

The LCT 640 TS gives you all the control you'll ever need from a microphone.

• Five different polar patterns help you adapt your microphone to any source.
• A switchable pad can attenuate up to -18dB for even the loudest performances.
• A generous four-step roll off filter can attenuate up to 150 Hz to reduce low-end rumble and room noise.
• The included POLARIZER plugin lets you get creative by adjusting polar patterns in your DAW.

One mic, two channels with Dual Output Mode.

Stereo recording can be time-consuming and challenging. With the LCT 640 TS, you can record perfect, in-phase stereo with a single microphone.

The signals from the front and back of the LCT 640 capsule can be output on two separate channels, making it adaptable to both solo vocals and wide open rooms and even choirs.

Specifications

Type

Condenser, externally polarized

Acoustical operating principle

Pressure gradient transducer

Diaphragm

3 micron gold sputtered Mylar

Transducer Ø

25.4 mm, 1 in

Polar pattern

Dual Output Mode: create any polar pattern in post-production / Multi-Pattern Mode: Omni, wide cardioid, cardioid, supercardioid, figure-8

Frequency range

20 ... 20,000 Hz

Sensitivity

31.4 mV/Pa, -30.1 dBV/Pa

Self-noise

10 dB (A)

Max. SPL for 0.5 % THD

134 dBSPL, 0 dB attenuation

Signal / noise ratio

84 dB (A)

Dynamic range

124 dB (A)

Attenuation

 0 dB
-6 dB
-12 dB
-18 dB

Low-cut filter

linear
40 Hz (12 dB/oct)
80 Hz (12 dB/oct)
160 Hz (6 dB/oct)

Internal impedance

110 Ω

Supply voltage

48 V ± 4 V

Current consumption

5.1 mA

Microphone enclosure

Zinc die cast

Connector

Gold plated 3-pin XLR + Mini 3-pin XLR

Microphone dimensions

158 x 52 x 36 mm, 6.22 x 2.04 x 1.42 in

Microphone net weight

425 g, 14.9  oz

Min. system requirements

POLARIZER Plugin | Windows: Windows 10 or newer, 64bit plugin formats: VST3 and AAX (all 64bit) , macOS: 10.15 Catalina or newer, VST3, AAX, AudioUnit v2 (Intel64+Silicon architectures) , DAWs: 64bit DAWs on Windows and Intel mac machines, ProTools: Win: ProTools 12.5 and newer, macOS: ProTools 2019.12 and newer

Microphones measured according to: IEC 60268-4 | Phantom power according to: IEC 61938 | Noise measurement according to: IEC 60268-1
