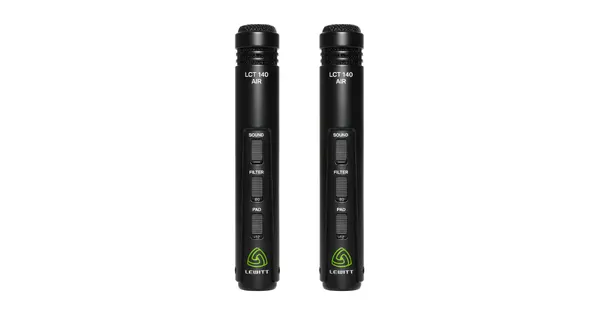

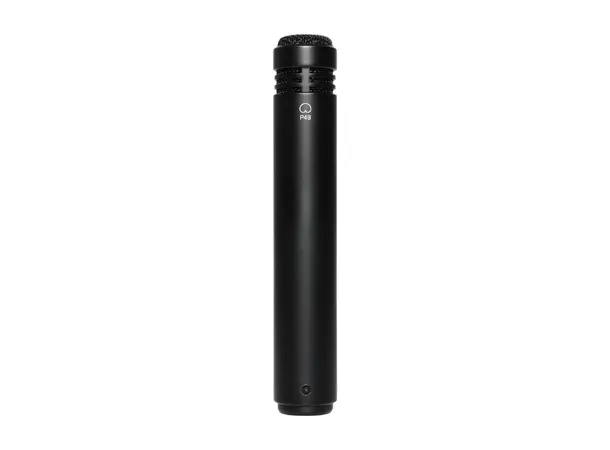

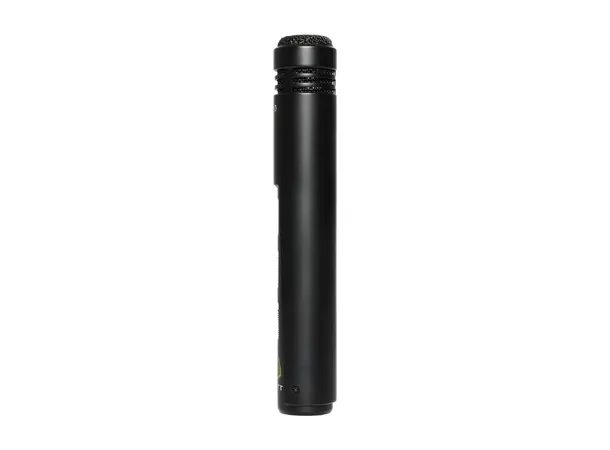

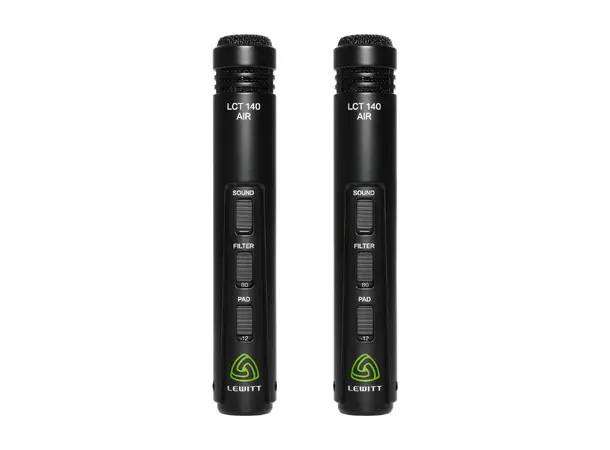

Versatile recordings in perfect stereo.LCT 140 AIR stereo pair

• Perfectly matched stereo pair
• Choose between two sound characteristics
• Made for acoustic instrument recording
• Low-cut filter and PAD
• Cardioid polar pattern

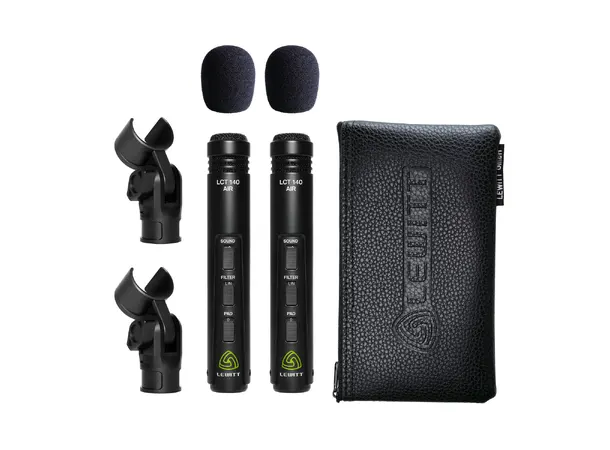

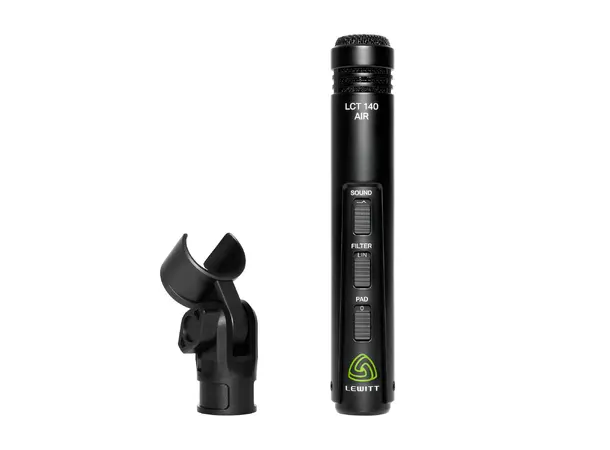

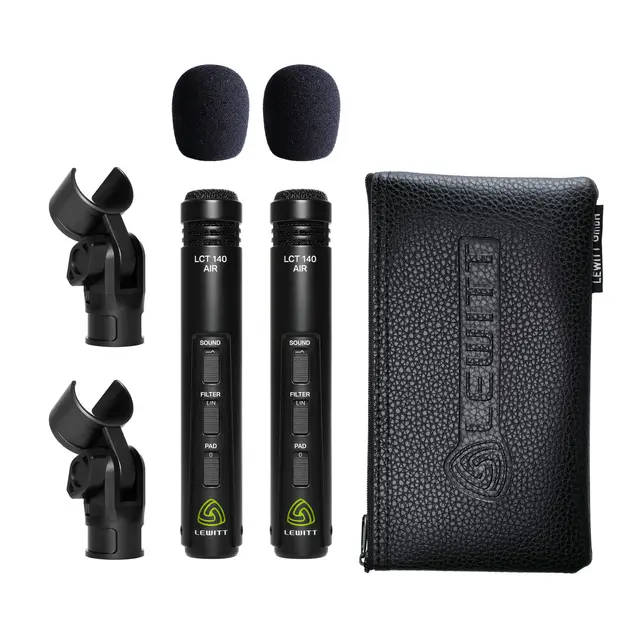

Included: Foam windscreen, Microphone clip, Transport bag

The only microphone stereo pair you'll need.

The LCT 140 AIR stereo pair lets you switch between two sound characteristics - AIR for a Record-Ready sound and FLAT for highly authentic recordings.

By using automated production processes, you get perfectly matched stereo pairs without paying extra.

This is the only stereo pair of pencil mics you will need - 2 sound modes, low-cut and pre-attenuation, lightweight, professional studio sound. The rumors are true. It's the best in its class.

Two switchable sound characteristics

AIR or FLAT? Record your instruments the way you want.

AIR delivers an open, sparkling character. It's the right choice if you need great sound without spending time on post-production.

FLAT provides a linear frequency response for authentic recordings of drums, strings, acoustic guitars, and choirs. It is perfect if you aim for realistic sonic images.

Check out the sound samples and hear for yourself.

Low-cut filter and PAD

Full flexibility on all sources.

To be prepared for all eventualities, we have given the LCT 140 AIR a low-cut and a PAD. This means you won't break a sweat with loud sources, nor will you have to deal with low-frequency noise when you don't want to.

The LCT 140 AIR is great for:

• Acoustic guitar
• Drums
• Strings
• Choirs
• Piano
• Ukulele

Specifications

Type

Condenser, permanently polarized

Acoustical operating principle

Pressure gradient transducer

Transducer Ø

17 mm, 0.67 in

Diaphragm

3 micron gold sputtered Mylar

Polar pattern

Cardioid

Frequency range

20 ... 20,000 Hz

Sensitivity

14.6 mV/Pa, -36.7 dBV/Pa

Self-noise

20 dB (A)

Max. SPL for 0.5 % THD

135 dBSPL

Dynamic range

115 dB (A)

Attenuation

 0 dB
-12 dB

Low-cut filter

linear
80 Hz (12 dB/oct)

Internal impedance

173 Ω

Supply voltage

48 V ± 4 V

Current consumption

7.2 mA

Connector

Gold plated 3-pin XLR

Microphone dimensions

24 dia. x 140 mm, 0.9 dia. x 5.5 in

Microphone net weight

66 g, 2.3 oz

Microphones measured according to: IEC 60268-4 | Phantom power according to: IEC 61938 | Noise measurement according to: IEC 60268-1
