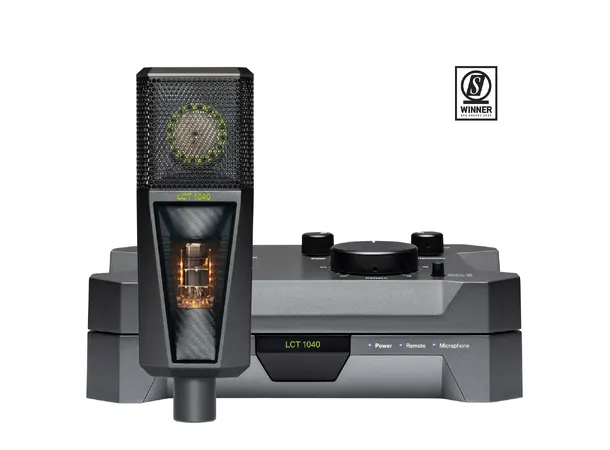

Ultimate microphone system.LCT 1040

• Studio centerpiece - adapt to any sound source
• 4 all-analog tube characteristics - Clear, Warm, Dark, and Saturated
• Developed in close cooperation with Grammy-winning studio professionals

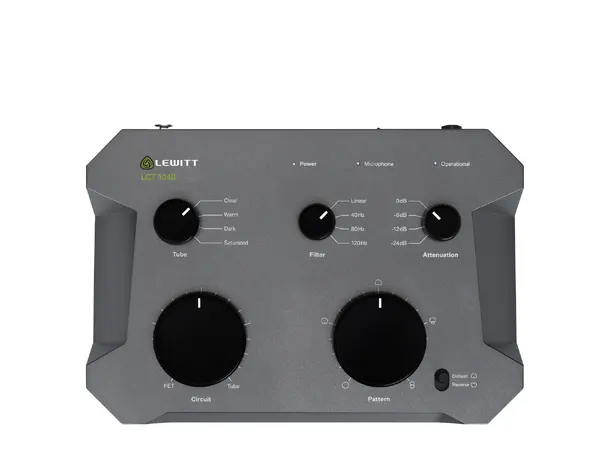

• Detachable remote control for unrivaled workflow
• Blendable FET circuit and seamless polar pattern control

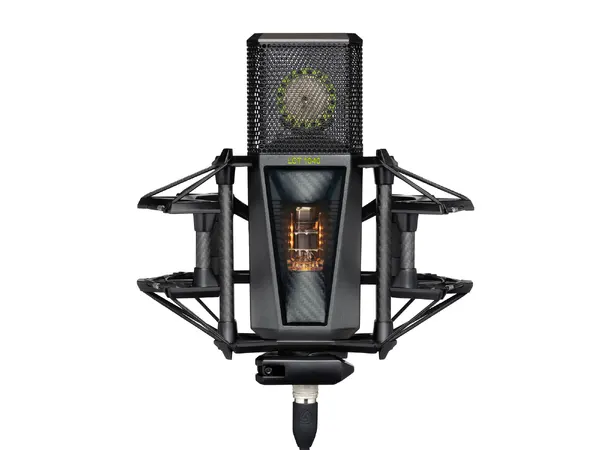

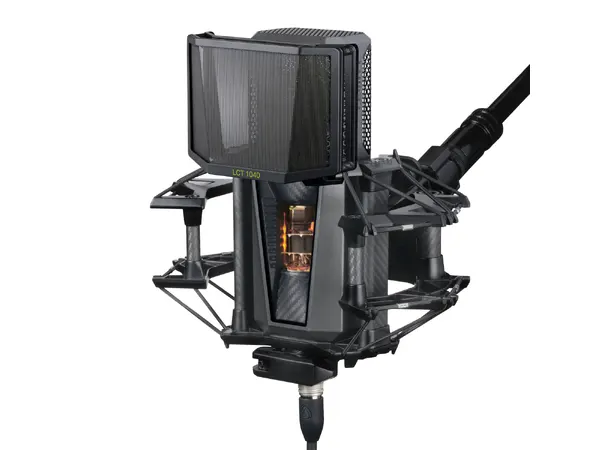

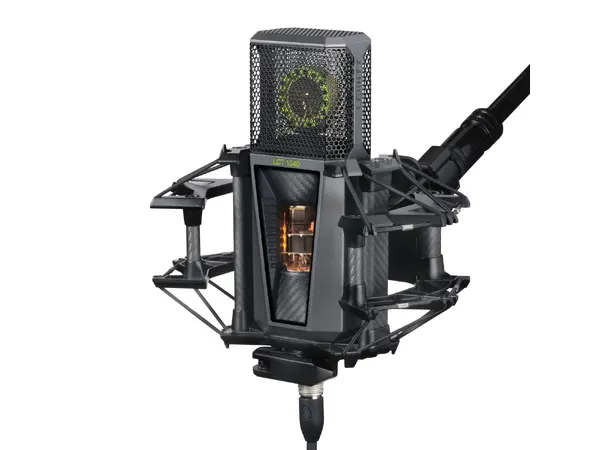

Included: Shock mount, Pop filter XL, 10-pin microphone cable, Transport case

Specifications

Type

Condenser, externally polarized

Acoustical operating principle

Pressure gradient transducer

Transducer Ø

25.4 mm, 1 in

Diaphragm

3 micron gold sputtered Mylar

Polar pattern

Seamless from omni to wide cardioid, cardioid, supercardioid, figure-8

Frequency range

20 ... 20,000 Hz

Sensitivity

17.2 mV/Pa, -35.3 dBV/Pa

Self-noise

10 dB (A) FET, 13 dB (A) tube

Max. SPL for 0.5 % THD

137 dBSPL, 0 dB attenuation

Signal / noise ratio

84 dB (A) FET, 81 dB (A) tube

Dynamic range

127 dB (A)

Attenuation

 0 dB
-6 dB
-12 dB
-24 dB

Low-cut filter

lin
40 Hz (12 dB/oct)
80 Hz (12 dB/oct)
120 Hz (6 dB/oct)

Internal impedance

83.8 Ω

PSU - supply voltage

230 V, 50 Hz
110 V, 60 Hz

Current consumption

230V - 170 mA, 110V - 240 mA

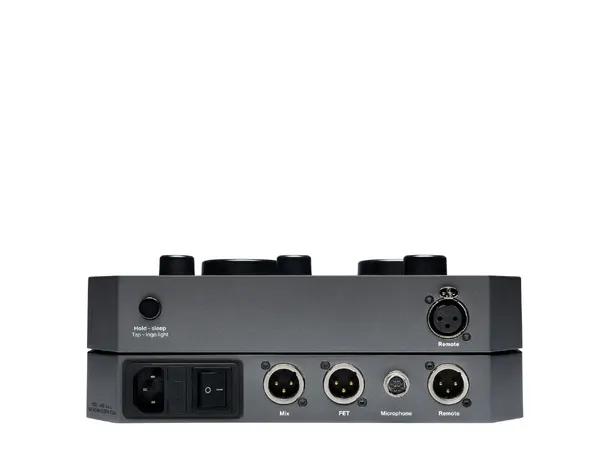

Connector PSU and remote

Gold-plated 3-pin XLR by Neutrik

Connector

10-pin Hirose Electric

Tube/Valve

E88CC / 6DJ8

Microphone enclosure

Zinc die cast

Microphone dimensions

196 x 65 x 45 mm, 7.7 x 2.6 x 1.8 in

Microphone net weight

652 g, 23 oz

PSU dimensions

240 x 170 x 47 mm, 9.4 x 6.7 x 1.9 in

PSU net weight

2381 g, 68 oz

Remote dimensions

240 x 163 x 52 mm, 9.4 x 6.4 x 2 in

Remote weight

1952 g, 69 oz

Microphones measured according to: IEC 60268-4 | Phantom power according to: IEC 61938 | Noise measurement according to: IEC 60268-1
