CONNECT 6

• Dual USB-C audio interface for creators and musicians
• Extensive analog and digital connectivity
• Studio-grade preamps with 72 dB gain and -133 dBV EIN
• Autosetup for voice, vocals, and instruments
• Zero-latency DSP effects included
• Easy routing, mixing, and loopback
• Made for Windows, Mac, iPhone, iPad, and Android

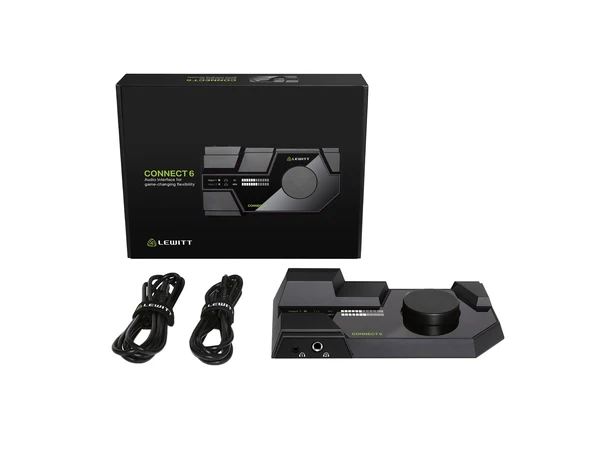

Included: USB-C to USB-C cable, USB-C to USB-A cable

Device

Control

Rotary knob

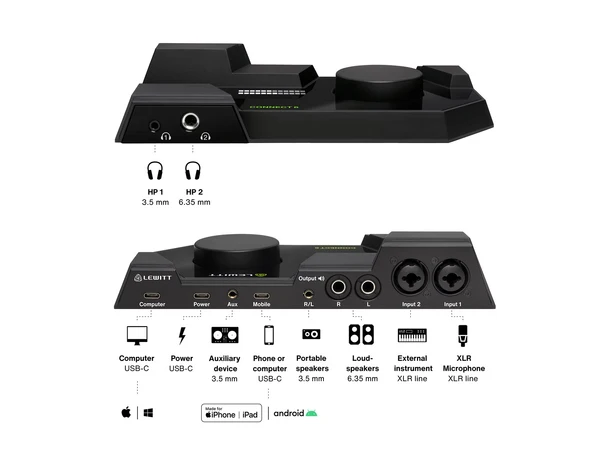

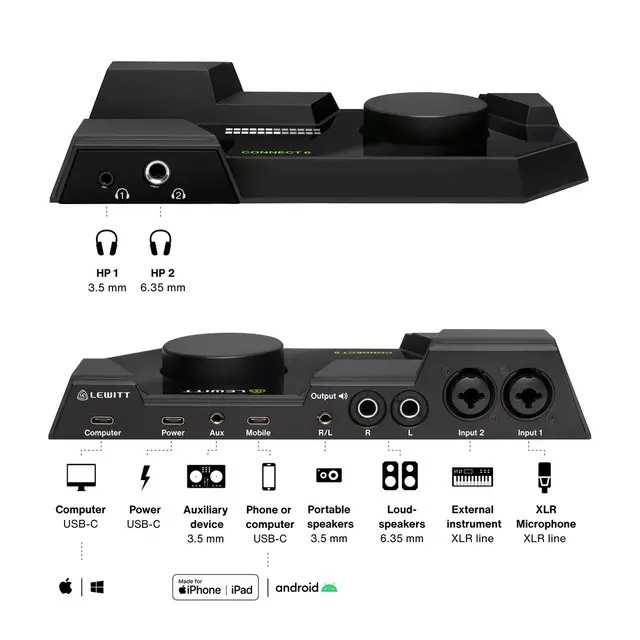

Inputs

2x Microphone, balanced XLR / 6.3mm jack combo, 1x Aux, stereo 3.5mm jack

Outputs

2x Speaker 6.3mm balanced jack, 1x Headphone 6.3mm jack, 2x Headphone 3.5mm jack

Metering

12 step resolution, stereo

Features

RGW LEDs, mobile charging, volume, gain, 48V

Dimensions and weight

220 x 114 x 43, 395g

Power requirements

USB C bus powered (power + mobile charging, USB A bus powered (power + mobile charging dependent on port power) / Connect external power supply to power input for optimal performance

Recommended external power supply

USB-C PD 27W or higher (not included)

Digital

Type

Dual USB-C audio interface

Software

LEWITT CONTROL CENTER

DAW included

Steinberg Cubase LE, Cubasis LE

Compatibility

MacOS, Windows, iOS (MFi certified, device charging), Android (device charging)

ASIO driver

Yes

Sample rate

44.1, 48, 96kHz (Computer port), 44.1, 48kHz (Mobile port)

Bit rate

24

USB Audio Class

2.0 (Computer Port), 1.0 (Mobile Port)

Signal flow

MIX A, MIX B, Routing

DSP powered

Yes

Loopback

Yes

Inputs / Outputs

12 (includes 6 software channels) / 6

Min. system requirements

Windows 10 (64 bits): 4GB RAM minimum, USB 2.0 connector; macOS 10.15 and higher: 4GB RAM minimum, USB 2.0 connector

Microphone Input

Type

balanced

Connector

XLR / 6.3mm jack combo

Phantom power

48V

Gain range

–6 - 72 dB

Equivalent input noise

–133 dBV (A-weighted)

Max input level

6 dBV

Total harmonic distortion

0.002%

Frequency response

20 Hz - 20 kHz

Features

DSP (low-cut filter, expander, compressor, equalizer, autosetup), MIX A, MIX B





Instrument Input

Type

balanced

Connector

6.3mm jack

Gain range

–6 - 72 dB

Impedance

3900 Ω

Equivalent input noise

-96 dBV (A-weighted)

Max input level

6 dBV

Total harmonic distortion

0.002%

Frequency response

20 Hz - 20 kHz

Features

DSP (low-cut filter, expander, compressor, equalizer, autosetup), MIX A, MIX B

Aux Input

Type

line level, stereo

Connector

3.5mm jack

Equivalent input noise

–100 dBV (A-weighted)

Features

MIX A, MIX B

Speaker Output

Connector

2x 6.3mm jack (balanced), 1x 3.5mm jack (stereo)

Frequency response

20 Hz - 20 kHz

Max output level

13 dBV

Total harmonic distortion

0.002%

Impedance

201 kΩ (103 kΩ 3.5mm stereo jack)

Features

Mute, volume, map system volume controls

Headphone Output

Connector

1x 6.3mm jack (stereo), 1x 3.5mm jack (stereo)

Frequency response

20 Hz - 20 kHz

Max output level

6 dBV

Total harmonic distortion

0.002%

Impedance

37 Ω

Features

Mute, independent volume control, map system volume controls
